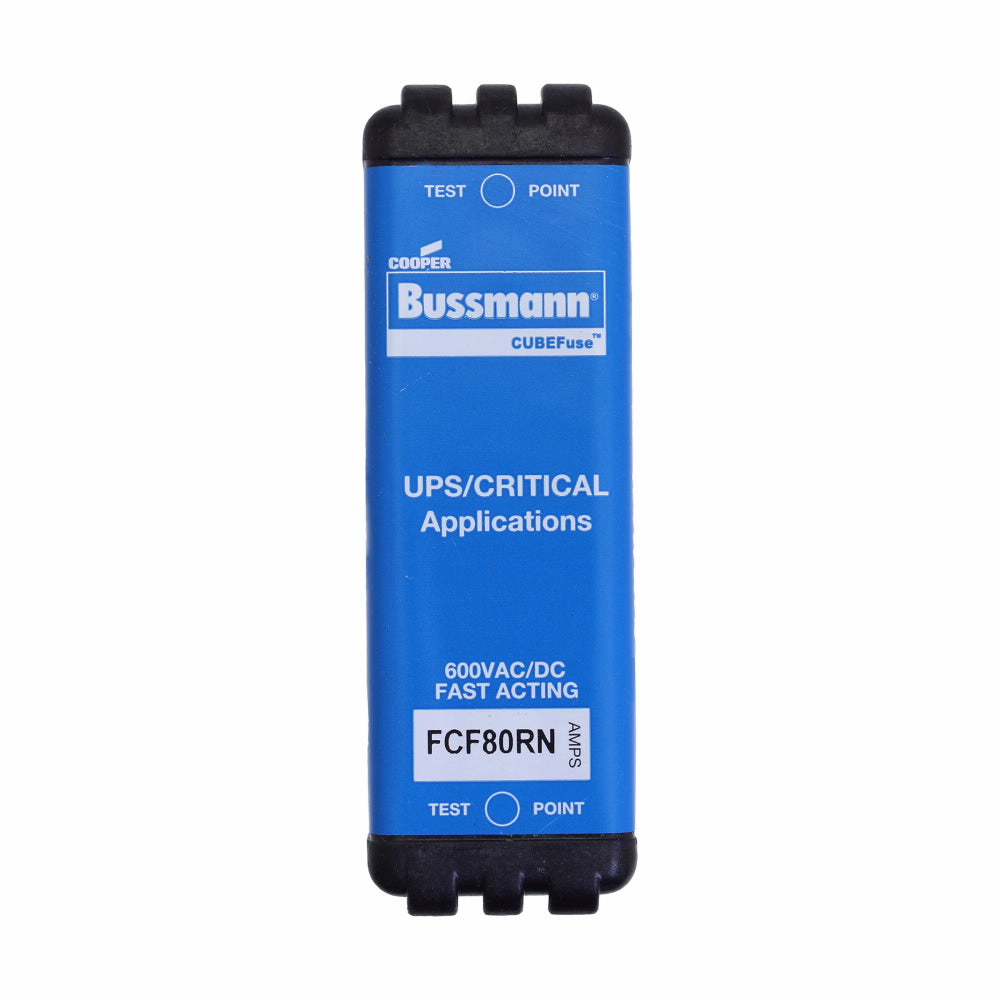

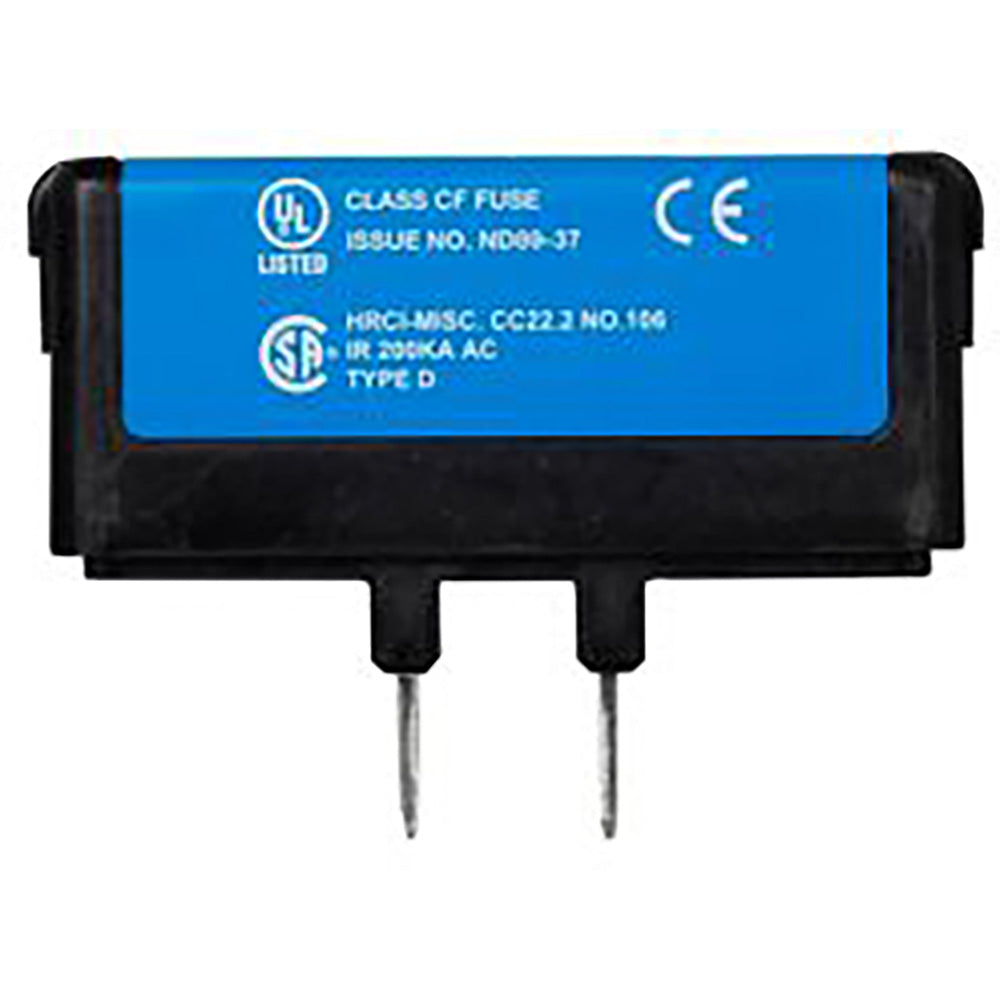

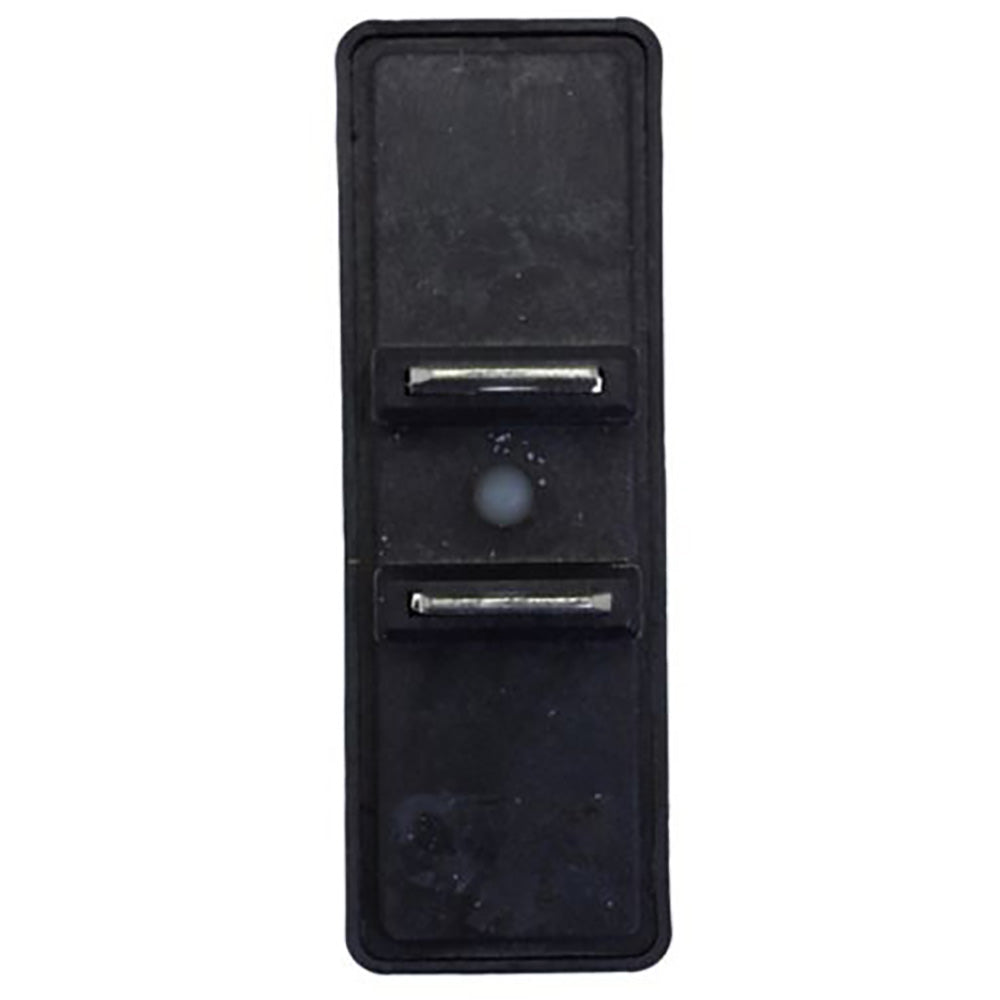

Bussmann FCF80RN - Class CF Fuse 80A 600V (200kA AIC)

Bussmann FCF80RN is a Class CF low-voltage fuse designed for industrial circuit protection applications. This 80A rated fuse operates at 600V AC/DC with a 200kA interrupting capacity, providing reliable overcurrent protection in demanding environments. The compact CUBEFuse design features finger-safe connections and measures 3.01" x 2.125" x 1" (76.5mm x 54mm x 25.4mm) with a fast-acting velocity characteristic for rapid response to fault conditions. Constructed to meet industrial standards, this fuse ensures safe operation in various electrical distribution systems including motor control centers, panelboards, and industrial machinery where robust circuit protection is required.

Key Features & Specifications

• Type: Class CF fast-acting low-voltage fuse with finger-safe connection
• Voltage Rating: 600V AC/DC
• Current Rating: 80A
• Dimensions: 3.01" L x 2.125" H x 1" W (76.5mm x 54mm x 25.4mm)
• Weight: 1.284 lb
• Standards: Industrial low-voltage fuse standards
• Applications: Industrial circuit protection, motor control centers, panelboards
• AIC rating: 200kA@600V
• Family: CUBEFuse
• Connection: Finger-Safe
• Velocity: Fast-Acting
• Class Rating: CF

Product Identification

• UPC: 051712362559
• GTIN: 00051712362559
