Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P
Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P

Square D FC34020 - Molded Case Circuit Breaker, 20A 480V 3P

Square D
Price
Save $-1,456.99
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

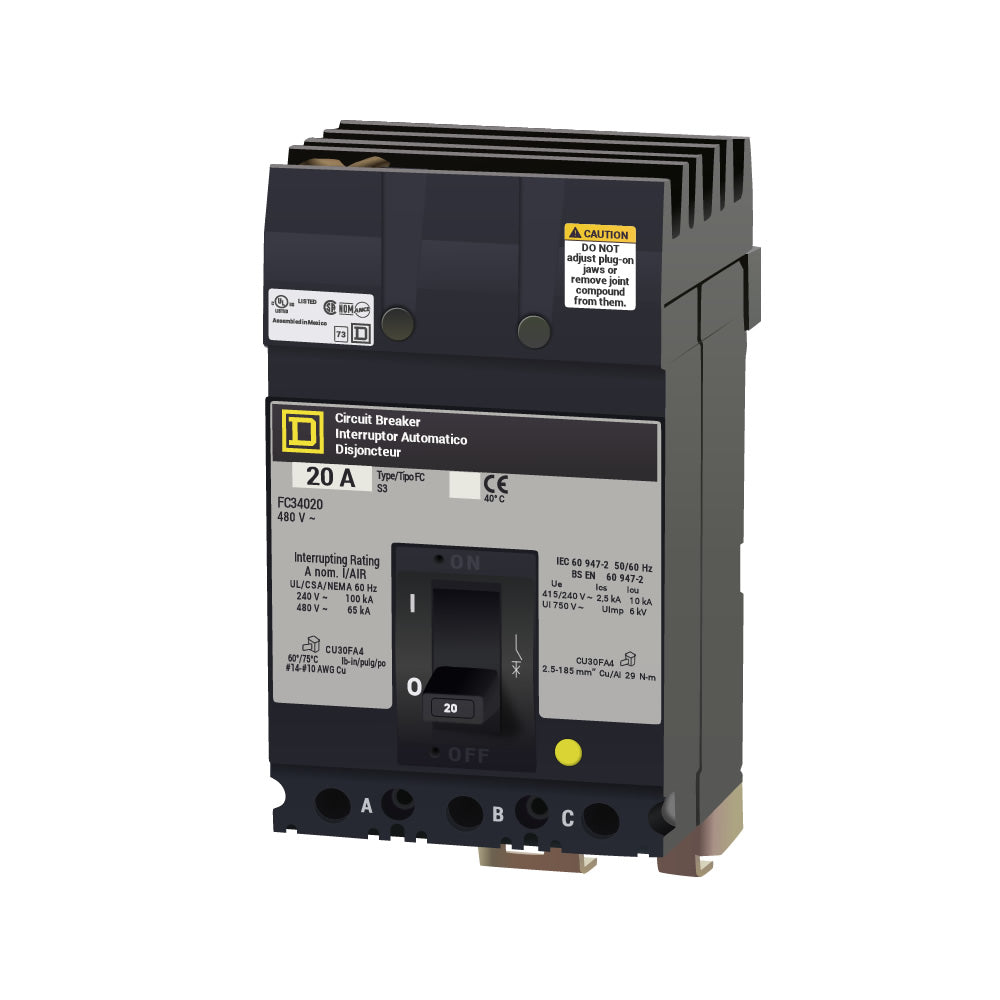

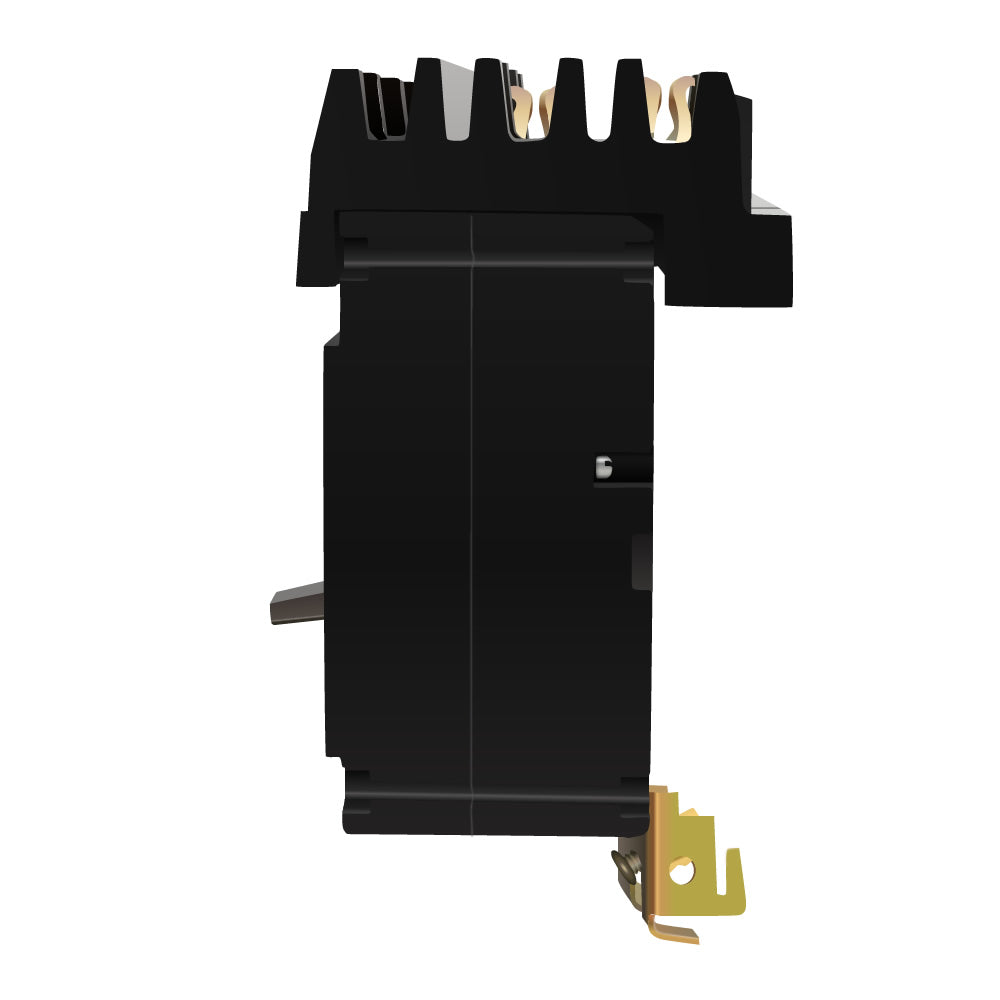

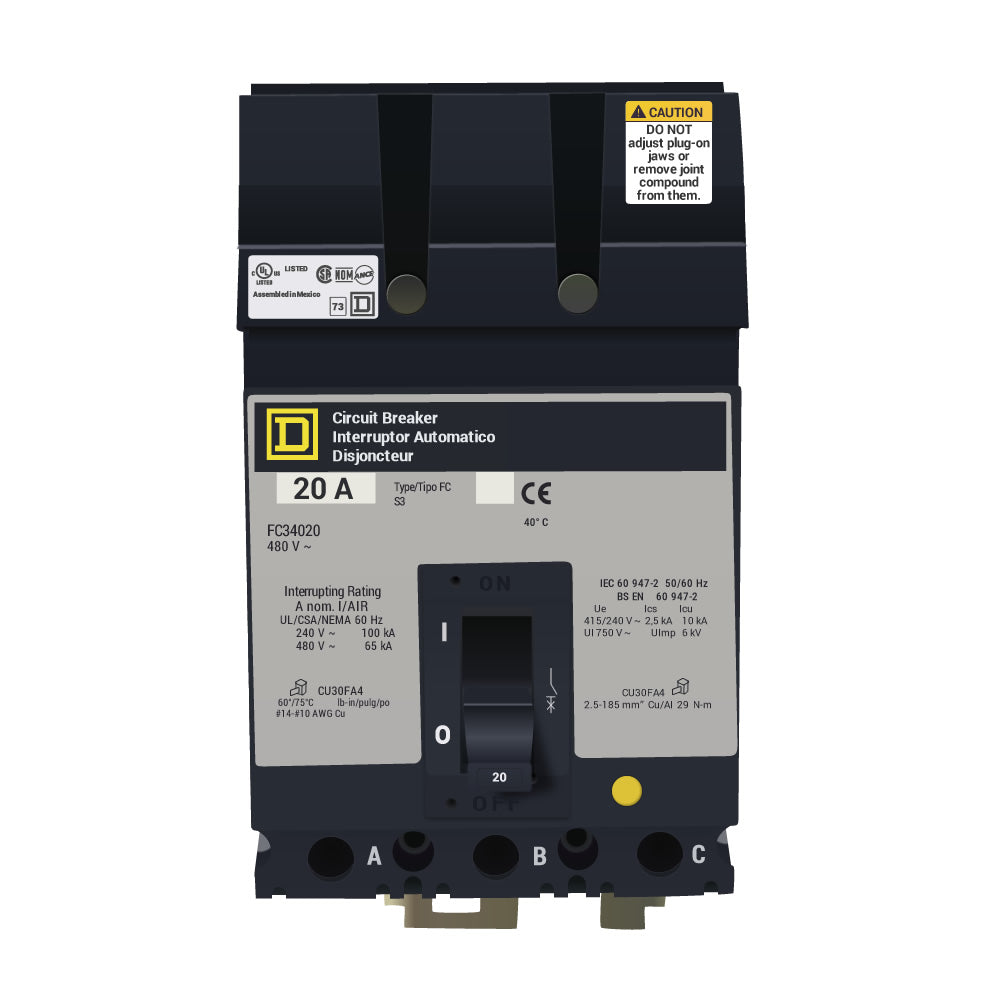

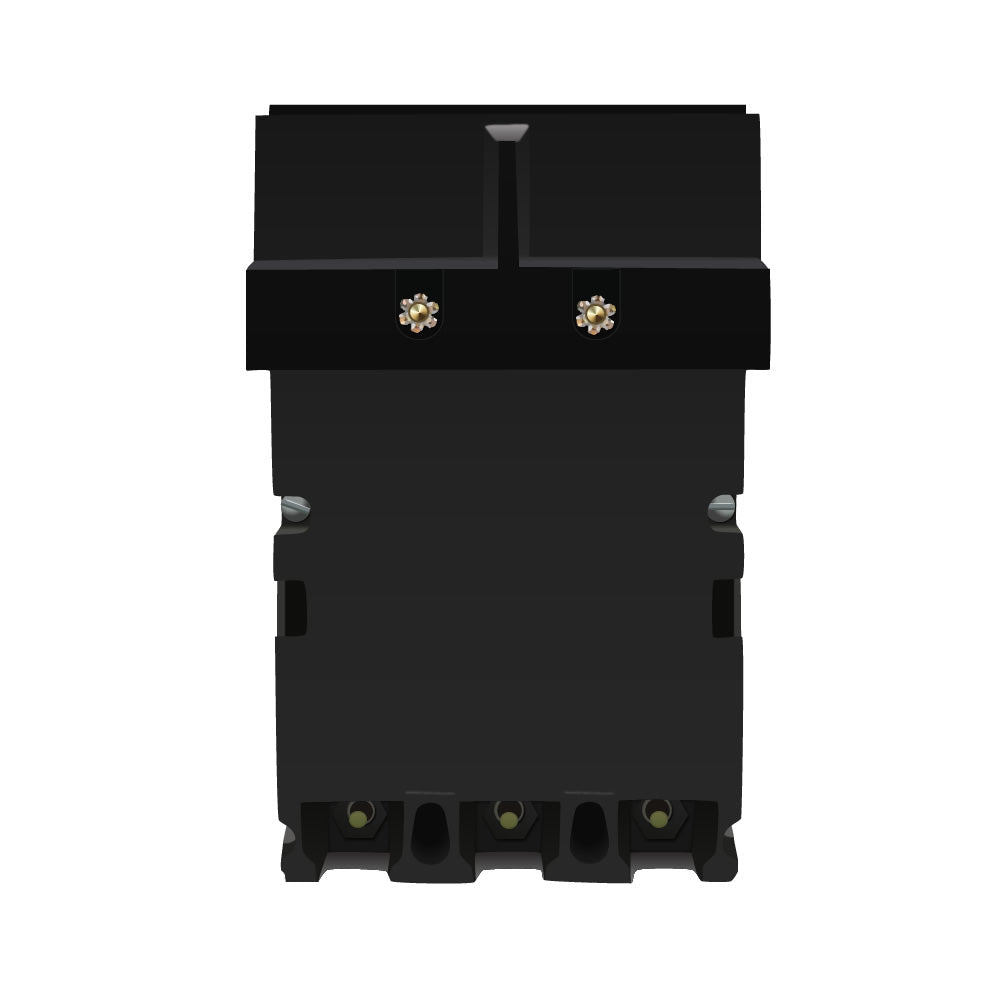

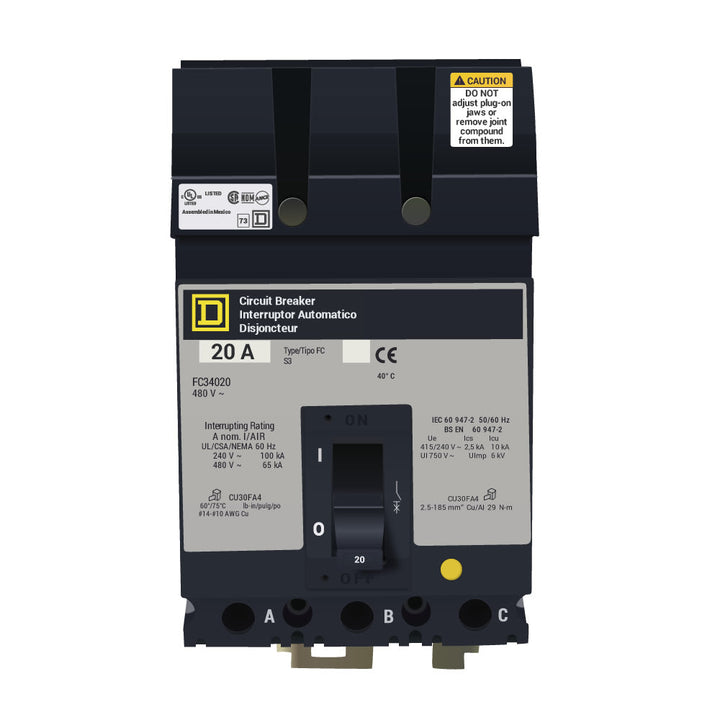

Square D FC34020 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 20A current rating and a 480V AC voltage rating, with a compact F-frame construction utilizing an I-Line style plug-in connection for simplified installation. This thermal magnetic breaker complies with industry standards for safety and performance, offering long-time and instantaneous (LI) trip functions. It is engineered for typical applications in commercial and industrial panelboards, motor control centers, and switchboards where a 65kA interrupting capacity at 480V is required, operating within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • Connection: I-Line Style Plug-In
  • AIC Rating: 65kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 6 lb
  • Family: I-Line
  • Item Subcategory: Molded Case


Product Identification
  • UPC: 785901031567
  • GTIN: 00785901031567
