Square D
Price
Save $1,060.76
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

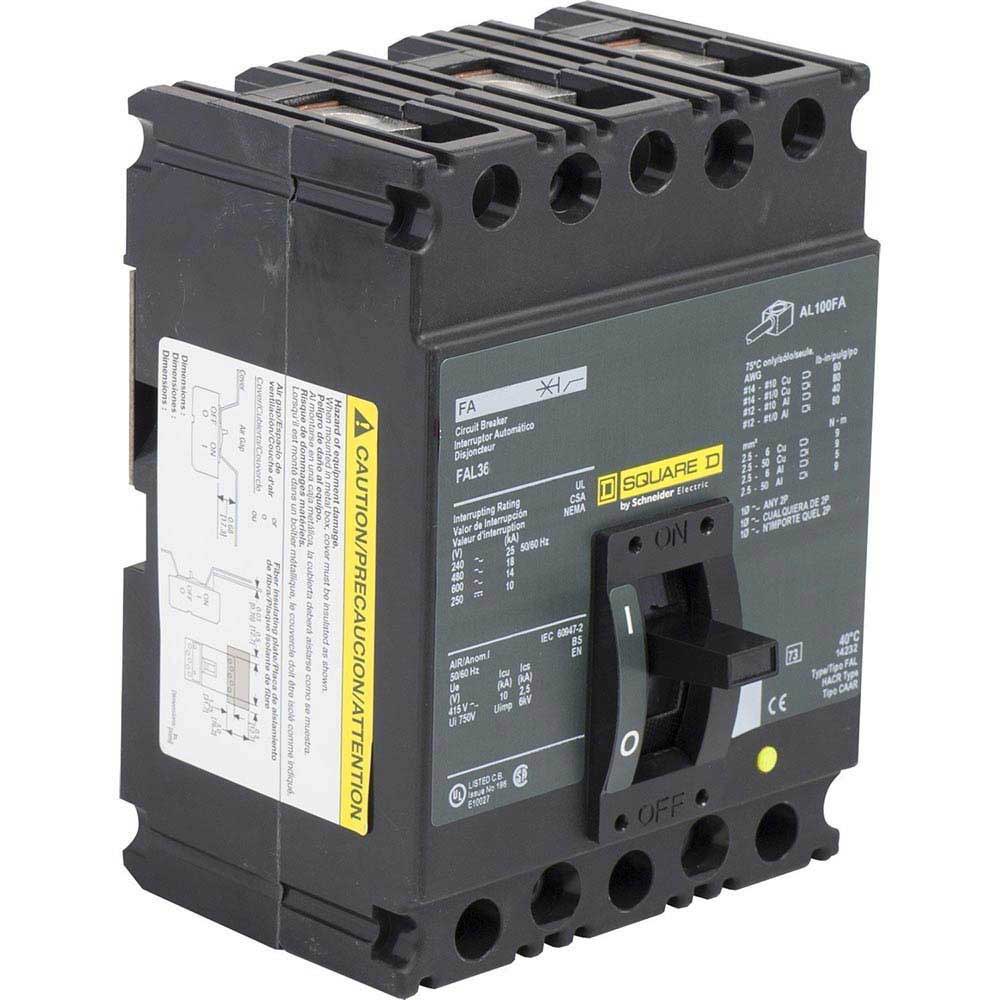

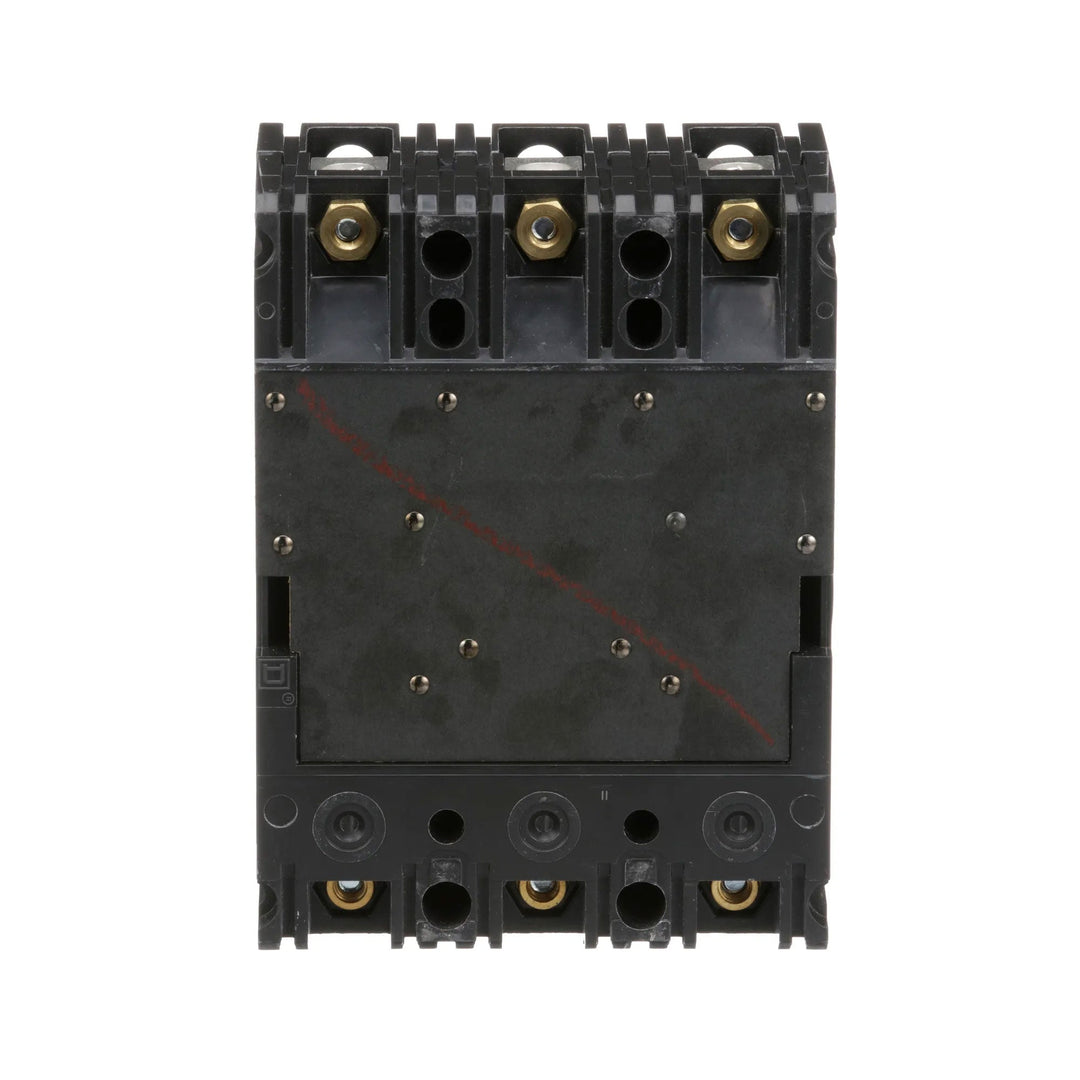

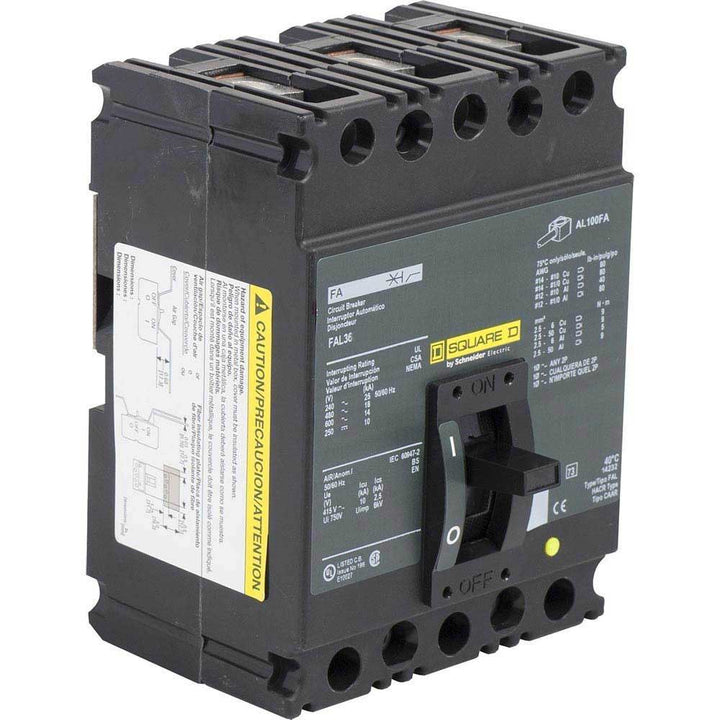

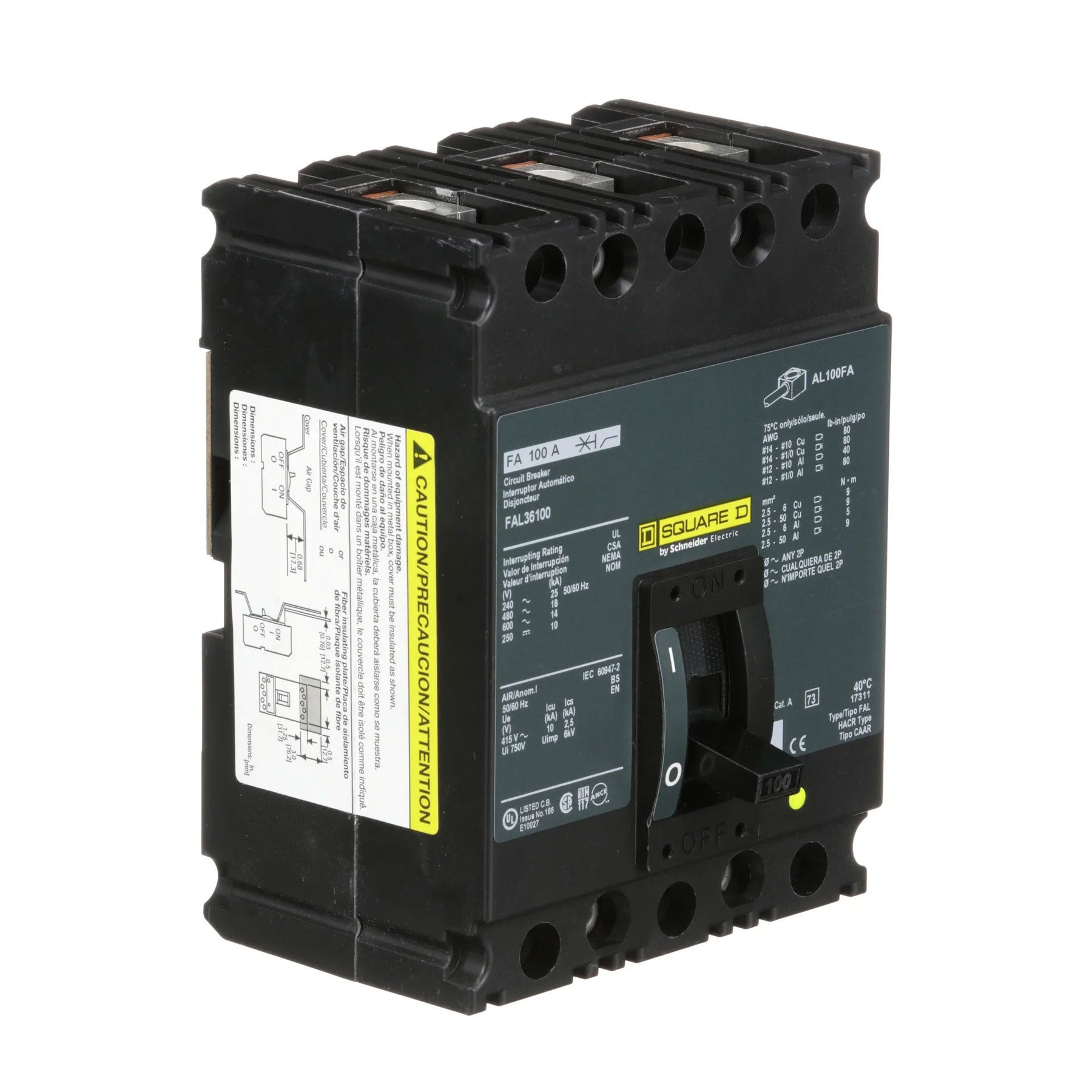

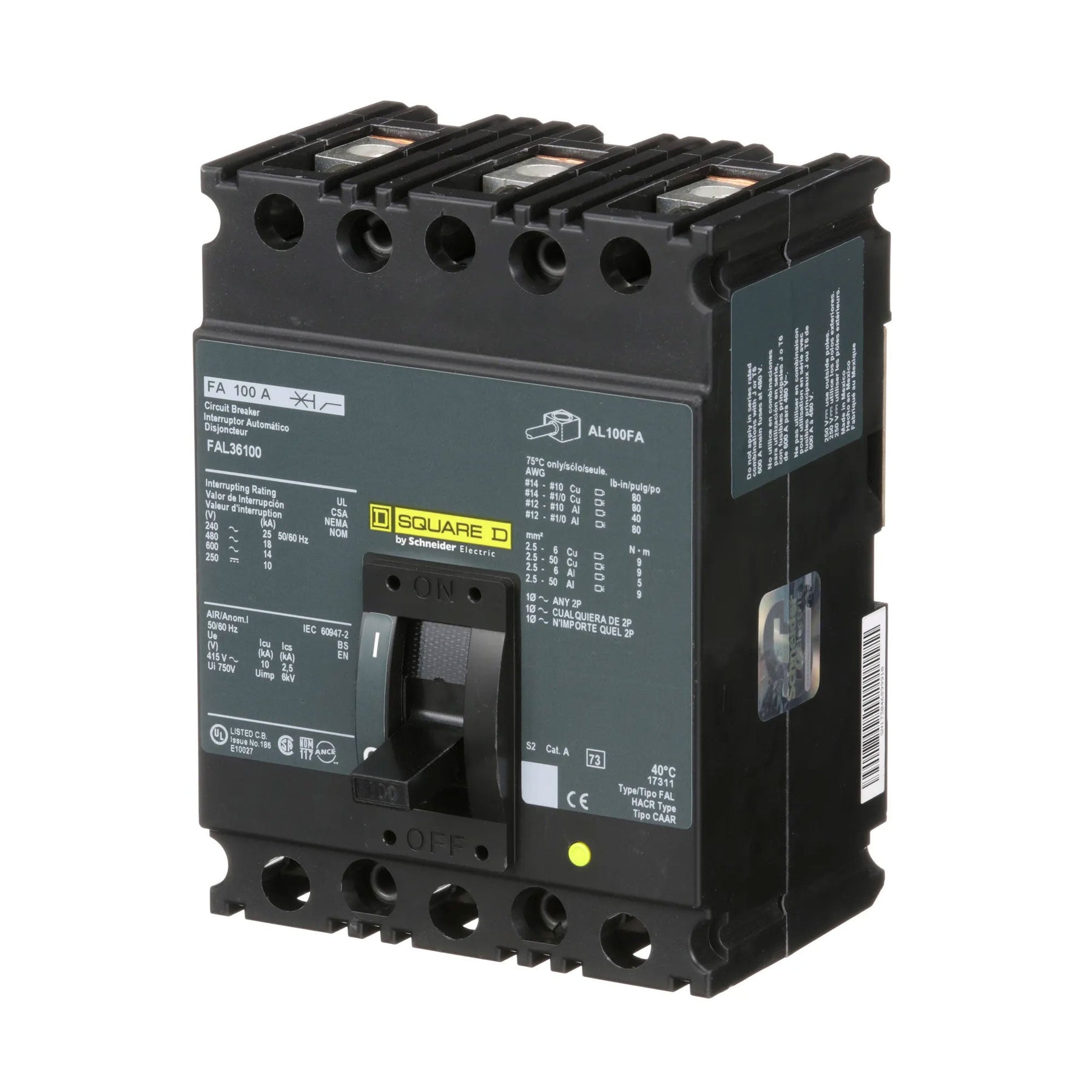

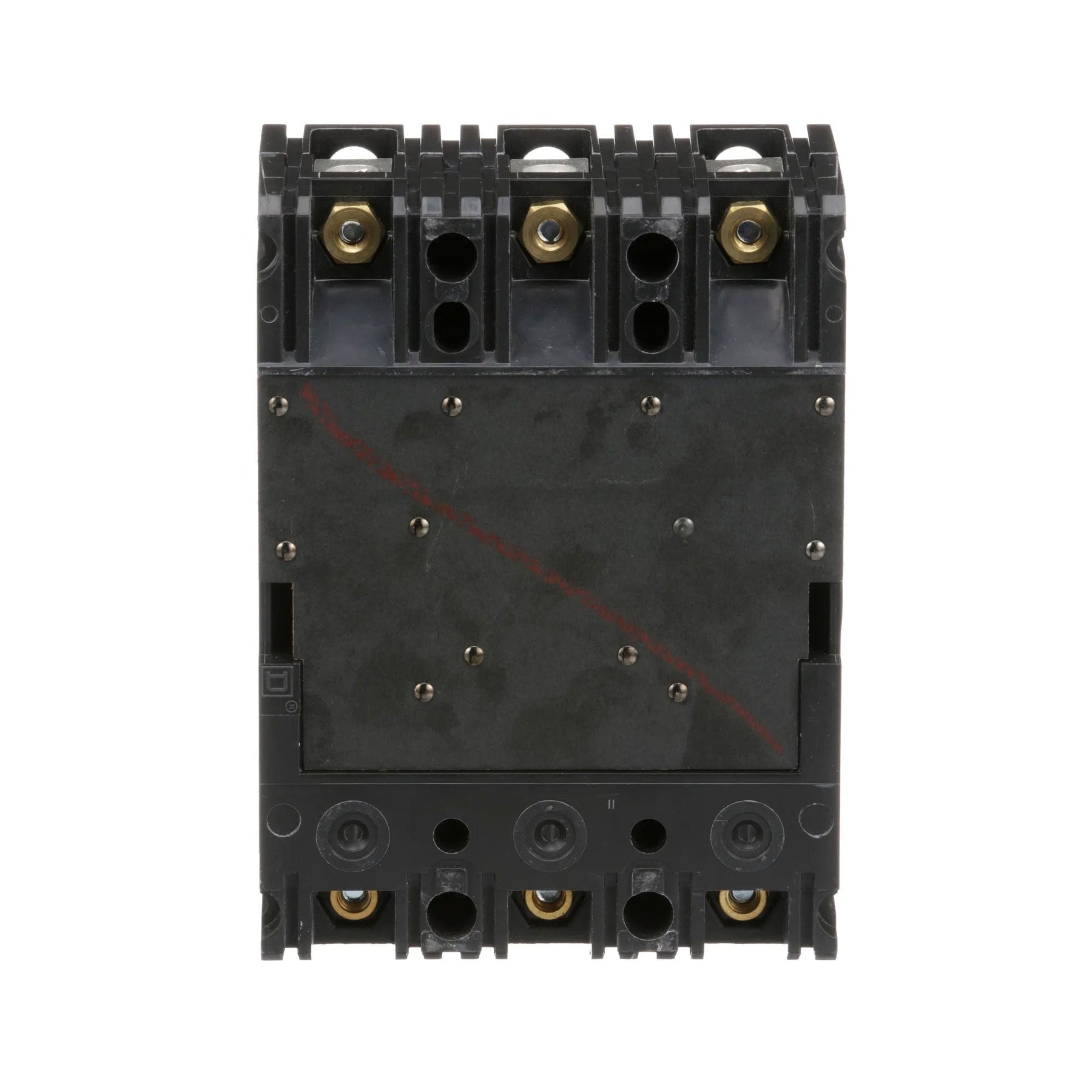

Square D FAL36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5 lb. The breaker is UL Listed, CSA, and IEC certified, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection. Its 18kA interrupting capacity at 480V and feed-thru connection make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, FAL Series
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Listed, CSA, IEC
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Weight: 5 lb


Product Identification
  • UPC: 785901423782
  • GTIN: 00785901423782
