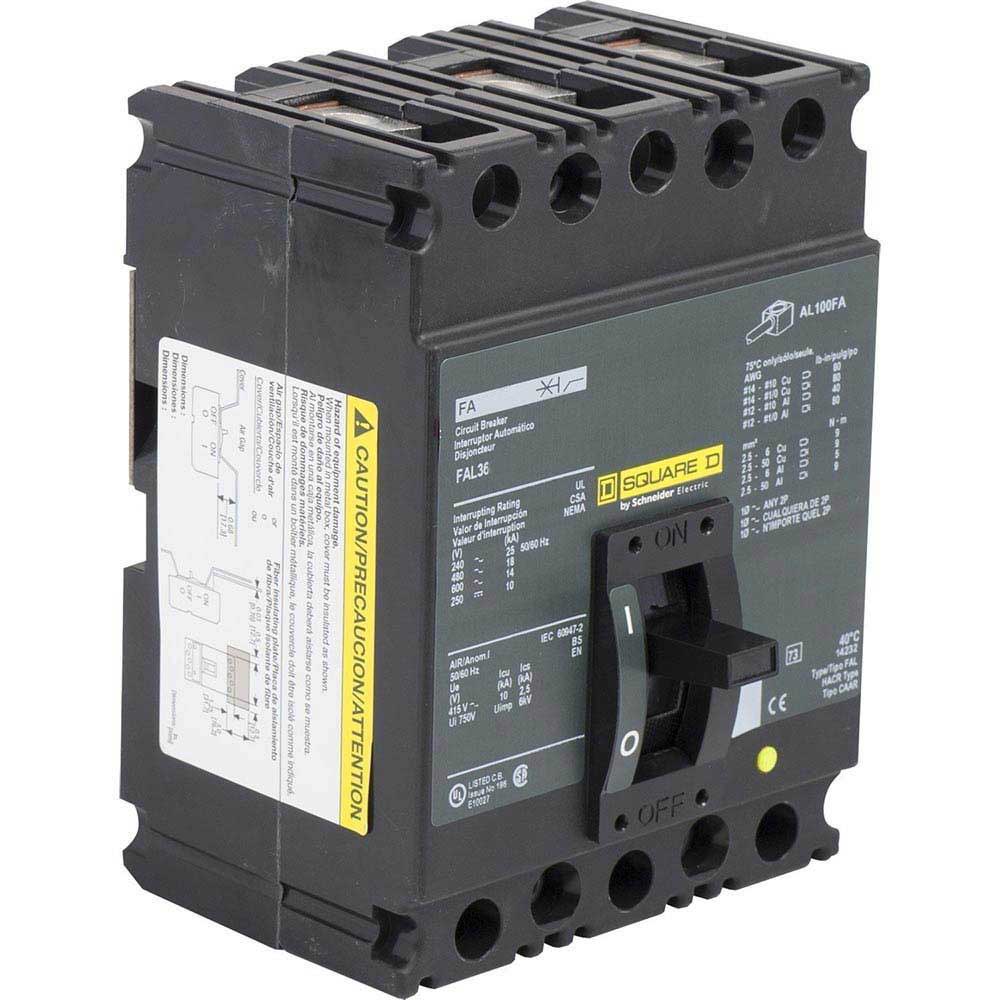

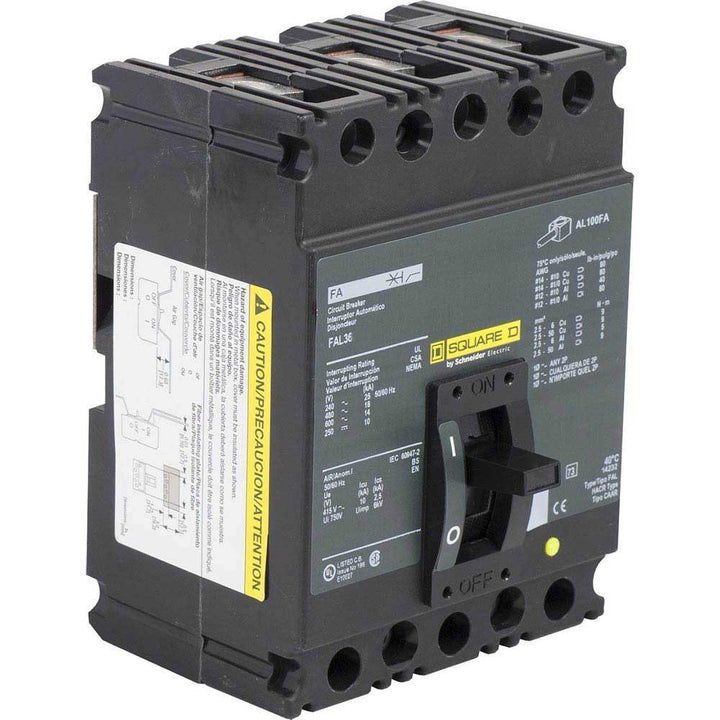

Square D FAL36060 - Molded Case Circuit Breaker 60A 600V 3P (18kA AIC)
Square D FAL36060 - Molded Case Circuit Breaker 60A 600V 3P (18kA AIC)

Square D FAL36060 - Molded Case Circuit Breaker 60A 600V 3P (18kA AIC)

Square D
Price
Save $718.10
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FAL36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 60A continuous current rating, housed within a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.817 lb. The breaker is UL and CSA certified, ensuring compliance with North American safety standards, and its 18kA interrupting rating at 480V AC makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA
  • Applications: Industrial power distribution, panelboard protection
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 4.817 lb


Product Identification
  • UPC: 785901423720
  • GTIN: 00785901423720
