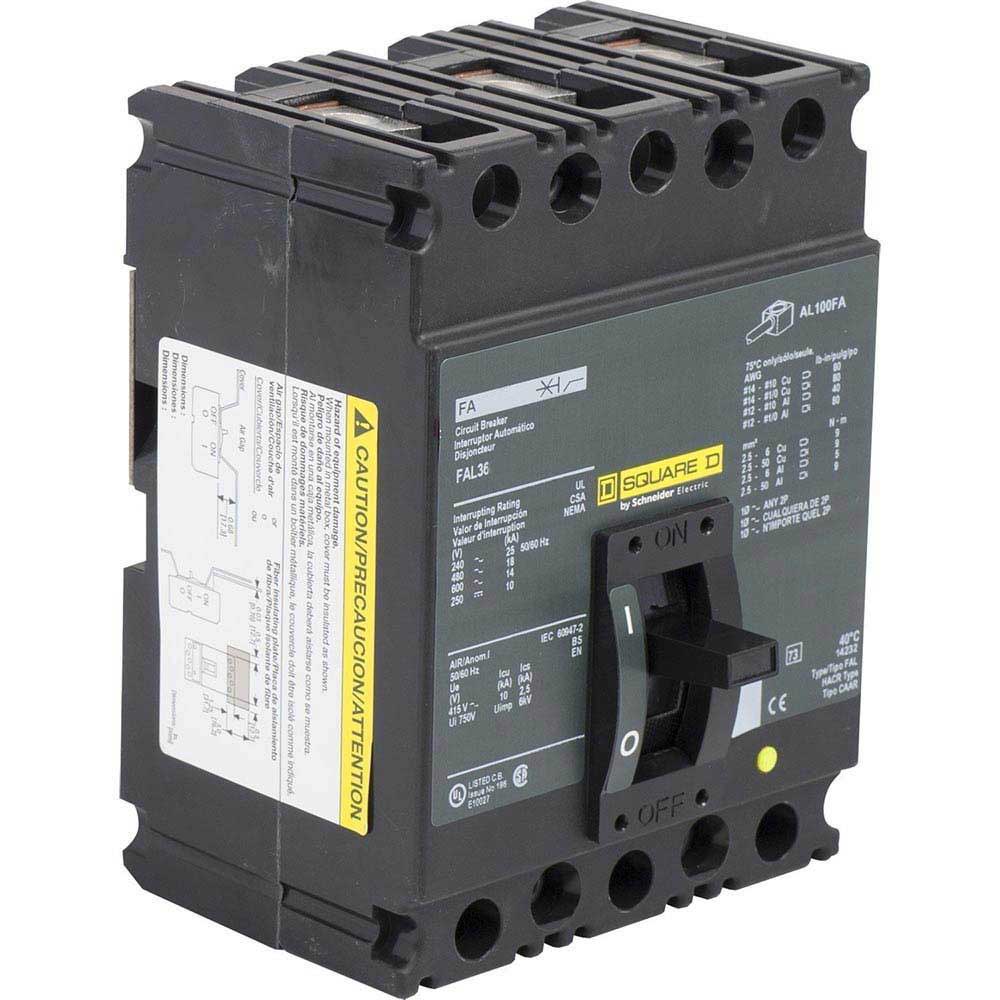

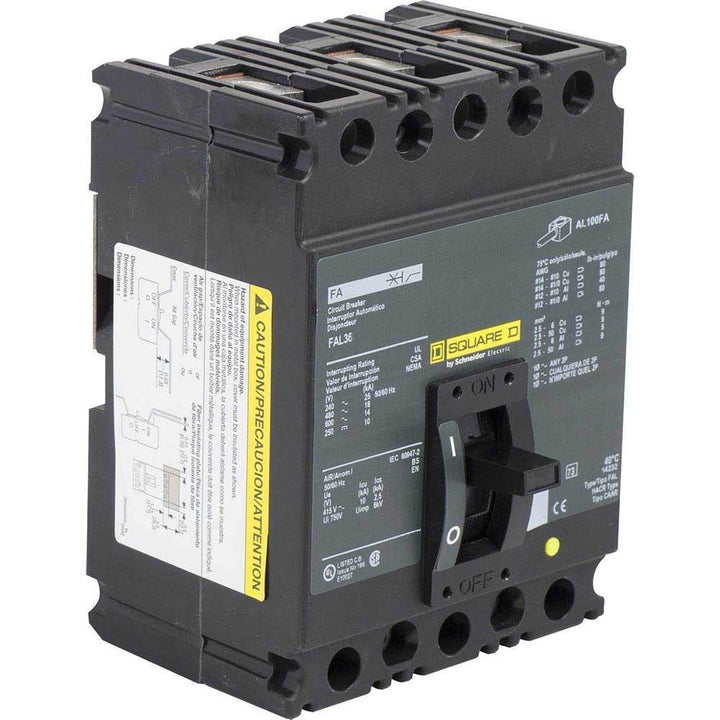

Square D FAL36050 - Molded Case Circuit Breaker 50A 600V 3P
Square D FAL36050 - Molded Case Circuit Breaker 50A 600V 3P

Square D FAL36050 - Molded Case Circuit Breaker 50A 600V 3P

Square D
Price
Save $844.91
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D FAL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.09 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers an interrupting capacity of 18kA at 480V AC. It is certified to UL and CSA standards for safety and performance compliance, making it suitable for installation in motor control centers, panelboards, and switchboards as a feed-thru device.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA Certified
  • Applications: Industrial Power Distribution, Motor Control Centers, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: F Frame
  • Weight: 5.09 lb


Product Identification
  • UPC: 785901423706
  • GTIN: 00785901423706
