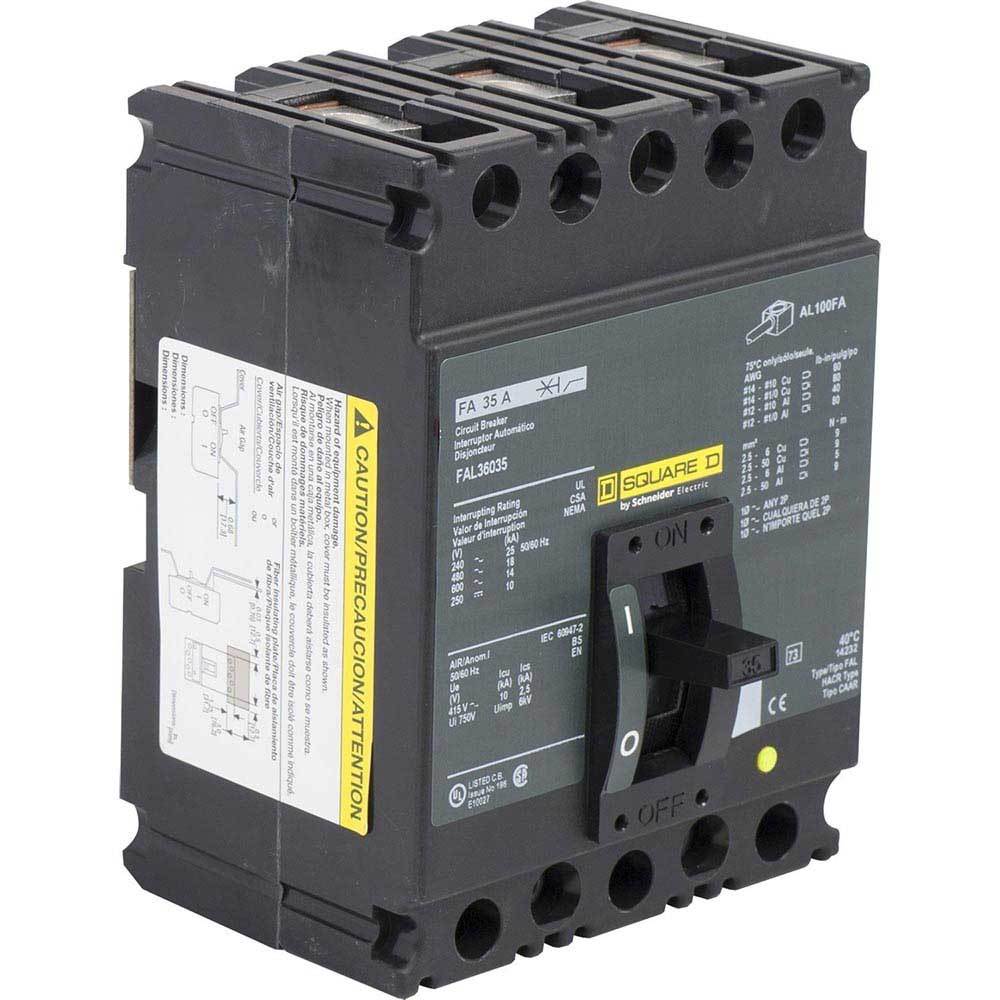

Square D FAL36035 - Molded Case Circuit Breaker 35A 600V 3P
Square D FAL36035 - Molded Case Circuit Breaker 35A 600V 3P

Square D FAL36035 - Molded Case Circuit Breaker 35A 600V 3P

Square D
Price
Save $-861.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL36035 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 35A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.621 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is CSA and UL listed, and offers an interrupting capacity of 18kA at 480V AC. Its feed-thru connection and compatibility with AWG 14 to 1/0 copper or aluminum conductors make it suitable for a range of panelboard and switchgear applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, FAL Series
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Weight: 4.621 lb
  • Standards: CSA-UL Listed
  • Applications: Industrial Power Distribution, Panelboards, Switchgear
  • Phase: 3
  • Poles: 3
  • Connection: Feed-Thru
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminum)
  • AIC Rating: 18kA @ 480V AC
  • Frame Size: F Frame
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Protection: Thermal Magnetic


Product Identification
  • UPC: 785901529743
  • GTIN: 00785901529743
