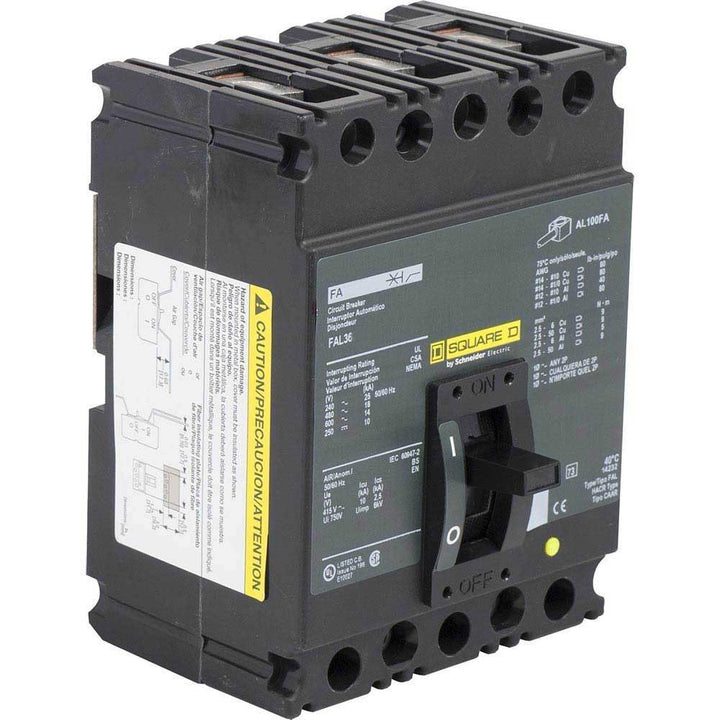

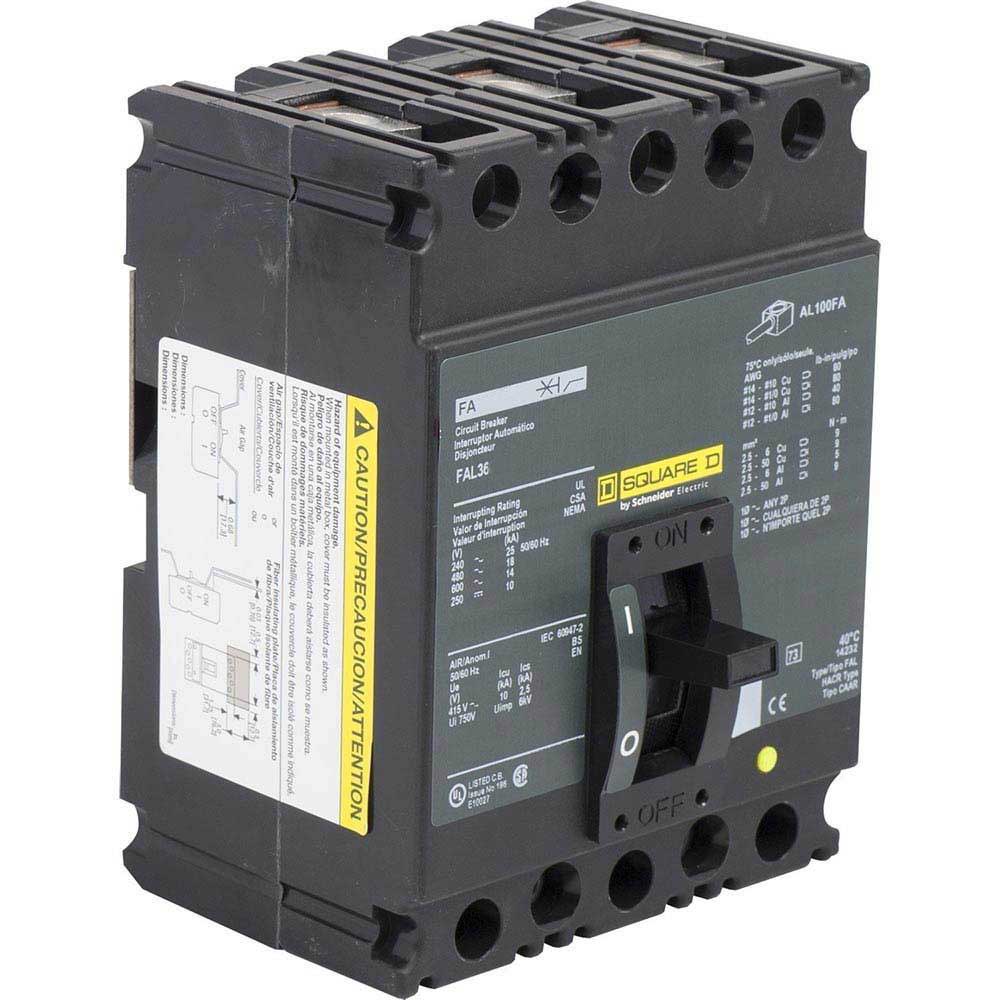

Square D FAL36030 - Molded Case Circuit Breaker, 30A 3P 600V
Square D FAL36030 - Molded Case Circuit Breaker, 30A 3P 600V

Square D FAL36030 - Molded Case Circuit Breaker, 30A 3P 600V

Square D
Price
Save $848.86
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Square D FAL36030 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.989 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is constructed for feed-thru connection, accepting 12-4 AWG aluminum or 14-4 AWG copper conductors. It is engineered for compliance with industry standards, offering an interrupting capacity of 18kA at 480V AC for robust protection in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Weight: 4.989 lb
  • Standards: Industry Standard Compliance
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 30A
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Wire Size: 12-4 AWG (Aluminum), 14-4 AWG (Copper)


Product Identification
  • UPC: 078590142362
  • GTIN: 00785901423621
