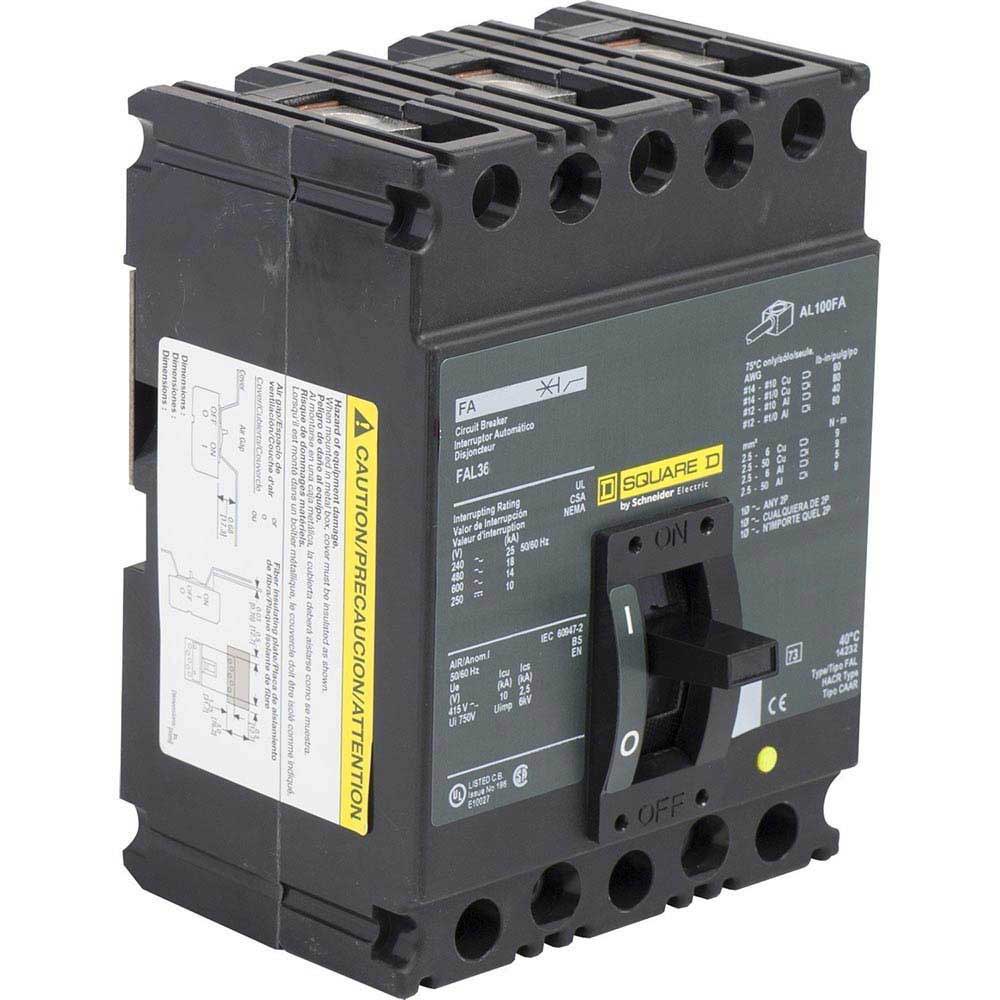

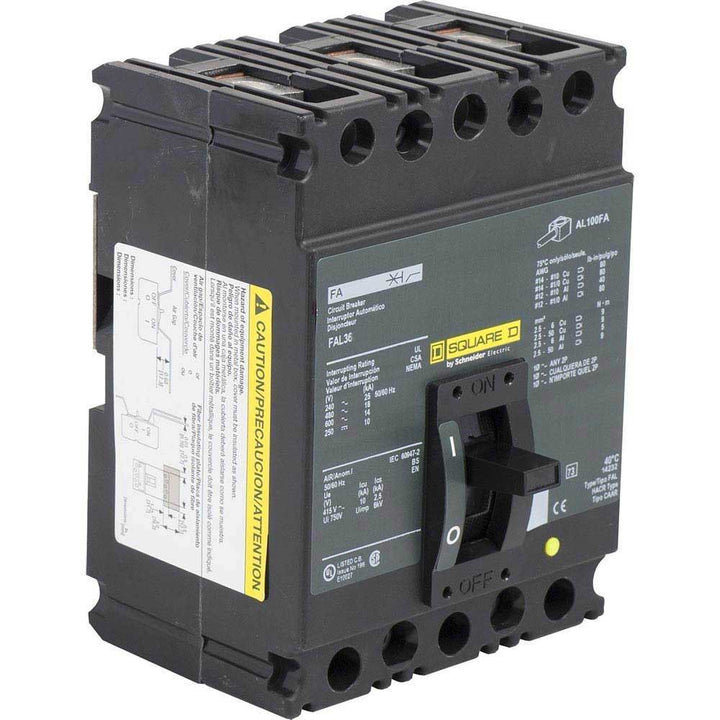

Square D FAL36020 - Molded Case Circuit Breaker 20A 600V 3P
Square D FAL36020 - Molded Case Circuit Breaker 20A 600V 3P

Square D FAL36020 - Molded Case Circuit Breaker 20A 600V 3P

Square D
Price
Save $844.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL36020 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V voltage rating, with a compact F-frame construction measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and a weight of 4.93 lb. The breaker utilizes a thermal-magnetic trip unit providing Long-Time and Instantaneous (LI) protection functions and is rated for an interrupting capacity of 18kA at 480V. Its feed-thru connection and three-pole configuration make it suitable for protecting motor circuits and branch feeders in industrial panels and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Weight: 4.93 lb
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC Rating: 18kA @ 480V


Product Identification
  • UPC: 078590142358
  • GTIN: 00785901423584
