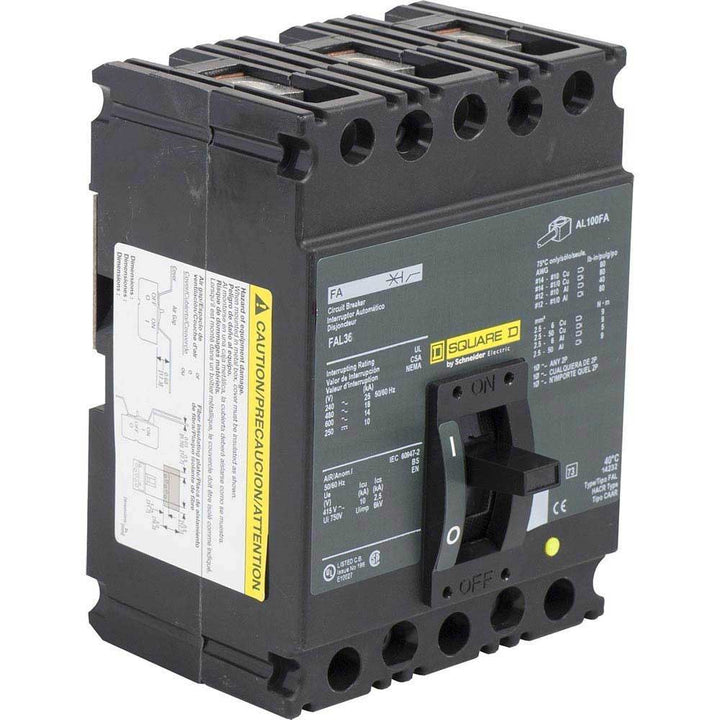

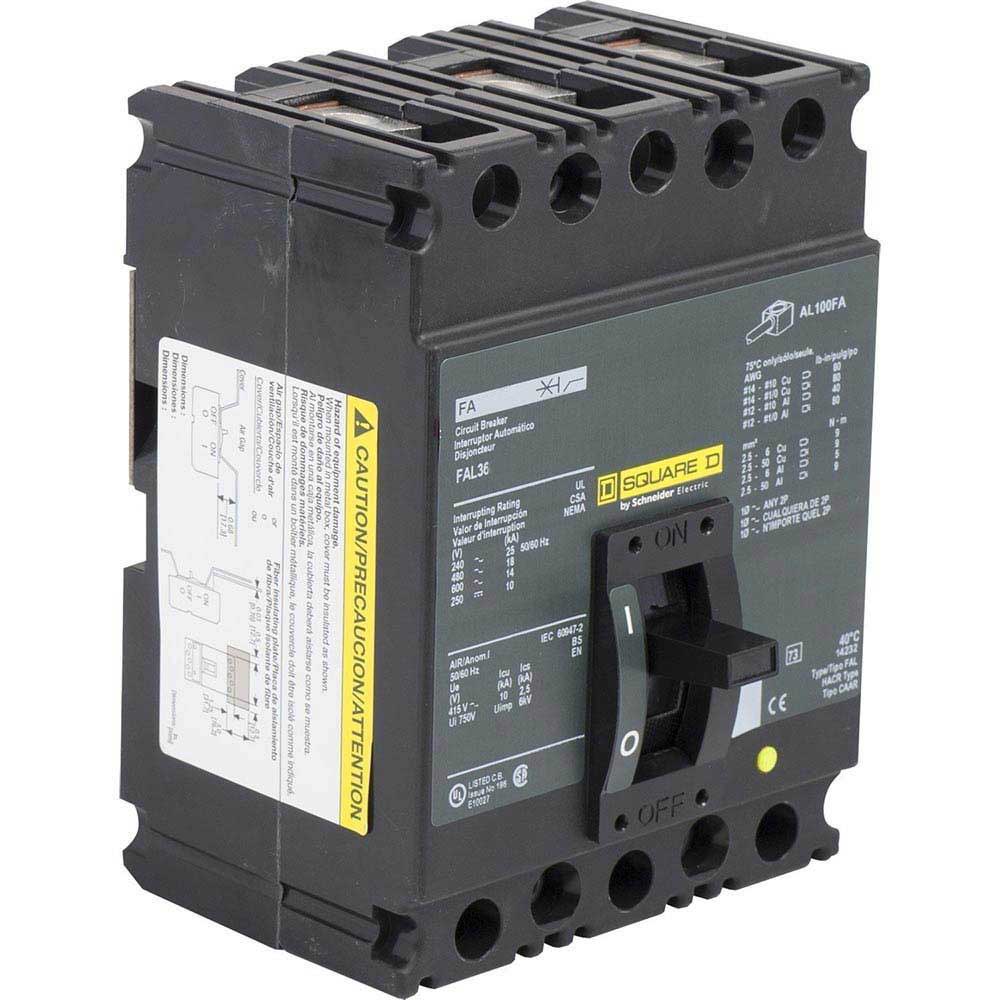

Square D FAL36015 - Molded Case Circuit Breaker 15A 600V 3P
Square D FAL36015 - Molded Case Circuit Breaker 15A 600V 3P

Square D FAL36015 - Molded Case Circuit Breaker 15A 600V 3P

Square D
Price
Save $844.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL36015 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.76 lb. The breaker is UL and CSA certified, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection. Its 18kA interrupting rating at 480V AC and feed-thru connection make it suitable for protecting feeders, motors, and branch circuits in commercial and industrial panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA Certified
  • Applications: Industrial Feeder, Motor, and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Screw
  • Standards: UL 489, CSA C22.2 No. 5
  • Weight: 4.76 lb


Product Identification
  • UPC: 785901423546
  • GTIN: 00785901423546
