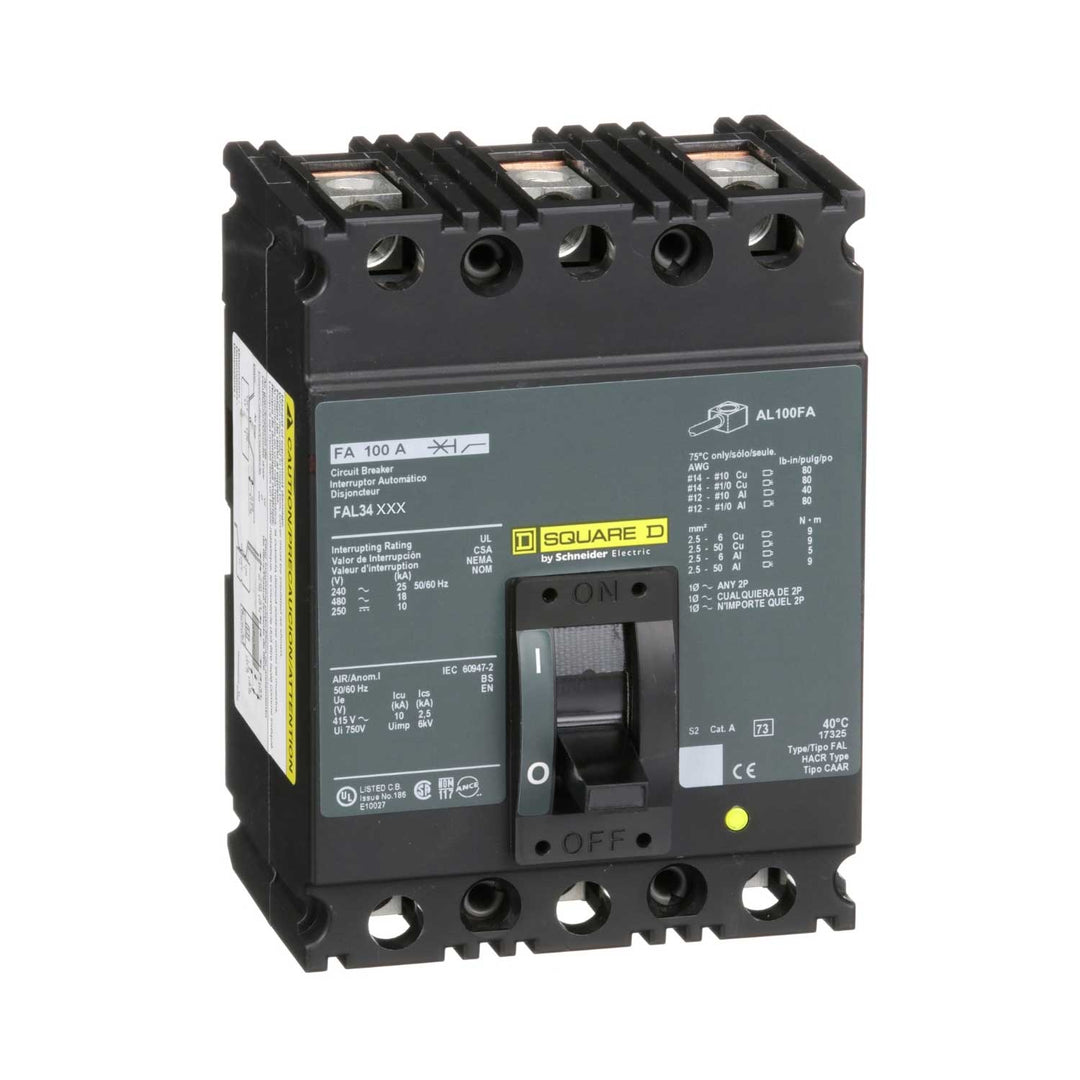

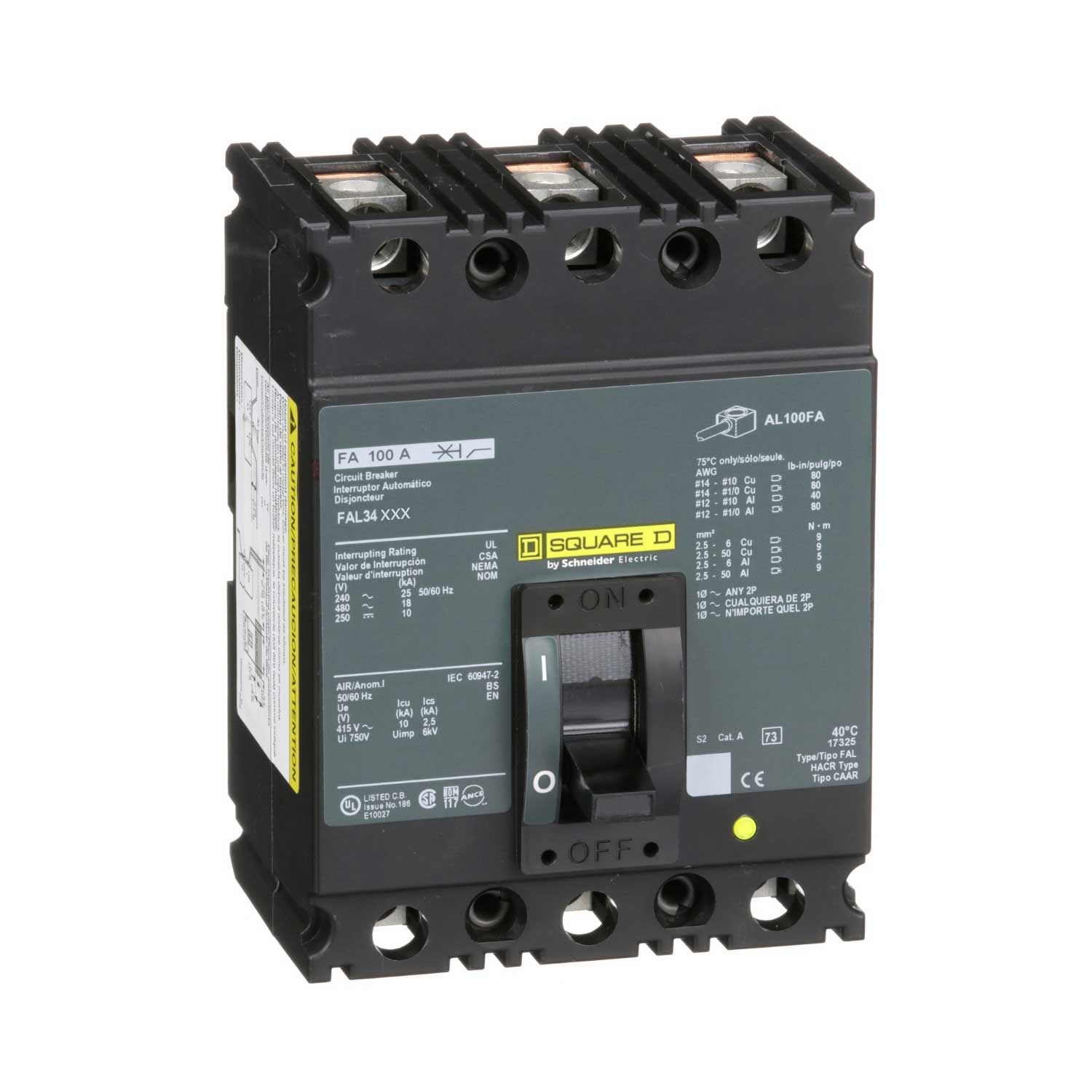

Square D FAL34100 - Molded Case Circuit Breaker 100A 480V 3P
Square D FAL34100 - Molded Case Circuit Breaker 100A 480V 3P

Square D FAL34100 - Molded Case Circuit Breaker 100A 480V 3P

Square D
Price
Save $1,104.73
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Square D FAL34100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.901 lb. This thermal magnetic breaker complies with industry standards for safety and performance, utilizing a feed-thru connection and is engineered for demanding applications such as panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: Industry Standard
  • Applications: Industrial Power Distribution, Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Wire Size: 12-1/0 AWG (Aluminum), 14-1/0 AWG (Copper)
  • Weight: 4.901 lb


Product Identification
  • UPC: 785901423447
  • GTIN: 00785901423447
