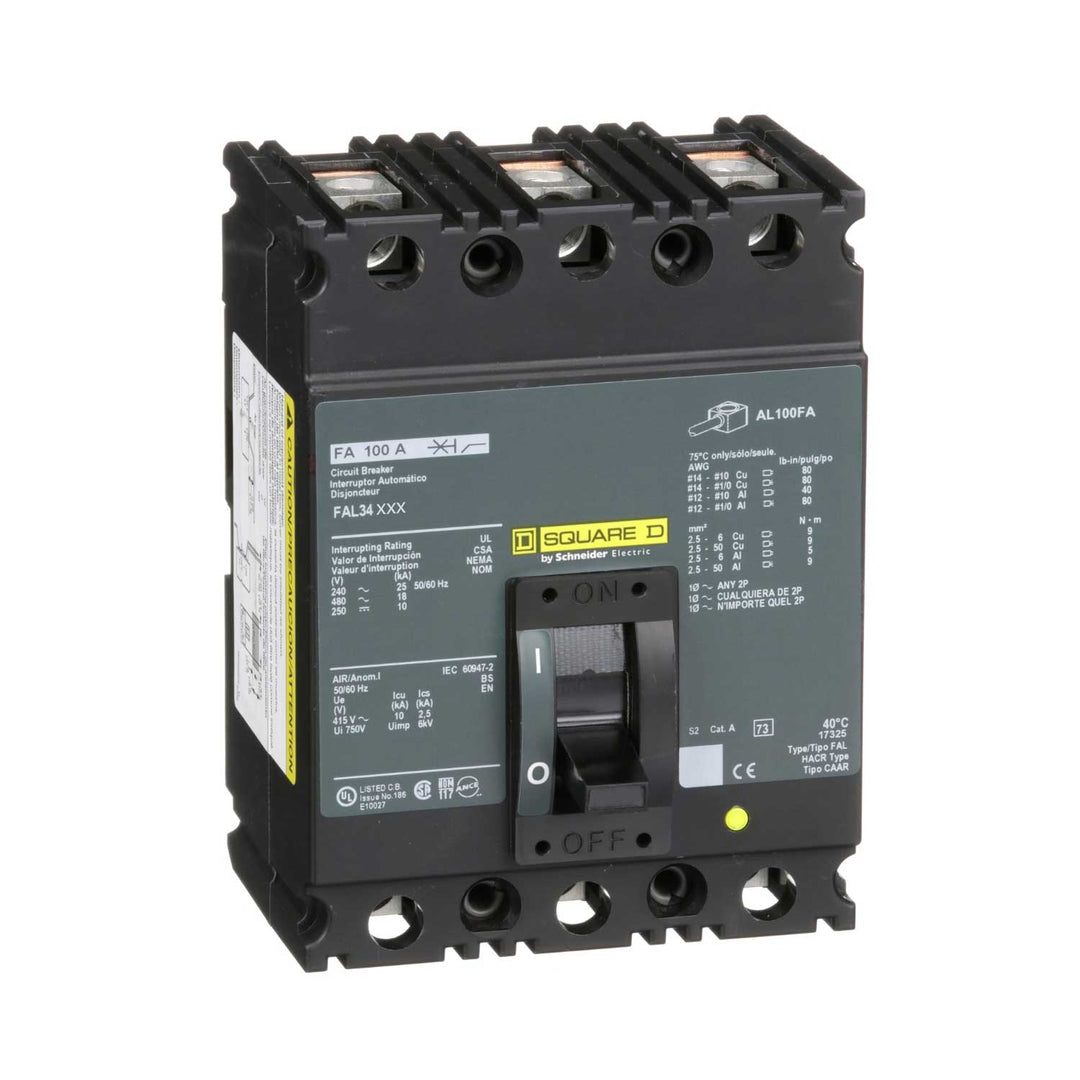

Square D FAL34050 - Molded Case Circuit Breaker 50A 480V 3P
Square D FAL34050 - Molded Case Circuit Breaker 50A 480V 3P

Square D FAL34050 - Molded Case Circuit Breaker 50A 480V 3P

Square D
Price
Save $371.43
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

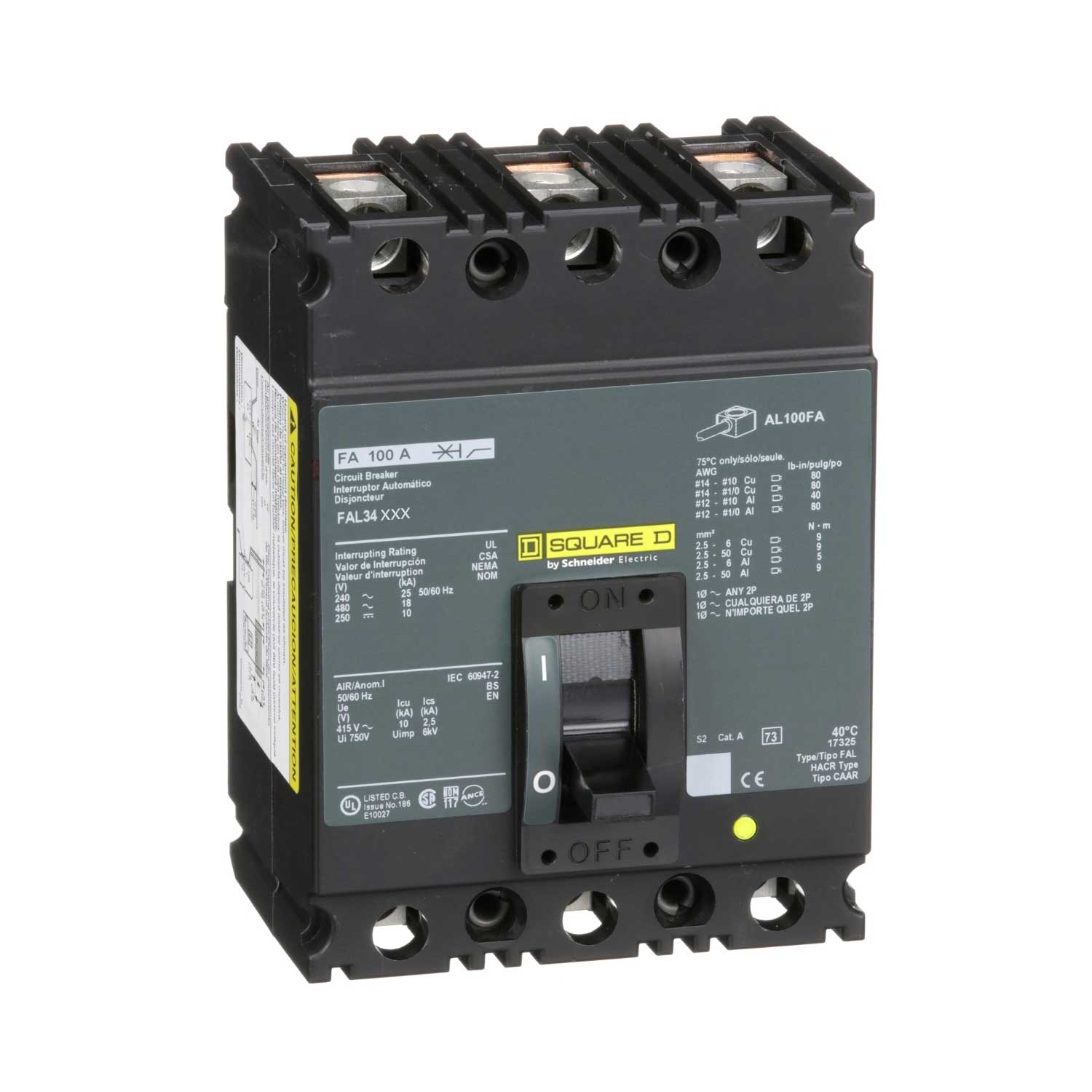

Square D FAL34050 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.031 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers an interrupting capacity of 18kA at 480V. Its feed-thru connection and robust construction make it suitable for integration into motor control centers, panelboards, and switchboards requiring dependable circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Weight: 5.031 lb
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • AIC Rating: 18kA @ 480V
  • Family: FAL Series


Product Identification
  • UPC: 785901423362
  • GTIN: 00785901423362
