Square D FAL34045 - Molded Case Circuit Breaker 45A 480V 3P
Square D FAL34045 - Molded Case Circuit Breaker 45A 480V 3P

Square D FAL34045 - Molded Case Circuit Breaker 45A 480V 3P

Square D
Price
Save $544.13
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

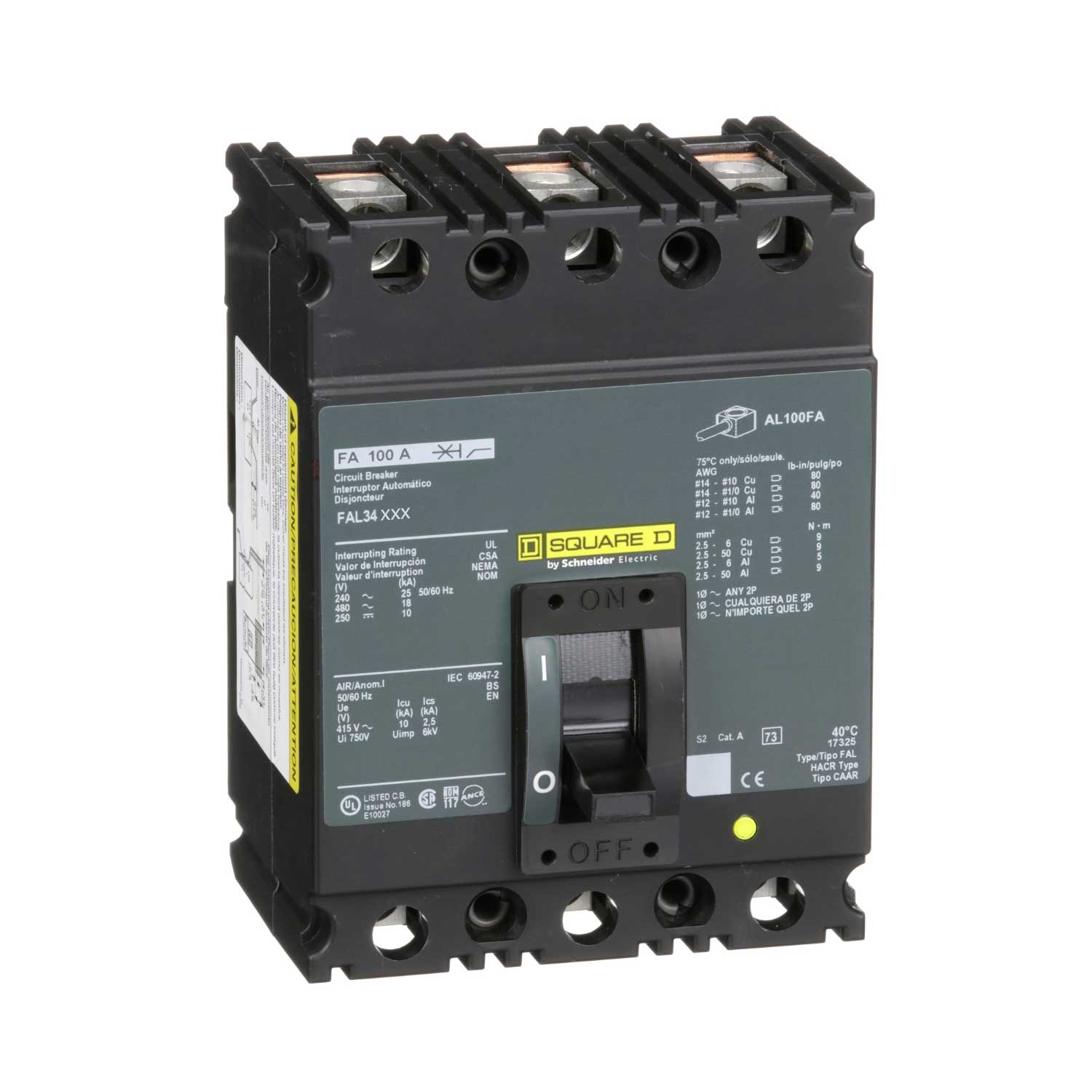

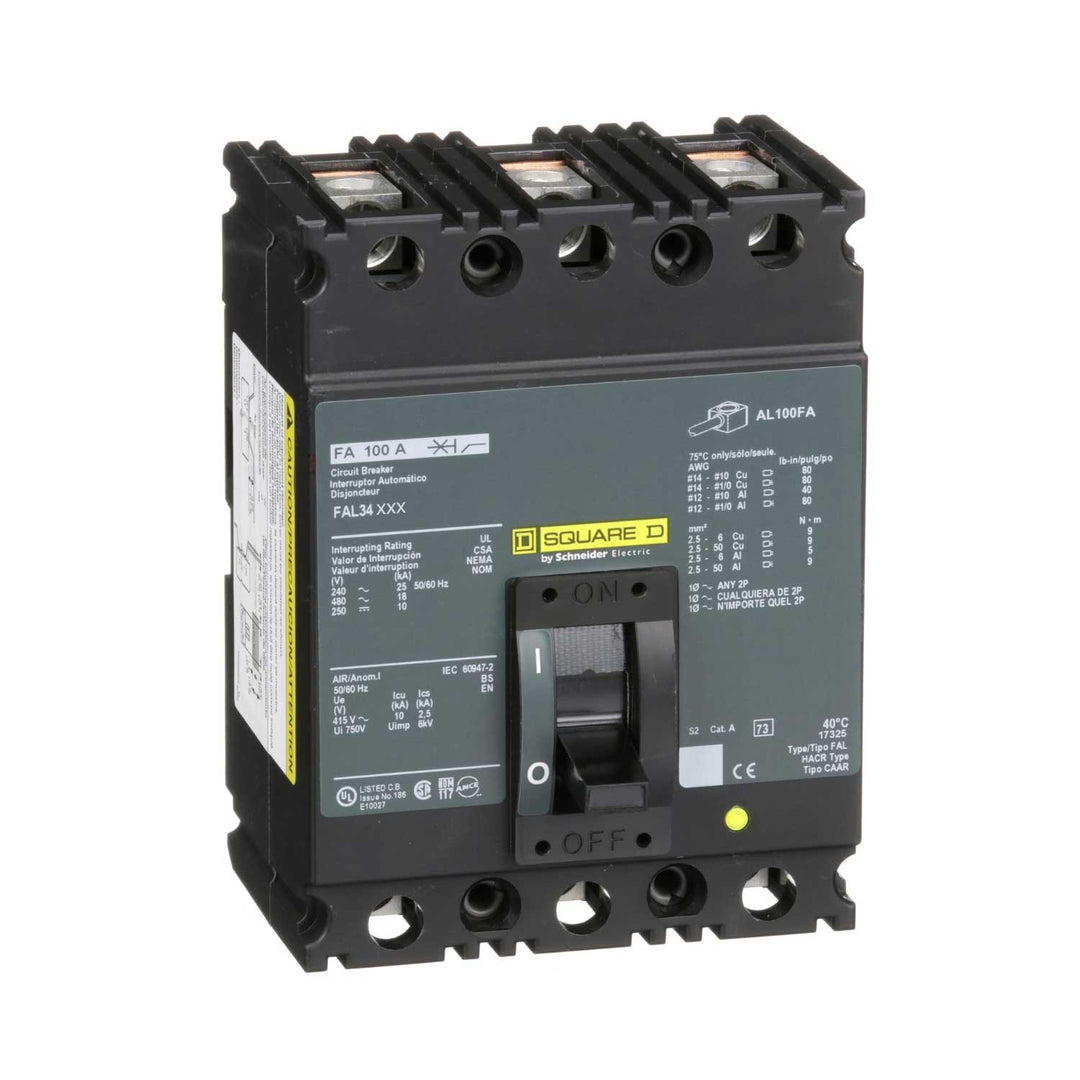

Square D FAL34045 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. It features a 480V AC voltage rating and a 45A current rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.641 lb. The breaker is UL LISTED and utilizes a thermal magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection. Its 3-pole, feed-thru configuration with an 18kA interrupting rating at 480V makes it suitable for protecting three-phase motor circuits and feeder lines in commercial and industrial panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 45A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Applications: Industrial power distribution, motor protection, feeder protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole, Feed-Thru Connection
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: UL LISTED
  • Family: FAL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901529705
  • GTIN: 00785901529705
