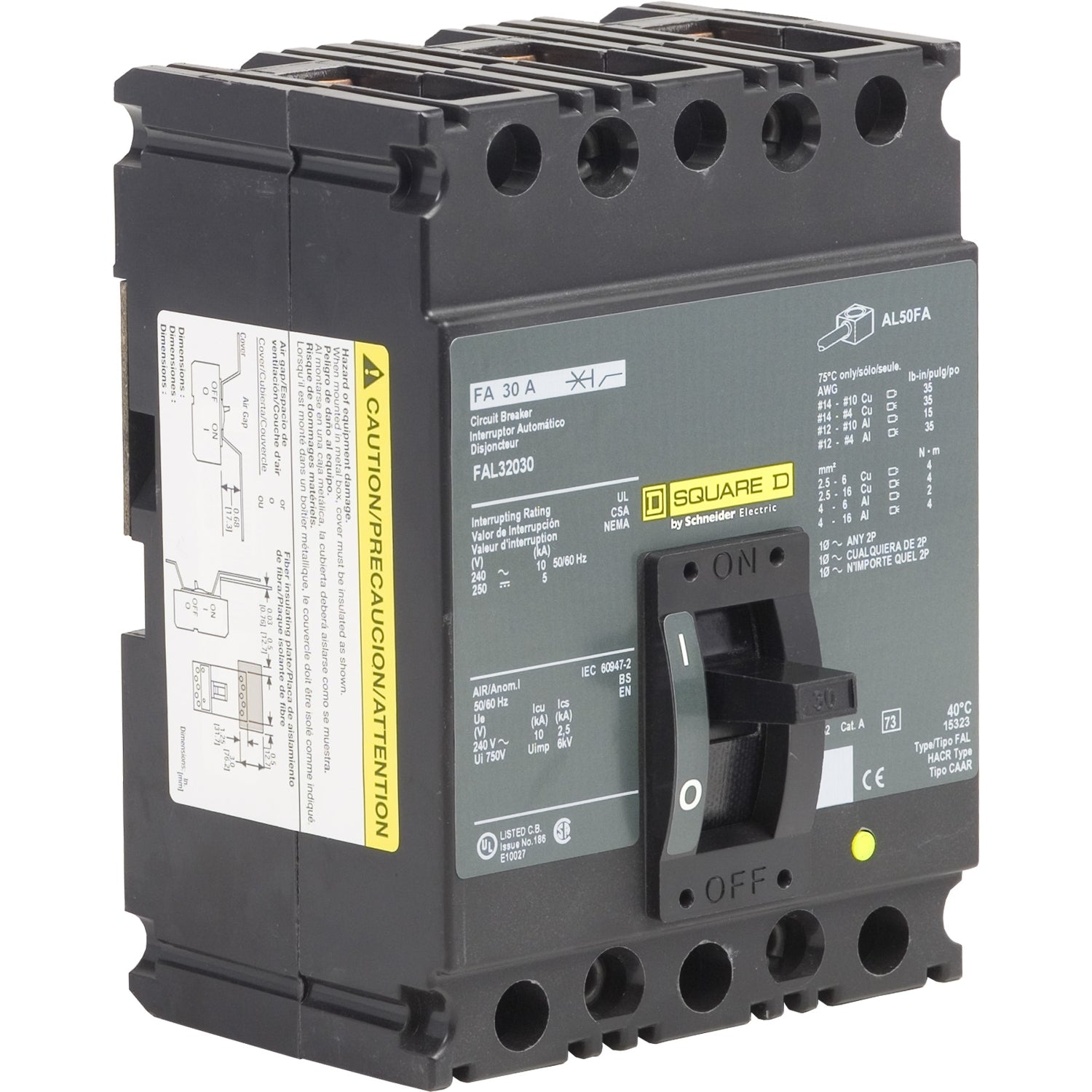

Square D FAL32030 - Molded Case Circuit Breaker, 30A 3P (240V)
Square D FAL32030 - Molded Case Circuit Breaker, 30A 3P (240V)

Square D FAL32030 - Molded Case Circuit Breaker, 30A 3P (240V)

Square D
Price
Save $372.93
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FAL32030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4 lb. This UL LISTED device utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions and offers a 10kA interrupting capacity at 240V. Its feed-thru connection and compatibility with 12 AWG to 4 AWG copper or aluminum conductors make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Weight: 4 lb
  • Standards: UL LISTED
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: F Frame
  • Wire Size: 12 AWG to 4 AWG, 14 AWG to 4 AWG (Aluminum/Copper)
  • Certification: UL LISTED


Product Identification
  • UPC: 785901422990
  • GTIN: 00785901422990
