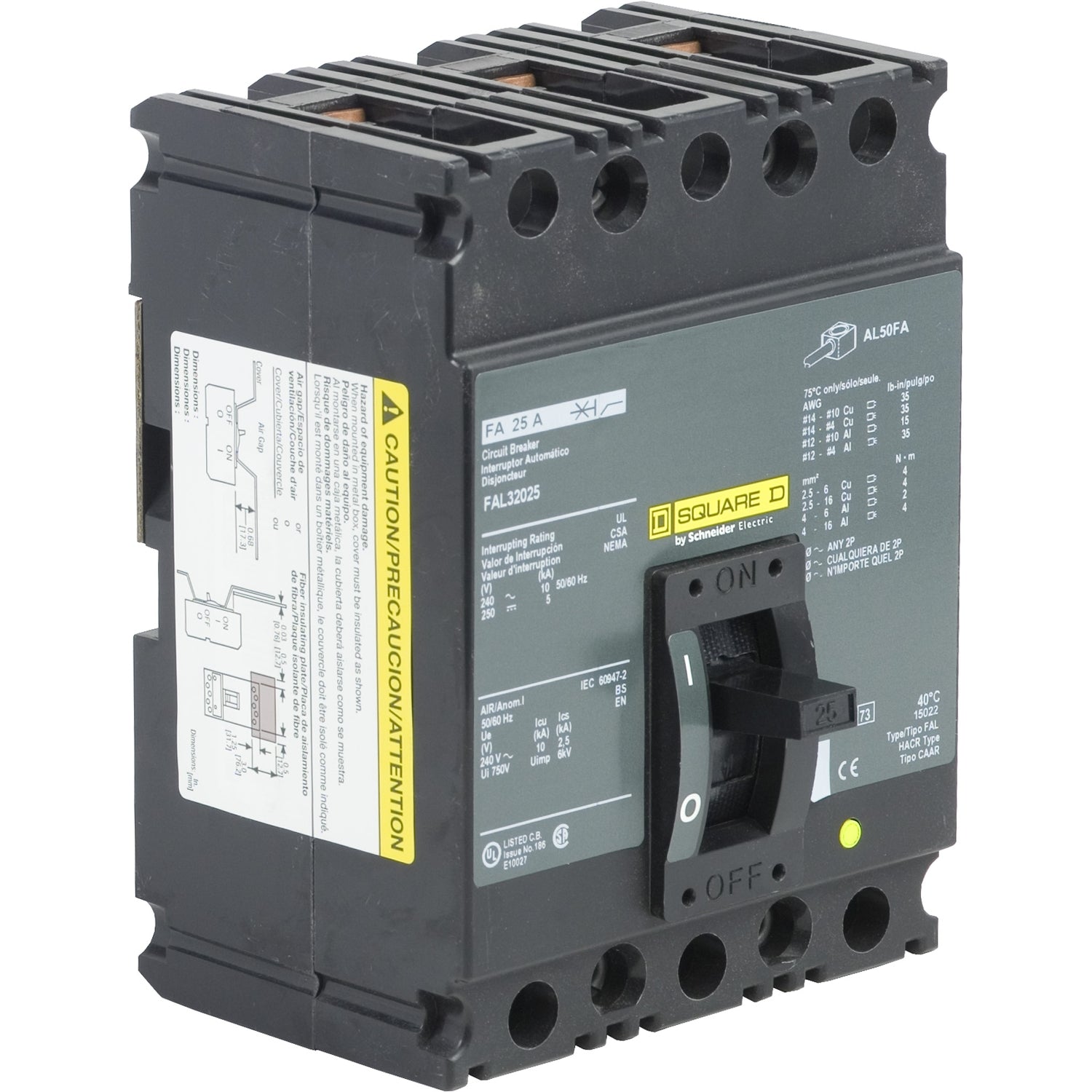

Square D FAL32025 - Molded Case Circuit Breaker, 25A 3P 240V
Square D FAL32025 - Molded Case Circuit Breaker, 25A 3P 240V

Square D FAL32025 - Molded Case Circuit Breaker, 25A 3P 240V

Square D
Price
Save $-569.89
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL32025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 25A current rating and a 240V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.83 lb. The breaker is UL Listed and CSA certified, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) functions to ensure protection coordination. Its 10kA interrupting rating at 240V and feed-thru connection make it suitable for panelboards and switchboards in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Listed, CSA
  • Applications: Industrial & Commercial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Certification: UL LISTED-CSA
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Standards: UL, CSA
  • Weight: 4.83 lb


Product Identification
  • UPC: 785901529644
  • GTIN: 00785901529644
