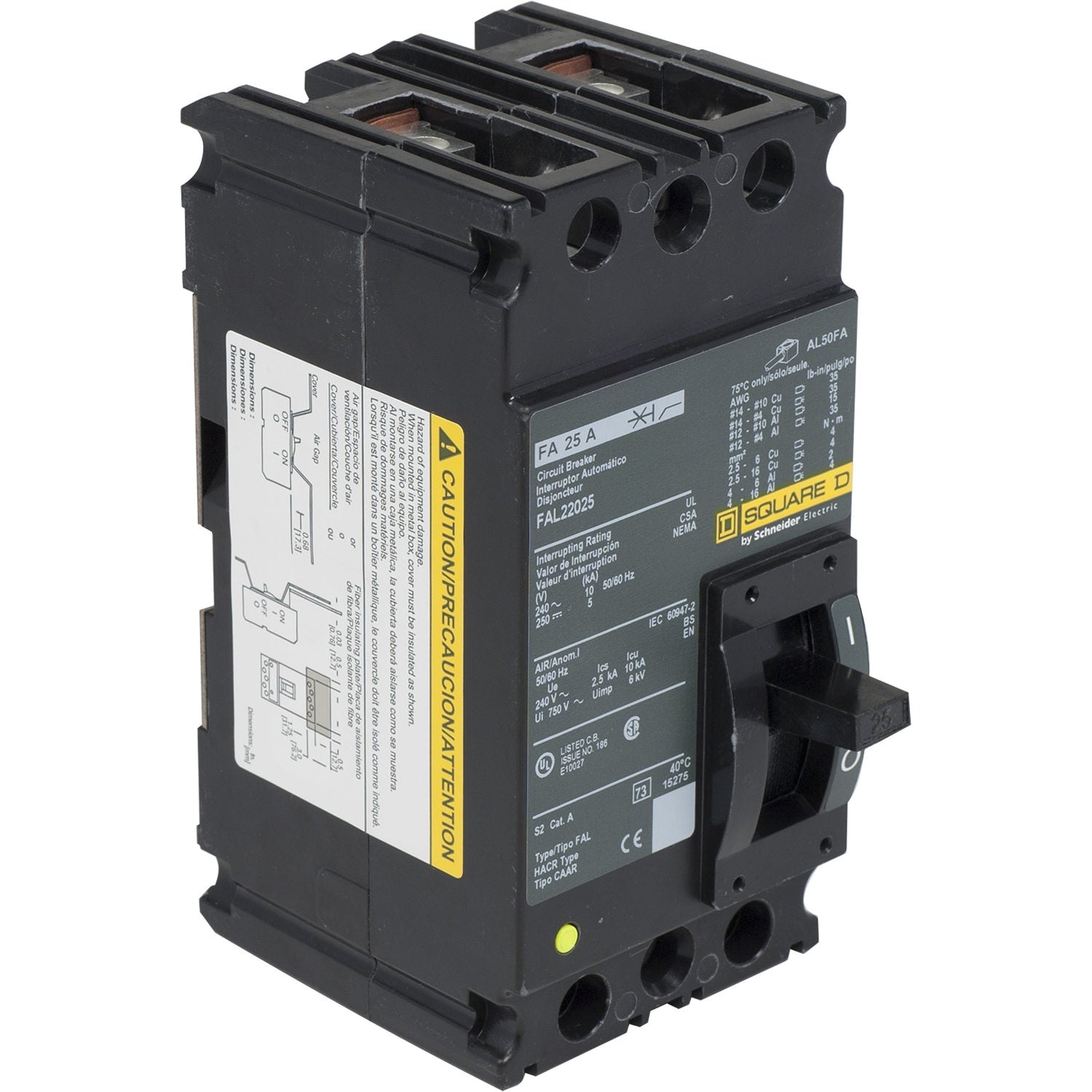

Square D FAL22025 - Molded Case Circuit Breaker, 25A 2-Pole
Square D FAL22025 - Molded Case Circuit Breaker, 25A 2-Pole

Square D FAL22025 - Molded Case Circuit Breaker, 25A 2-Pole

Square D
Price
Save $-352.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FAL22025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 25A current rating and a 240V AC voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 3.362 lb, and utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection functions. It is certified to CSA and UL standards and offers an interrupting capacity of 10kA at 240V. This two-pole, feed-thru connection breaker is typically applied in panelboards and switchboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip Unit with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: CSA-UL LISTED
  • Applications: Industrial and Commercial Branch Circuit Protection in Panelboards and Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: CSA-UL LISTED
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Screw
  • Standards: UL 489, CSA C22.2 No. 5
  • Family: FAL Series
  • Country of Origin: Mexico
  • Weight: 3.362 lb


Product Identification
  • UPC: 785901563693
  • GTIN: 00785901563693
