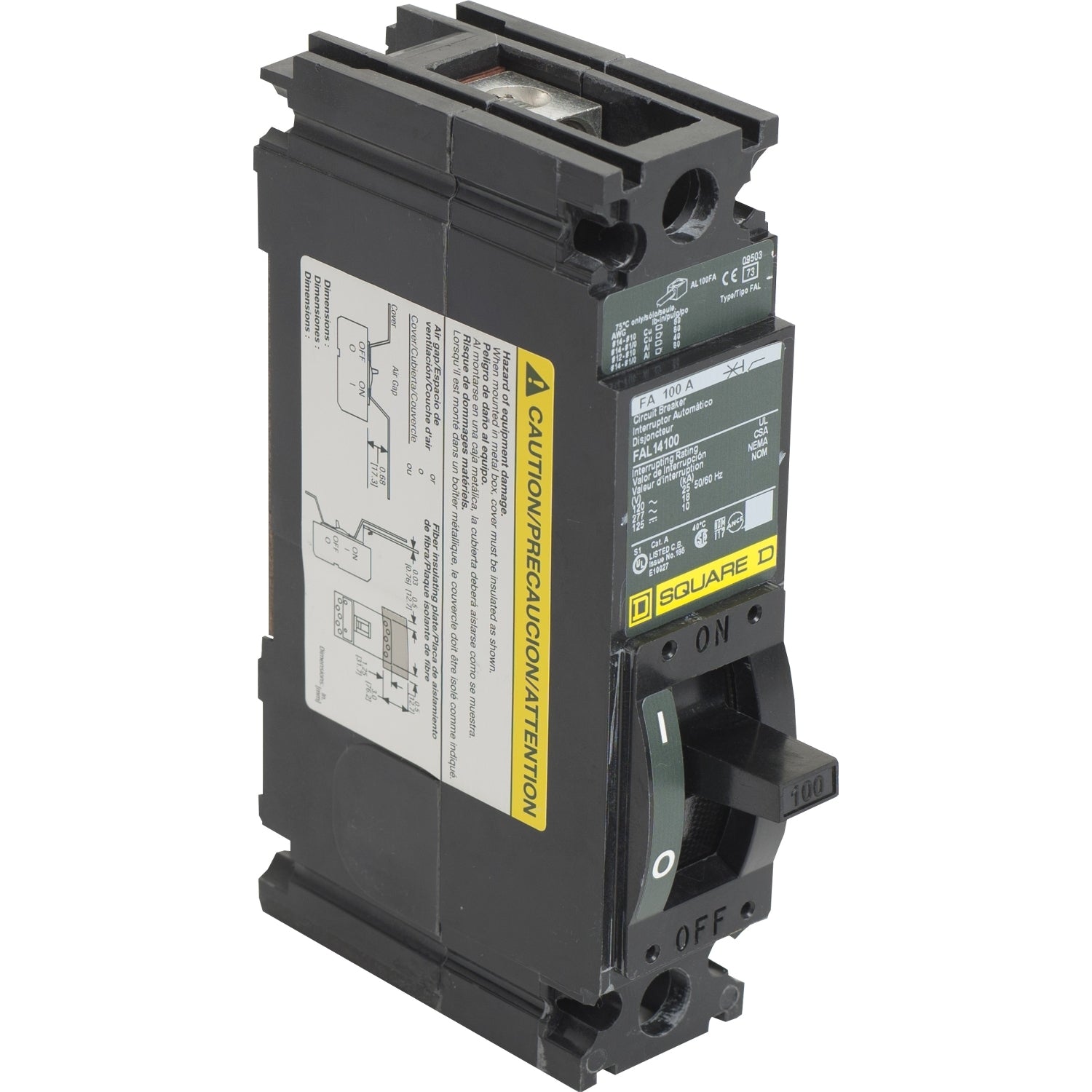

Square D FAL14100 - Molded Case Circuit Breaker 100A 277V 1-Pole
Square D FAL14100 - Molded Case Circuit Breaker 100A 277V 1-Pole

Square D FAL14100 - Molded Case Circuit Breaker 100A 277V 1-Pole

Square D
Price
Save $345.90
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Square D FAL14100 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 277V AC voltage rating, housed within a compact F Frame measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and weighing 0.2 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous (LI) protection functions, ensuring compliance with industry standards for safety and performance. Its single-pole, feed-thru configuration with an 18kA interrupting rating at 277V makes it suitable for protecting branch circuits and equipment in single-phase applications, compatible with copper conductors from AWG 14 to 1/0 and aluminum from AWG 12 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 277V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 1.5 in (38.1 mm) W x 4.13 in (104.90 mm) D
  • Weight: 0.2 lb
  • Frame Size: F Frame
  • Poles: 1
  • Phase: 1
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • AIC Rating: 18kA @ 277V
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminium)
  • Family: FAL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901128502
  • GTIN: 00785901128502
