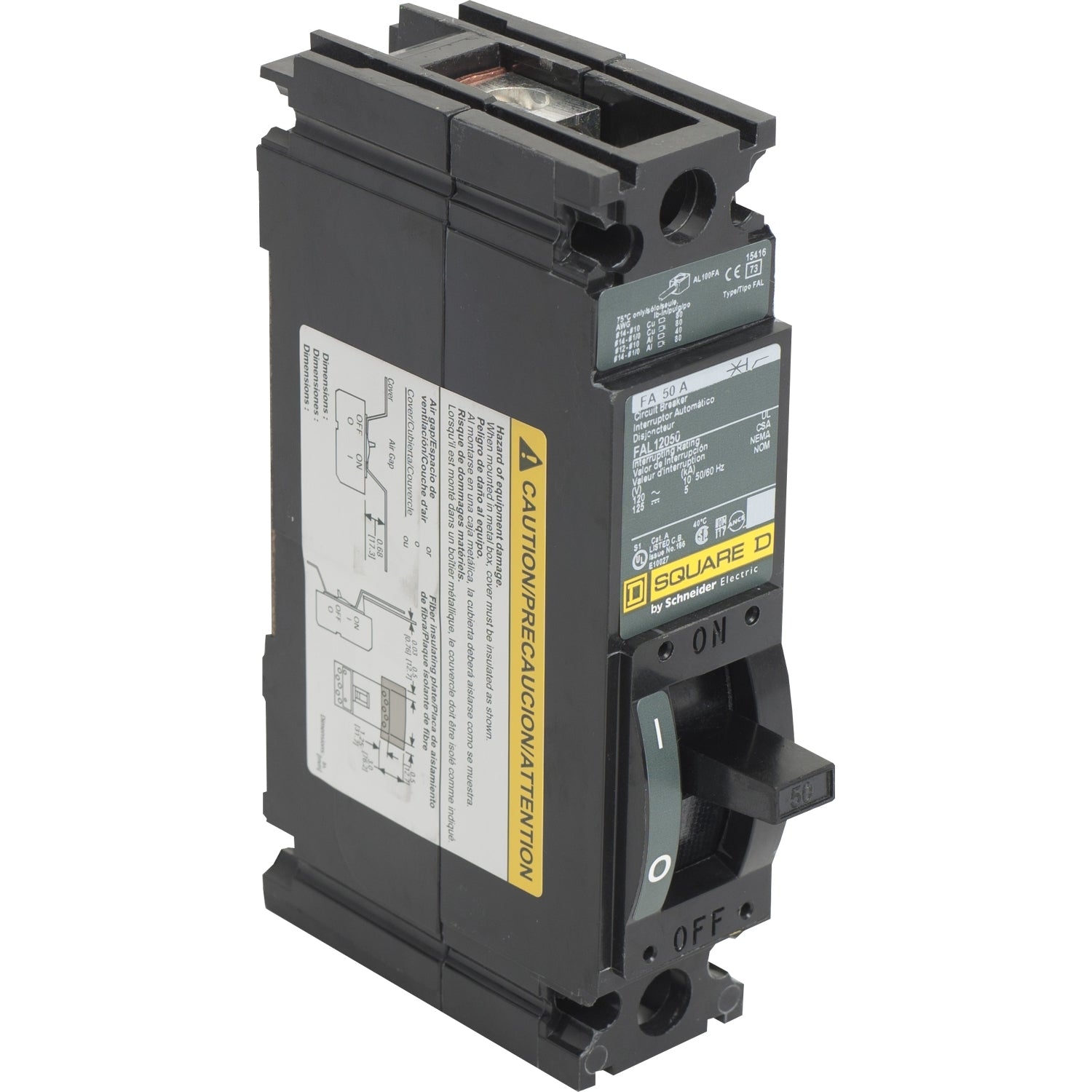

Square D FAL12015 - Molded Case Circuit Breaker 15A 1-Pole
Square D FAL12015 - Molded Case Circuit Breaker 15A 1-Pole

Square D FAL12015 - Molded Case Circuit Breaker 15A 1-Pole

Square D
Price
Save $166.45
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FAL12015 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and 120V voltage rating for single-phase applications, with a compact F-frame construction measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and a weight of 1.8 lb. The breaker utilizes a thermal-magnetic protection mechanism with long-time and instantaneous (LI) trip functions, ensuring compliance with industry protection standards. Its 10kA interrupting capacity at 240V and feed-thru connection design make it suitable for panelboards and switchboards, accommodating wire sizes from 12-4 AWG aluminum or 14-4 AWG copper.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FAL Series, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in (162.6 mm) H x 1.5 in (38.1 mm) W x 4.13 in (104.90 mm) D
  • Standards: Industry Standard for Circuit Protection
  • Applications: Panelboards, Switchboards, Industrial & Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 15A
  • AIC Rating: 10kA @ 240V
  • Connection: Feed-Thru
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Wire Size: 12-4 AWG (Aluminum), 14-4 AWG (Copper)
  • Weight: 1.8 lb


Product Identification
  • UPC: 785901342458
  • GTIN: 03606487251224
