Square D
Price
Save $-1,554.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

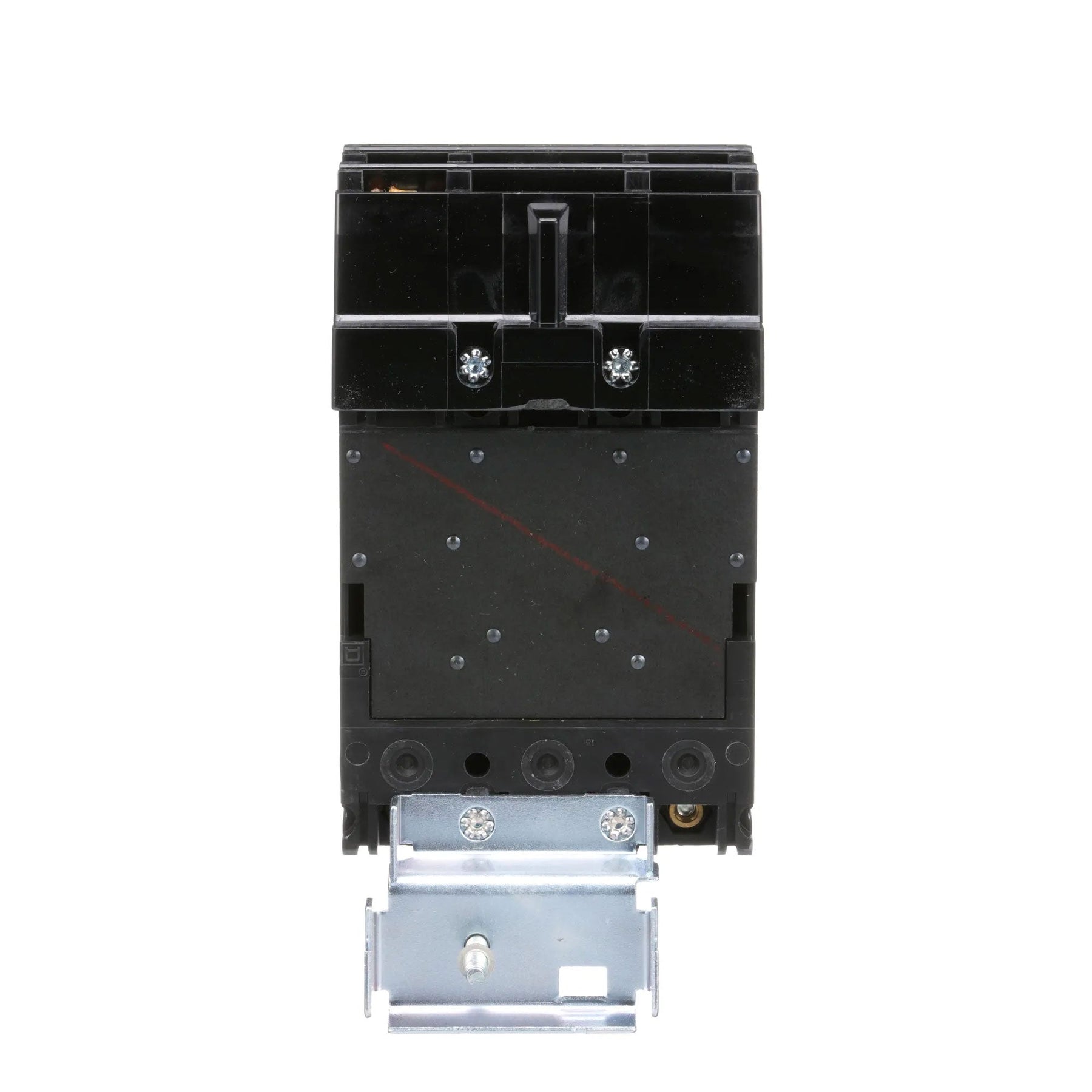

Square D FA36080 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions, rated for 80A at 600V with an interrupting capacity of 18kA at 480V. The compact F-frame unit measures 162.6 mm H x 114.3 mm W x 104.9 mm D, weighs 9 lb, and is constructed for plug-in connection to I-Line panelboards. It complies with industry standards for thermal magnetic protection and operates within a temperature range of -25 to 70 °C. This breaker is typically applied in commercial and industrial facilities for feeder and branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: Industry Standard for Thermal Magnetic Protection
  • Applications: Industrial and Commercial Power Distribution, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3-Phase
  • AIC Rating: 18kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Mounting: Plug-In
  • Enclosure: Molded Case
  • Certification: Industry Standard
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: I-Line Style
  • Standards: Industry Standard
  • Installation Type: Panelboard Mount
  • Breaker Frame: F Frame


Product Identification
  • UPC: 785901338758
  • GTIN: 00785901338758
