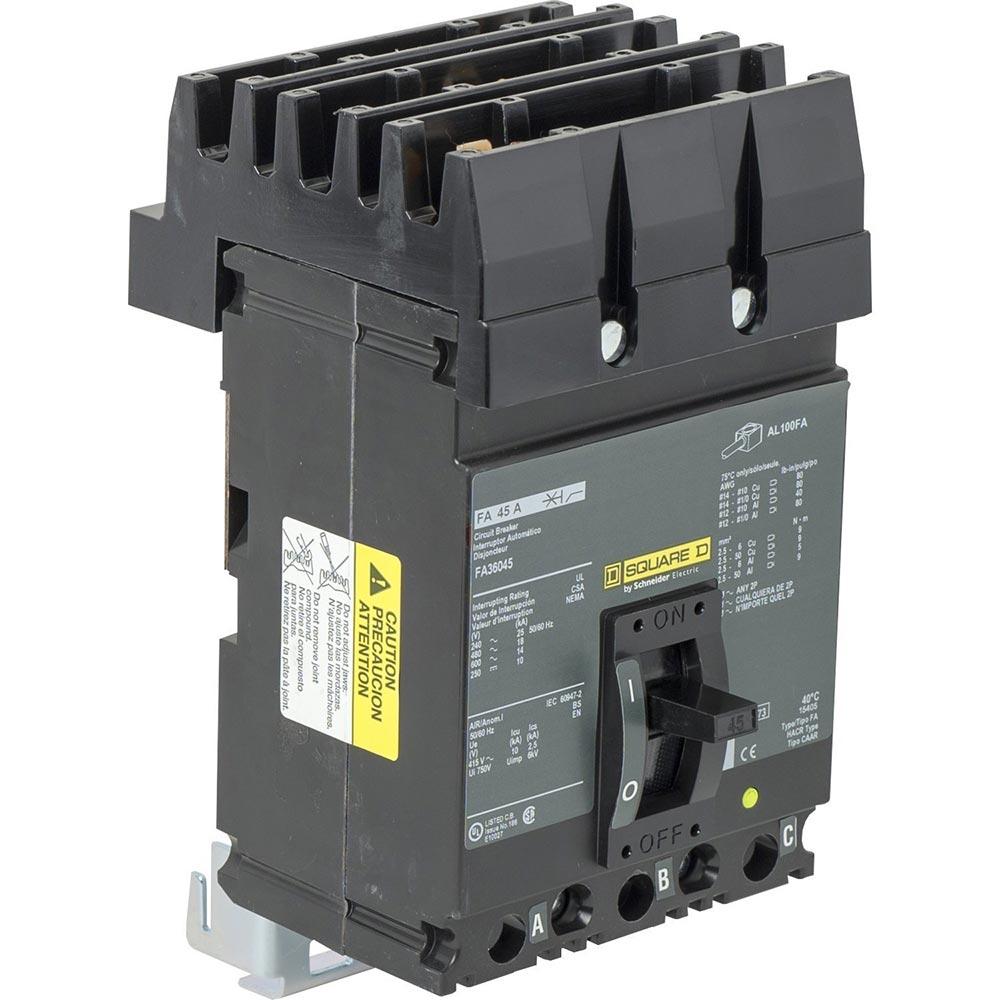

Square D FA36045 - Molded Case Circuit Breaker 45A 600V 3P
Square D FA36045 - Molded Case Circuit Breaker 45A 600V 3P

Square D FA36045 - Molded Case Circuit Breaker 45A 600V 3P

Square D
Price
Save $-825.03
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FA36045 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 45A current rating and a 600V voltage rating, utilizing a thermal magnetic trip mechanism for both long-time and instantaneous protection functions. The breaker is constructed with an F frame size, measures 162.6 mm H x 114.3 mm W x 104.9 mm D, and weighs 9 lb, featuring an I-Line style plug-in connection for simplified installation. It complies with UL and CSA standards and offers an interrupting capacity of 18kA at 480V AC. This unit is typically applied in panelboards and switchboards to protect feeder and branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 45A
  • Dimensions: 6.4 in H (162.6 mm) x 4.5 in W (114.3 mm) x 4.13 in D (104.90 mm)
  • Standards: UL, CSA
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Wire Size: Accepts #14 AWG to #4 AWG Copper, #12 AWG to #4 AWG Aluminum
  • Certification: UL, CSA
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901529620
  • GTIN: 00785901529620
