Square D FA36015 - 3-Pole Thermal-Magnetic Breaker (15A, 600V)
Square D FA36015 - 3-Pole Thermal-Magnetic Breaker (15A, 600V)

Square D FA36015 - 3-Pole Thermal-Magnetic Breaker (15A, 600V)

Square D
Price
Save $-1,228.09
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price

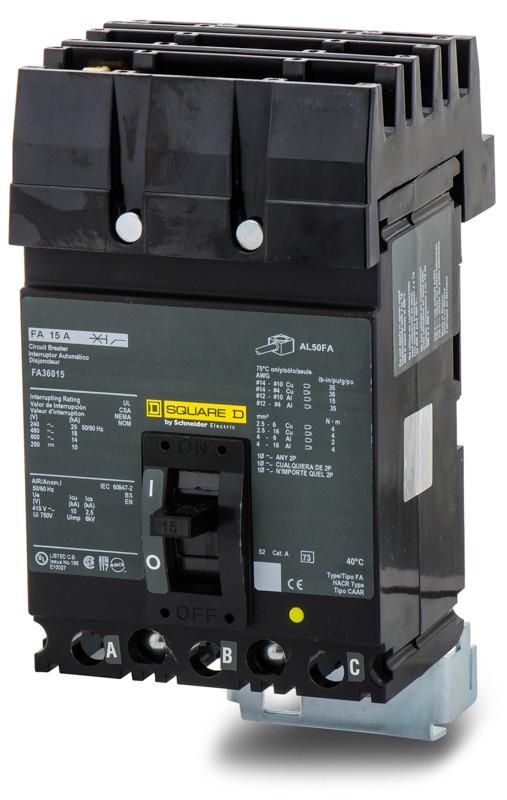

Square D FA36015 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, with a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and a weight of 9 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers an interrupting capacity of 18kA at 480V, and operates within a temperature range of -25 to 70 °C. Its I-Line style plug-in connection facilitates installation in compatible panelboards for applications such as motor control and feeder circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Weight: 9 lb
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • Connection: I-Line Style Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC Rating: 18kA @ 480V
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901429005
  • GTIN: 00785901429005
