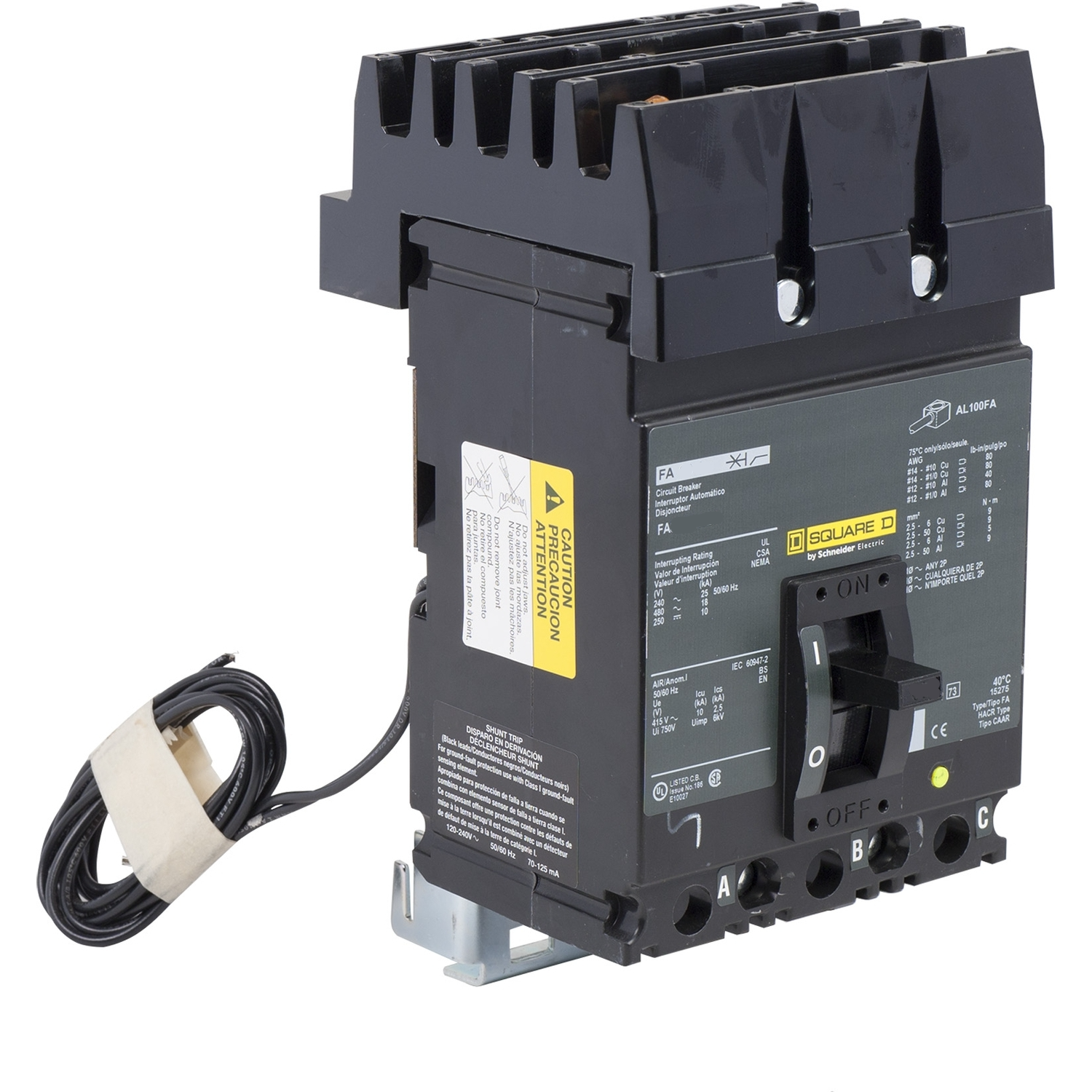

Square D FA34070CBA1021 - Molded Case Circuit Breaker 70A 480V 3-Pole
Square D FA34070CBA1021 - Molded Case Circuit Breaker 70A 480V 3-Pole

Square D FA34070CBA1021 - Molded Case Circuit Breaker 70A 480V 3-Pole

Square D
Price
Save $-868.57
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FA34070CBA1021 is a 3-pole molded case circuit breaker from the I-Line family, designed for overcurrent protection in industrial power distribution systems. It is rated for 70A continuous current at 480V AC with an 18kA interrupting capacity, utilizing thermal magnetic protection for LI (Long-Time and Instantaneous) trip functions. The unit features an F Frame size, weighs 9 lb, and connects via I-Line style plug-in mounting for secure panel integration. This breaker complies with applicable UL and NEMA standards for molded case circuit breakers. Typical applications include branch circuit protection in switchboards, panelboards, and motor control centers within commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, LI Protection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: F Frame Size
  • Standards: UL, NEMA
  • Applications: Industrial power distribution, branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not applicable (thermal magnetic)
  • Temp Rating: Standard
  • Shipping Dimensions: Standard F Frame
  • Phase: 3
  • Voltage: 480V
  • Amperage: 70A
  • AIC rating: 18kA@480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: I-Line
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: I-Line
  • Bus Type: I-Line
  • Fuse Class: Not applicable
  • Insulation Temperature: Standard
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 70A
  • Dist Voltage: 480V
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 70A
  • Full Load Amp Minimum: Not applicable
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 70A
  • Amperage Minimum: Not applicable
  • Nema Rating: Standard
  • Switch Style: Circuit Breaker
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: I-Line
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 489
  • Compatible Frames: F Frame
  • Installation Type: Panelboard
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: F Frame
  • Current Rating: 70A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: Not available
  • GTIN: Not available
