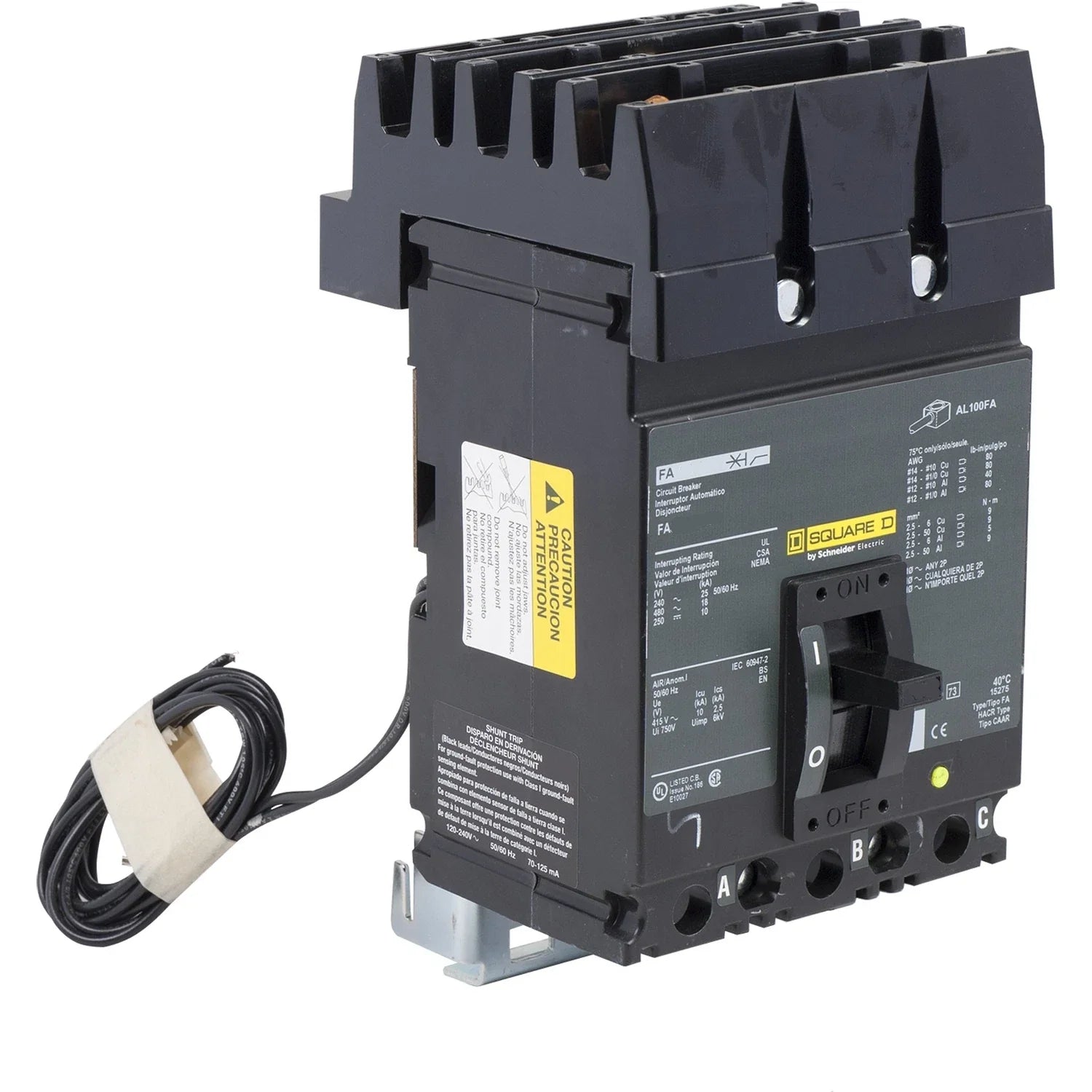

Square D FA340151021 is a 3-pole molded case circuit breaker from the I-Line family, designed to provide thermal magnetic protection for commercial and industrial power distribution systems. It is rated for 15A at 480VAC with an interrupting capacity of 18kAIC at 480V, and it employs long time and instantaneous trip functions to safeguard against overloads and short circuits. The unit features an I-Line style plug-in connection, measures 6.4 in (162.6 mm) in height, 4.5 in (114.3 mm) in width, and 4.13 in (104.90 mm) in depth, and weighs 9 lb. It is built to operate within a temperature range of -13 to 158 °F (-25 to 70 °C) and is manufactured in Mexico by Schneider Electric. This breaker is suitable for use in I-Line busway systems, providing reliable circuit protection in panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker
  • Manufacturer: Schneider Electric
  • Family: I-Line
  • Country of Origin: Mexico
  • Dimensions: 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
  • Weight: 9 lb
  • Functions: Long Time and Instantaneous Trip
  • Voltage Rating: 480V
  • Poles: 3
  • Connection: I-Line Style Plug-In
  • Protection: Thermal Magnetic
  • AIC rating: 18kA@480V
  • Phase: 3
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Current Rating: 15A
  • Series/Frame: FA
  • Terminal Connection: Load Side Lug
  • Certifications: UL, CSA, RoHS, REACh, HACR


Part Number: FA340151021
