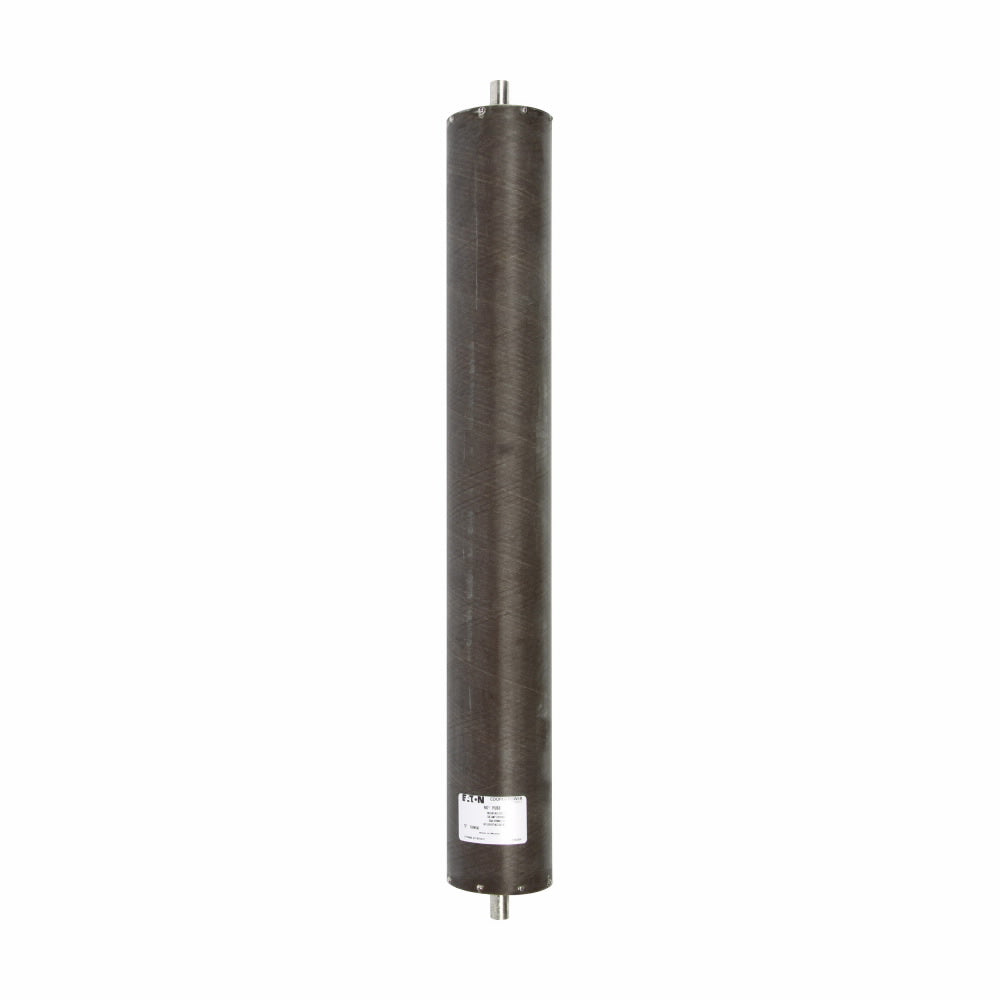

Eaton FA30A10 - Medium Voltage Fuse 15.5kV/10A (50kA AIC Rating)

Eaton FA30A10 is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This NX-class fuse features a 15.5kV voltage rating and 10A current rating with a 50kA interrupting capacity at 15.5kV for reliable fault protection. The unit measures 18.5" × 3.1" × 2.4" (L×H×W) with a 2.15" diameter and 4 lb weight, constructed with an Arc-Strangler connection system for enhanced safety. Compliant with industry standards for medium voltage applications, it's engineered for use in utility substations, industrial plants, and heavy machinery requiring robust overcurrent protection.

Key Features & Specifications

• Type: NX-class medium voltage fuse with single-barrel design
• Voltage Rating: 15,500V AC
• Current Rating: 10A
• Dimensions: 18.5" × 3.1" × 2.4" (L×H×W)
• Standards: Industrial medium voltage protection
• Applications: Utility substations, industrial power systems
• AIC rating: [email protected]
• Connection: Arc-Strangler
• Barrels: 1
• Diameter: 2.15"
• Weight: 4 lb

Product Identification

• UPC: 194006071918
