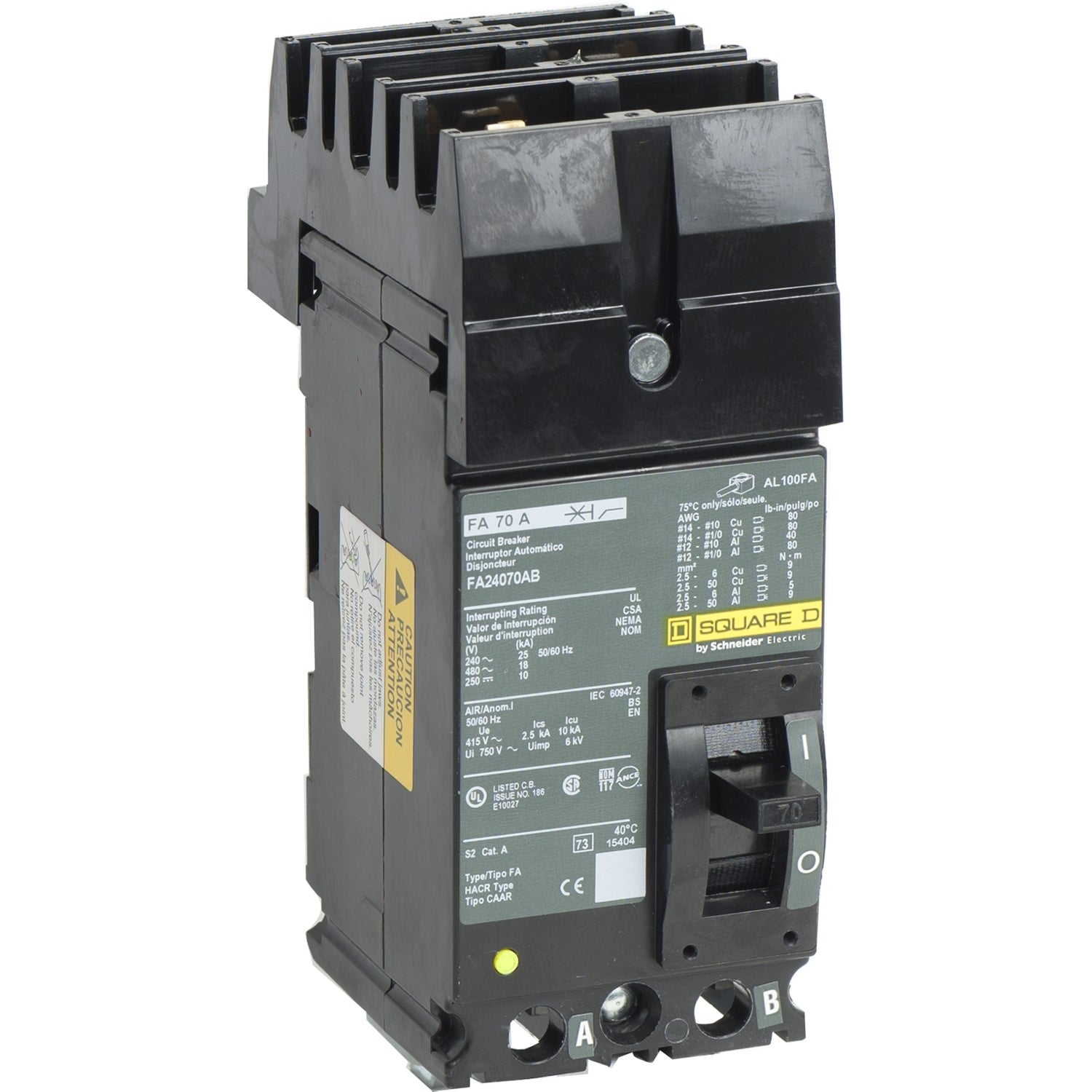

Square D FA24070AB - 70A Molded Case Breaker (480V, 18kA AIC)
Square D FA24070AB - 70A Molded Case Breaker (480V, 18kA AIC)

Square D FA24070AB - 70A Molded Case Breaker (480V, 18kA AIC)

Square D
Price
Save $-921.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FA24070AB is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. The breaker is constructed for robust performance, meeting industry standards with a thermal-magnetic trip unit providing long-time and instantaneous (LI) protection functions and an interrupting capacity of 18kA at 480V. Its I-Line style plug-in connection facilitates straightforward installation in compatible panelboards, and it operates reliably across a temperature range of -25 to 70 °C. Typical applications include protecting feeders and branch circuits in machinery, HVAC systems, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In Connection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Frame Size: F Frame
  • Poles: 2
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Weight: 6 lb
  • Operating Temperature: -13 to 158 °F (-25 to 70 °C)
  • Family: I-Line
  • Breaker Type: FA


Product Identification
  • UPC: 785901253631
  • GTIN: 00785901253631
