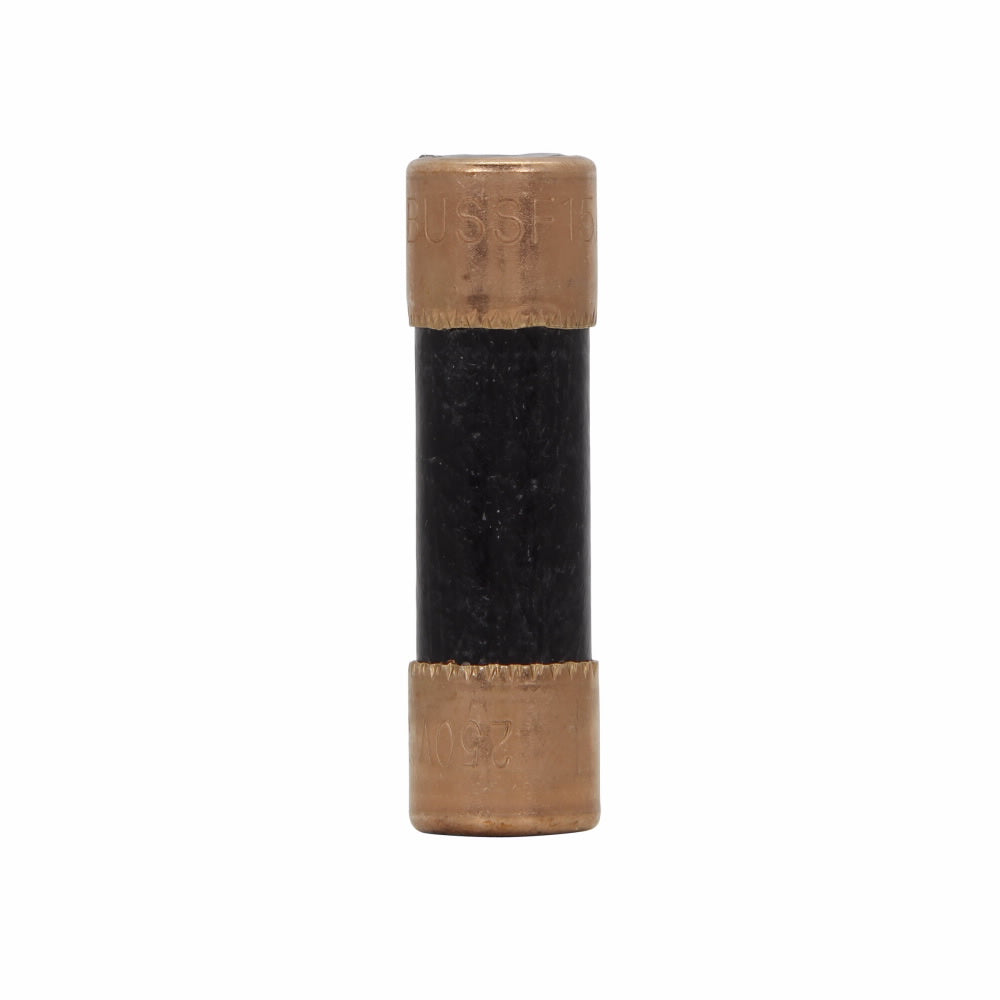

Eaton F09A250V10AS - Low Voltage Ferrule Fuse 10A 250V (Ceramic Body)

Eaton F09A250V10AS is a low-voltage ferrule fuse designed for circuit protection in industrial and commercial applications. This 250V AC/DC-rated fuse features a 10A current rating with a compact 1.5" × 0.406" × 0.406" (38.1mm × 10.3mm × 10.3mm) ceramic body construction and ferrule terminals for secure connections. Compliant with UL/CSA standards, the single-barrel fuse provides reliable overcurrent protection for control circuits, transformers, and small motor applications.

Key Features & Specifications

• Type: Ceramic-bodied ferrule fuse with time-delay characteristics
• Voltage Rating: 250V AC/DC
• Current Rating: 10A
• Dimensions: 1.5" L × 0.406" W × 0.406" H (38.1mm × 10.3mm × 10.3mm)
• Weight: 1.013 lb
• Connection: Ferrule terminal
• Barrels: 1
• Diameter: 0.41" (10.4mm)
• Standards: UL/CSA recognized
• Applications: Control circuits, transformers, small motors

Product Identification

• UPC: 005171215871
• GTIN: 00051712158718
