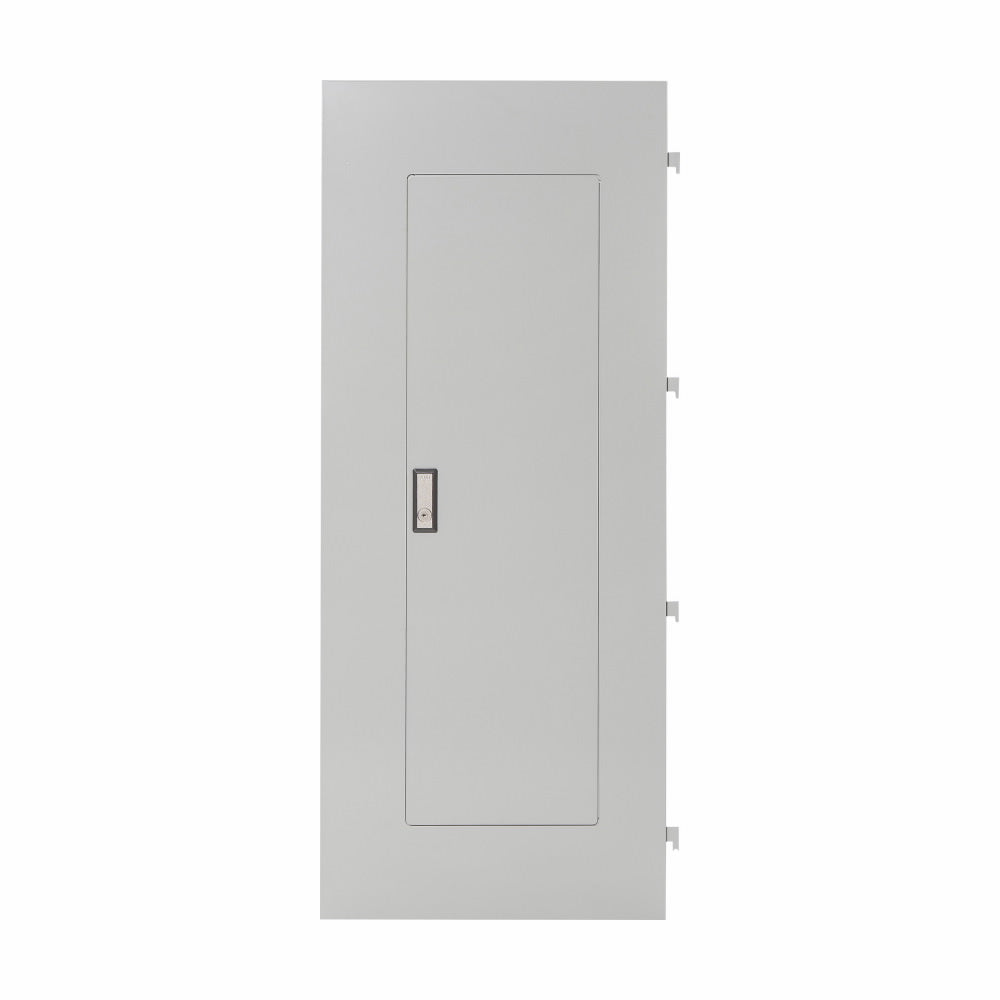

Cutler Hammer EZT2036S - Load Center 200A 22kAIC (36x20in)
Cutler Hammer EZT2036S - Load Center 200A 22kAIC (36x20in)

Cutler Hammer EZT2036S - Load Center 200A 22kAIC (36x20in)

Eaton
Price
Save $162.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer EZT2036S is a Pow-R-Xpress EZ load center designed for residential and light commercial electrical distribution and circuit protection. This unit operates at 120/240 VAC with a 200A main breaker, housed in a 36-inch by 20-inch enclosure with a 1.5-inch depth and weighing 28 lb. It is constructed with a tin-plated copper bus for reliable conductivity and features a single-phase, 3-wire configuration with a 22 kAIC rating. The load center is UL certified and complies with industry standards for safety and performance. Typical applications include main breaker panels in new construction or service upgrades.

Key Features & Specifications
  • Type: Pow-R-Xpress EZ load center, tin-plated copper bus
  • Voltage Rating: 120/240 VAC
  • Current Rating: 200A
  • Dimensions: 36 in x 1.5 in x 20 in (Length/Depth x Height x Width)
  • Standards: UL certified
  • Applications: Residential and light commercial main breaker panels
  • Switch Type: Main breaker
  • Configuration: Single-phase, 3-wire
  • Phase: 1
  • Voltage: 120/240 VAC
  • Amperage: 200A
  • AIC rating: 22 kAIC
  • Connection: 3-wire
  • Poles: 2
  • Protection: Overcurrent
  • Frame Size: 36 in
  • Breaker Type: Main
  • Metal Type: Tin-plated copper
  • Bus Type: Tin-plated copper
  • Mounting: Surface or flush
  • Hz: 60
  • Enclosure: NEMA 1
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67
  • Installation Type: Indoor
  • Item QTY: 1
  • Breaker Frame: 200A
  • Current Rating: 200A
  • Weight: 28 lb
  • Certification: UL


Product Identification
  • UPC: 782116934201
  • GTIN: 00782116934201
