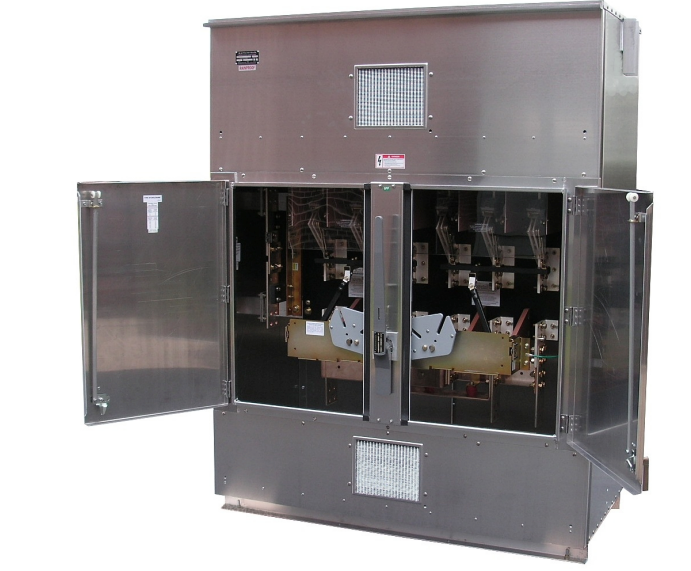

Boltswitch EVL369-9 - Fusible Bolted Pressure Switch 1600A@600V (200kA AIC)

Boltswitch
Price
Save $-2,529.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Boltswitch EVL369-9 is a fusible bolted pressure switch designed for high-current industrial power distribution systems. This VL Series switch features a 600V AC rating with a 1600A current capacity and a 200kA interrupting rating at 600V for robust short-circuit protection. The dual/twin configuration with three poles is housed in a NEMA 1 enclosure, constructed for compatibility with TB frames in demanding environments. It meets industry standards for bolted pressure switches with Class L fuse compatibility, ensuring reliable operation in three-phase systems. Typical applications include motor control centers, switchgear, and heavy industrial power distribution networks.

Key Features & Specifications
  • Type: VL Series bolted pressure switch (fusible style)
  • Voltage Rating: 600V AC
  • Current Rating: 1600A
  • Configuration: Dual/Twin
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA@600V
  • Fuse Class: L
  • NEMA Rating: 1
  • Compatible Frames: TB
  • Weight: 250 lb
Product Identification
  • GTIN: 00782113205359
