Boltswitch EVL367-7 - Fusible Bolted Pressure Switch (600V, 800A, 200kA AIC)

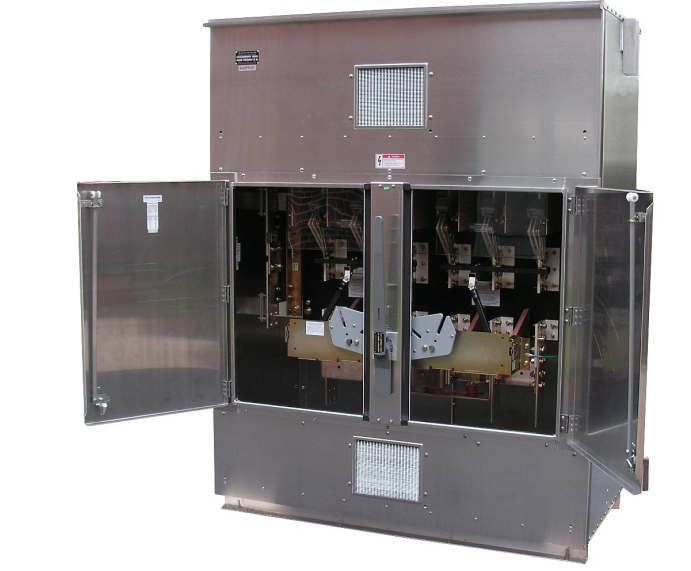

Boltswitch EVL367-7 is a fusible bolted pressure switch designed for high-current industrial power distribution systems, featuring a 600V voltage rating and 800A current capacity for robust circuit protection. Its dual/twin configuration with three poles and 200kA@600V AIC rating ensures reliable interruption of fault currents, housed in a NEMA 1-rated enclosure weighing 250 lb for durability in demanding environments. The switch complies with industry standards for bolted pressure devices and is compatible with SEHA frames, making it suitable for heavy-duty applications such as motor control centers, switchgear, and industrial power distribution panels.

Key Features & Specifications

• Type: VL Series fusible bolted pressure switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 800A
• Poles: 3
• AIC Rating: 200kA@600V
• Fuse Class: L
• NEMA Rating: 1
• Phase: 3
• Compatible Frames: SEHA
• Weight: 250 lb
• Switch Style: Fusible

Product Identification

• GTIN: 00887621872496
