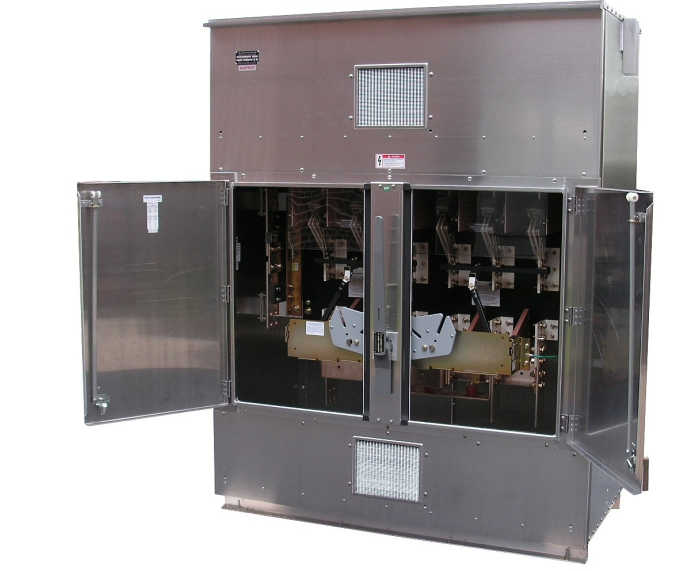

Boltswitch EVL3610-10N - Fusible Bolted Pressure Switch 2000A@600V (200kA AIC)

Boltswitch EVL3610-10N is a fusible bolted pressure switch designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 2000A current capacity with a 200kA@600V interrupting rating for reliable fault protection. The dual/twin configuration with 2 poles is housed in a NEMA 1 enclosure, constructed for durability in demanding environments, and is compatible with TED frames. Compliant with industry standards for bolted pressure switches, it is engineered for use in heavy industrial applications such as motor control centers, switchgear, and power distribution panels.

Key Features & Specifications

• Type: VL Series fusible bolted pressure switch (Class L fuse compatibility)
• Voltage Rating: 600V AC
• Current Rating: 2000A
• Configuration: Dual/Twin
• Poles: 2
• AIC Rating: 200kA@600V
• NEMA Rating: 1
• Phase: 1
• Compatible Frames: TED
• Weight: 250 lb

Product Identification

• GTIN: 00785901083870
