Appleton ES150100 - Explosion-Proof Sealing Hub 1-1/2 x 1 Inch NPT
Appleton ES150100 - Explosion-Proof Sealing Hub 1-1/2 x 1 Inch NPT

Appleton ES150100 - Explosion-Proof Sealing Hub 1-1/2 x 1 Inch NPT

Appleton
Price
Save $-3.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

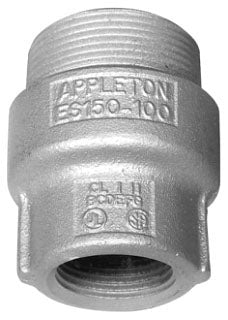

Appleton ES150100 is an explosion-proof sealing hub designed to prevent the passage of gases, vapors, or flames between conduit sections in hazardous locations. This protection/accessory device is constructed from malleable iron with a triple-coat finish of zinc electroplate, chromate, and epoxy powder coat for corrosion resistance, measuring 3-1/8 inches in length and 2-1/4 inches in height, with a weight of 5.19 lb. It features a 1-1/2 inch male and 1 inch female NPT tapered threaded connection for vertical conduit orientation, allowing up to 25% conduit fill. The hub is certified to CSA C22.2 No. 30 and UL 886 standards, making it suitable for Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III hazardous locations. It is typically used in industrial environments requiring sealed conduit systems to maintain explosion-proof integrity.

Key Features & Specifications
  • Type: Explosion-Proof Sealing Hub
  • Material: Malleable Iron with Zinc Electroplate, Chromate, Epoxy Powder Coat
  • Trade Size: 1-1/2 Inch Male x 1 Inch Female
  • Thread Type: NPT, Tapered Male/Female
  • Conduit Orientation: Vertical
  • Conduit Fill: Up to 25%
  • Hazardous Location Rating: Class I, Div 1 & 2, Groups A-D; Class II, Div 1 & 2, Groups E-G; Class III
  • Standards: CSA C22.2 No. 30, UL 886
  • Length: 3 1/8 Inches
  • Color: Silver
  • Seal Type: 25% Fill Sealing Hub
  • Country of Origin: Mexico


Product Identification
  • UPC: 781381703222
  • GTIN: 00781381703222
