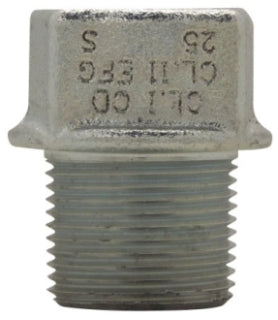

Eaton Crouse-Hinds ES014012 is an explosionproof conduit sealing hub designed to prevent the passage of gases, vapors, or flames through conduit systems in hazardous locations. This device is rated for use in Class I, Division 1 and 2 environments, with a maximum operating voltage of 600V AC and a current rating dependent on the connected conductors. The hub measures 7.25 inches in each dimension (Length/Depth x Height x Width) and weighs 14.35 lb, constructed from malleable iron with a corrosion-resistant electro-galvanized finish. It complies with NEC and CEC standards for hazardous location installations, specifically under the ES Explosionproof Conduit Sealing Hub and TSC Epoxy Sealing Compound section. Typical applications include sealing conduit runs in oil refineries, chemical plants, and other industrial facilities where flammable atmospheres are present.

Key Features & Specifications
  • Type: Explosionproof conduit sealing hub for hazardous locations
  • Voltage Rating: 600V AC
  • Dimensions: 7.25 in x 7.25 in x 7.25 in (Length/Depth x Height x Width)
  • Weight: 14.35 lb
  • Standards: NEC/CEC
  • Applications: Oil refineries, chemical plants, industrial hazardous locations
  • Metal Type: Malleable iron with electro-galvanized finish
  • Installation Type: Conduit sealing


Product Identification
  • UPC: 782274275604
