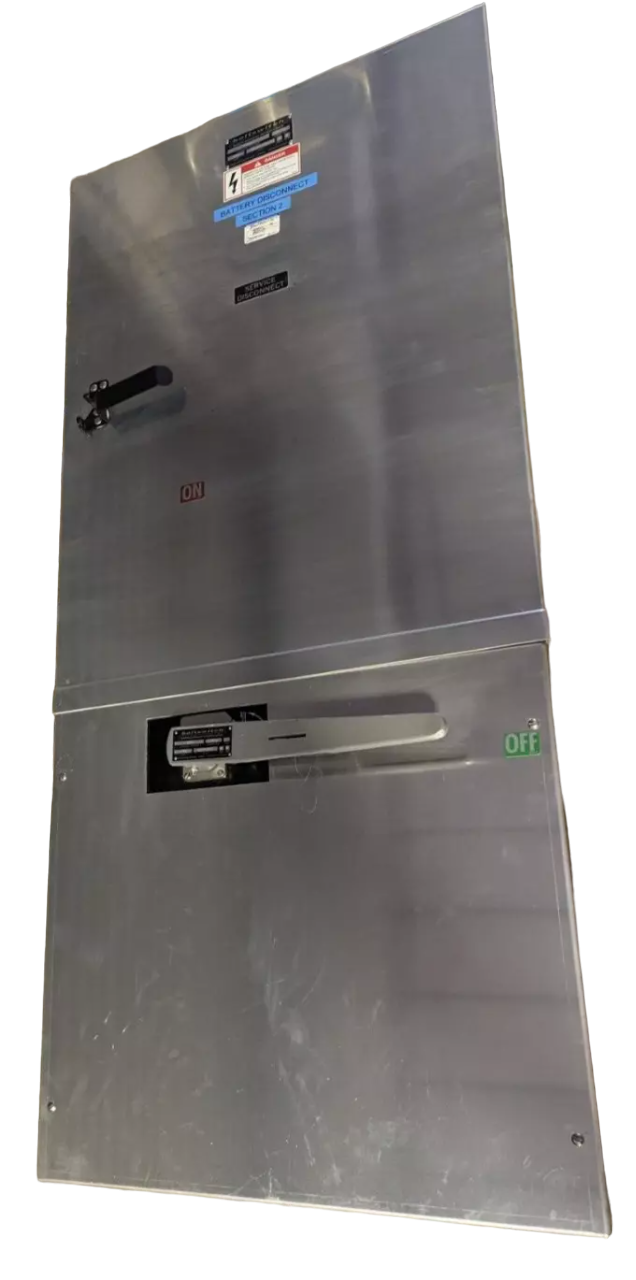

Boltswitch ER226 - Fusible Disconnect Switch 600A@240V (200kA AIC)

Boltswitch ER226 is a fusible bolted pressure switch designed for high-current circuit protection in industrial applications. It features a 240V voltage rating and 600A current capacity, housed in a rugged NEMA 1-rated enclosure weighing 250 lb for durable operation. The switch complies with industry standards for fusible disconnects, offering 200kA AIC protection at 240V in single-phase configurations. Its 2-pole design with R-class fuses and SGHA frame compatibility makes it suitable for heavy-duty power distribution, motor control, and machinery protection systems.

Key Features & Specifications

• Type: Fusible bolted pressure switch (ER Series)
• Voltage Rating: 240V AC
• Current Rating: 600A
• Configuration: Single
• Poles: 2
• AIC Rating: 200kA@240V
• Fuse Class: R
• Phase: 1
• NEMA Rating: 1
• Compatible Frames: SGHA
• Weight: 250 lb
• Standards: Industrial-grade fusible disconnect
• Applications: Power distribution, motor control, industrial machinery

Product Identification

• GTIN: 00783164011395
