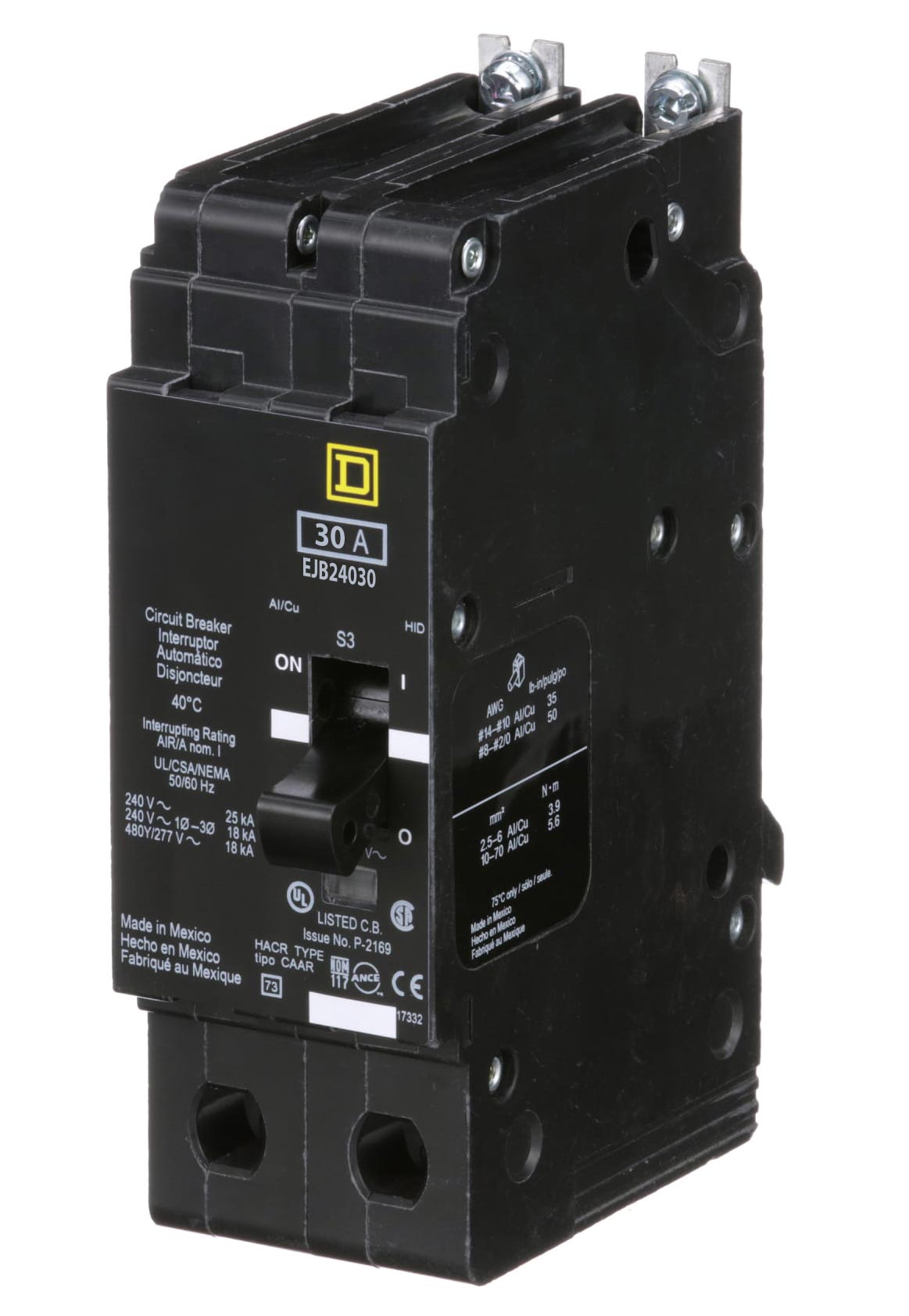

Square D EJB24030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact, bolt-on configuration measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.47 lb. The breaker is cULus listed and complies with industry standards, offering thermal-magnetic protection with long-time and instantaneous (LI) trip functions for safeguarding against overloads and faults. Its 65kA interrupting rating at 480V and single-phase design make it suitable for installation in NF panelboards, protecting conductors from AWG 14 to 6 copper or AWG 12 to 6 aluminum within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards: cULus
  • Applications: Industrial and Commercial Electrical Distribution, NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 65kA @ 480V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Wire Size: AWG 14 to 6 Copper, AWG 12 to 6 Aluminum
  • Certification: cULus
  • Family: EJB Series
  • Country of Origin: Mexico
  • Weight: 2.47 lb


Product Identification
  • UPC: 785901128762
  • GTIN: 00785901128762
