Boltswitch EGT225-5 - T-Class Fusible Disconnect Switch (400A 240V 200kA AIC)

Boltswitch
Price
Save $-1,384.91
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

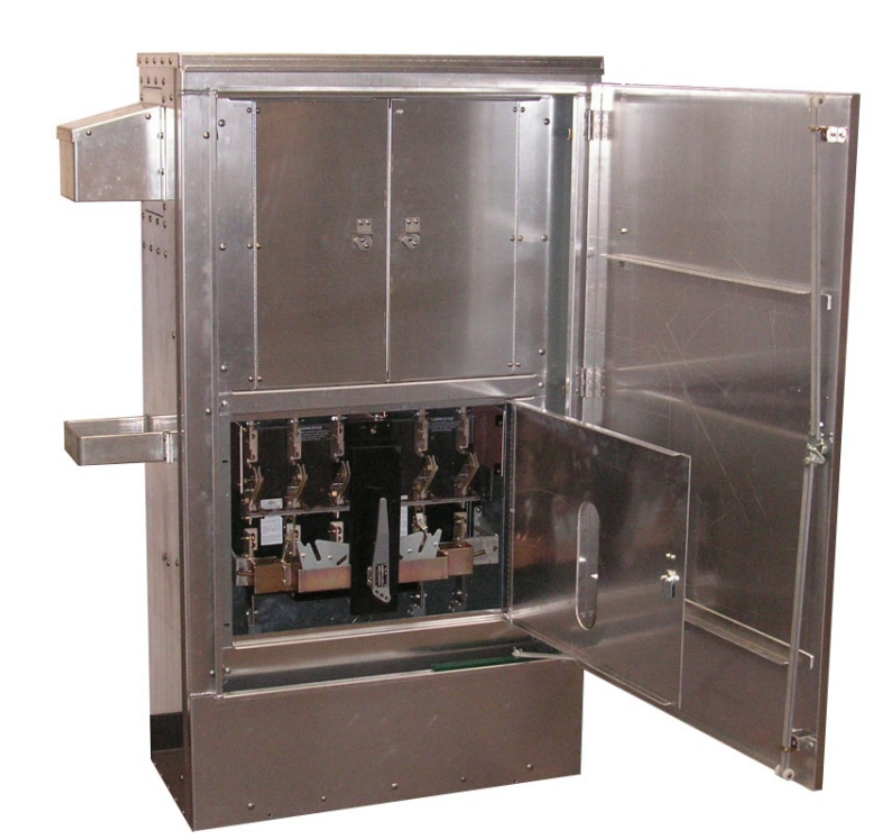

Boltswitch EGT225-5 is a fusible bolted pressure switch designed for high-current circuit protection in industrial power distribution systems. This single-phase switch features a 240V voltage rating and 400A current capacity with a 200kA interrupting rating at 240V for reliable fault protection. The rugged NEMA 1 enclosure houses a T-class fusible disconnect mechanism with 2 poles in a single configuration, compatible with TJJ frames. UL-listed and industry-compliant, this 250 lb switch is engineered for demanding applications including motor control centers, switchgear, and heavy machinery power management.

Key Features & Specifications
  • Type: Fusible bolted pressure switch (GT Series EGT type)
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 200kA@240V
  • Fuse Class: T
  • NEMA Rating: 1
  • Phase: 1
  • Compatible Frames: TJJ
  • Weight: 250 lb
  • Switch Style: Fusible disconnect
  • Standards: UL listed
  • Applications: Industrial power distribution, motor control centers, switchgear
Product Identification
  • GTIN: 00785901482338
