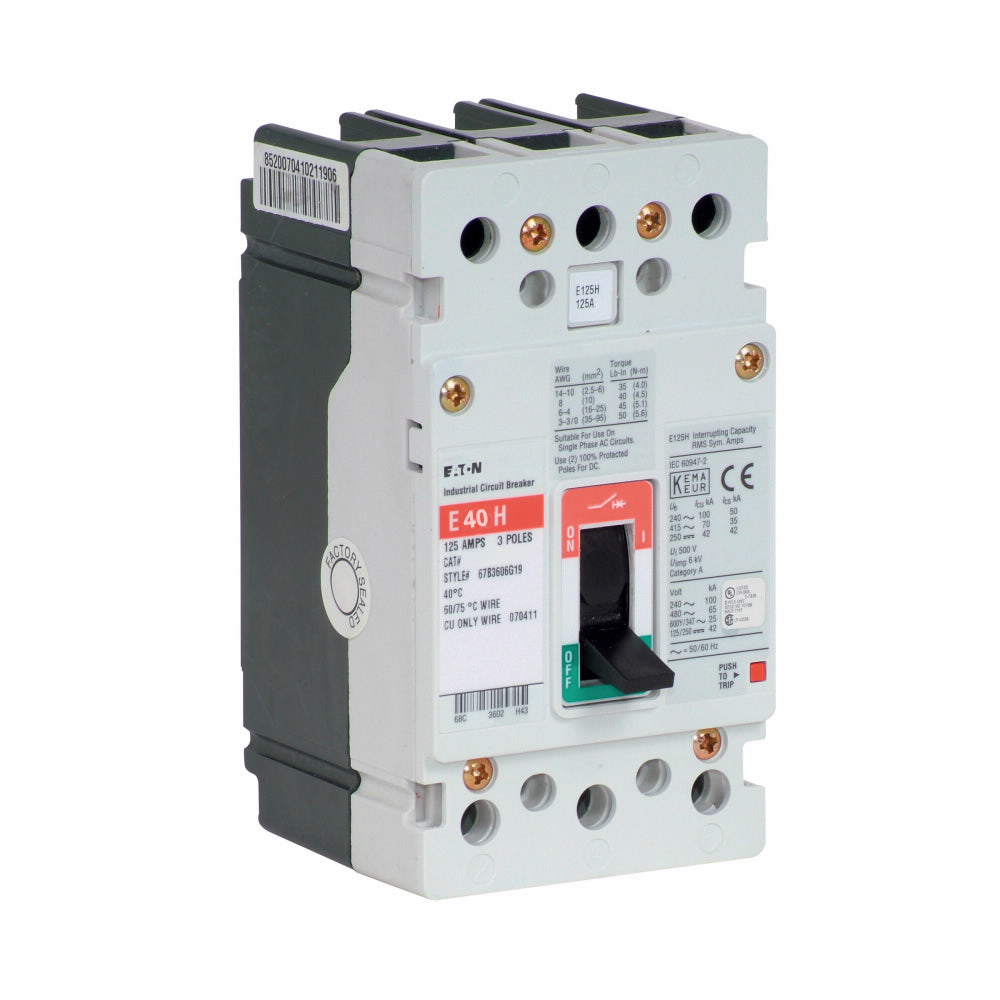

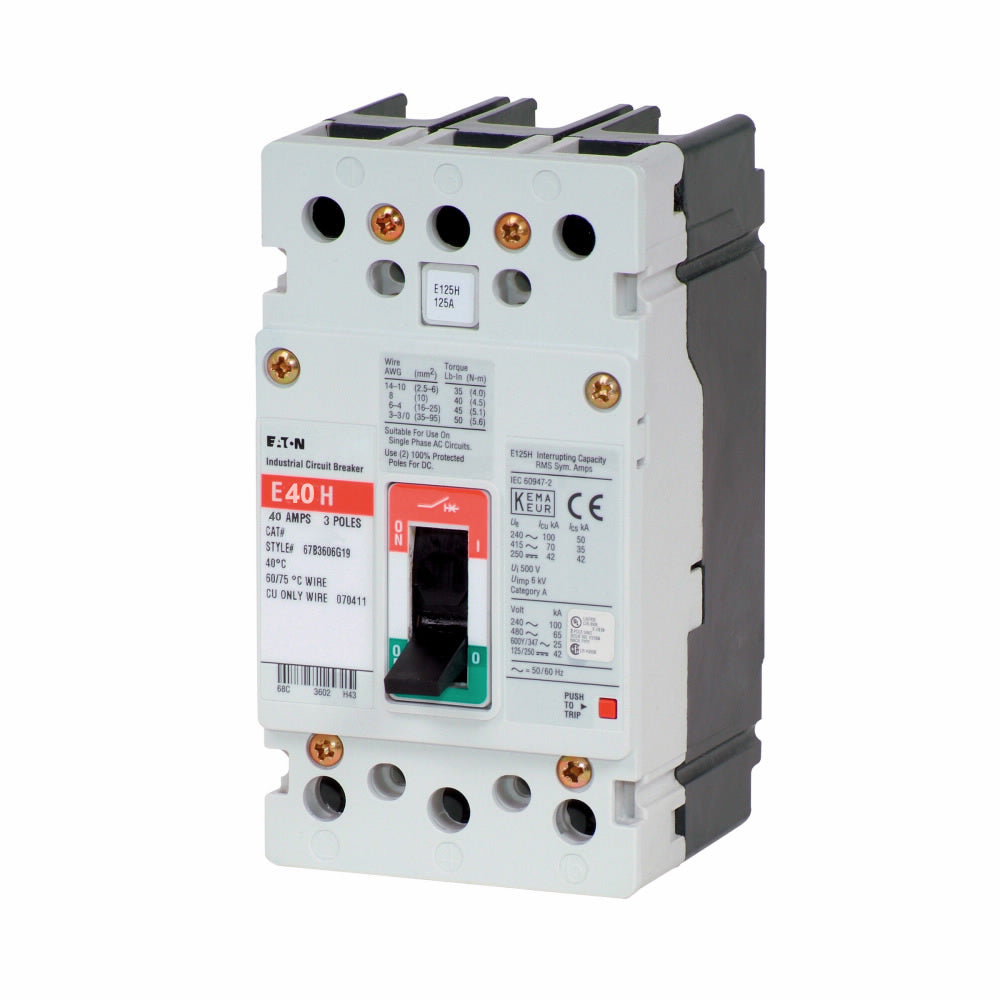

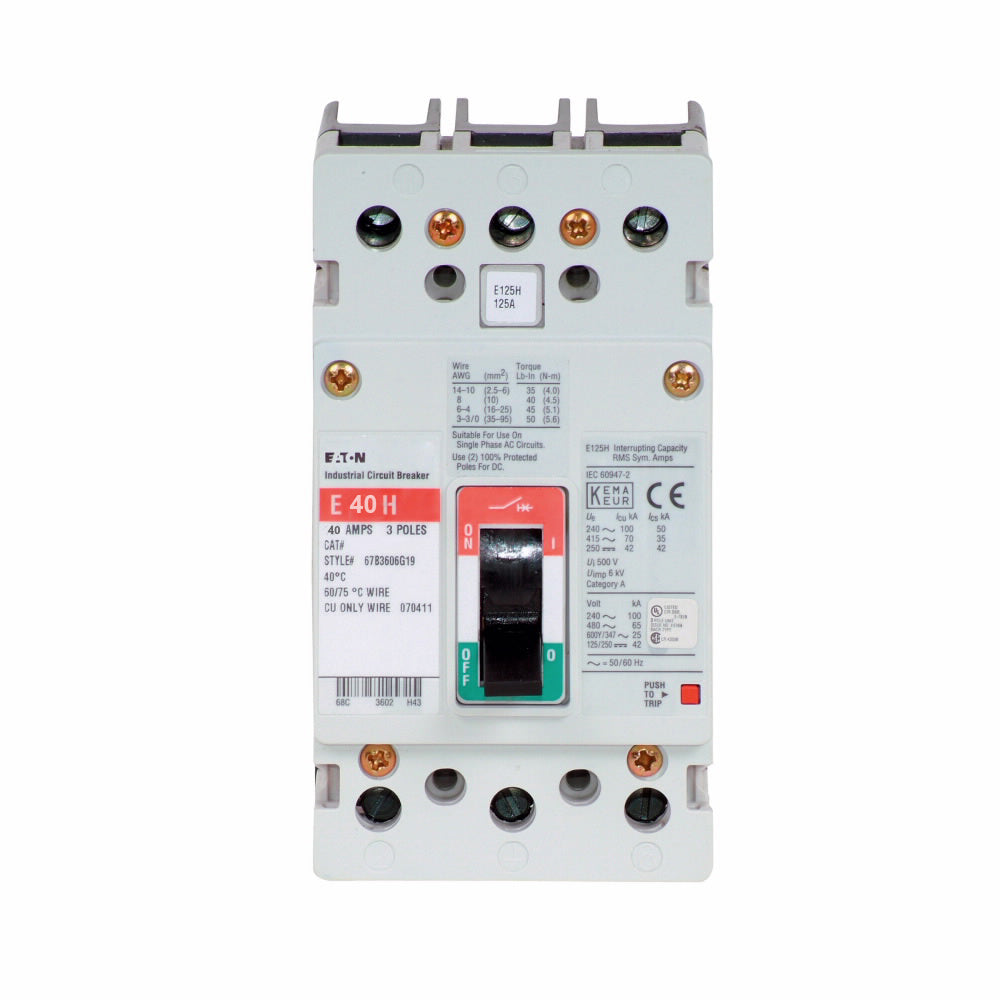

Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P
Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P
Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P
Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P
Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P
Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P

Cutler Hammer EGH3040FFB - Molded Case Circuit Breaker 40A 600V 3P

Cutler Hammer
Price
Save $446.11
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Cutler Hammer EGH3040FFB is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power systems. It features a 40A current rating and a 600V voltage rating, housed in a compact, bolt-on configuration measuring 2.99" x 5.5" x 3" (LxHxW) and weighing 3 lb. The breaker is certified to major industry standards including UL, CSA, IEC, and CE, and employs a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions for coordinated protection. It is typically applied in panelboards and switchboards for motor and feeder circuit protection, with an interrupting capacity of 65kA at 480V and an operational temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: EGH Series, Molded Case, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 3 in (Width)
  • Standards: UL Listed, CSA Certified, IEC Rated, CE Marked
  • Applications: Industrial Panelboards, Switchboards, Motor & Feeder Protection
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: LI (Long Time and Instantaneous)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3 lb
  • Family: Series G
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786685381879
  • GTIN: 00786685381879
