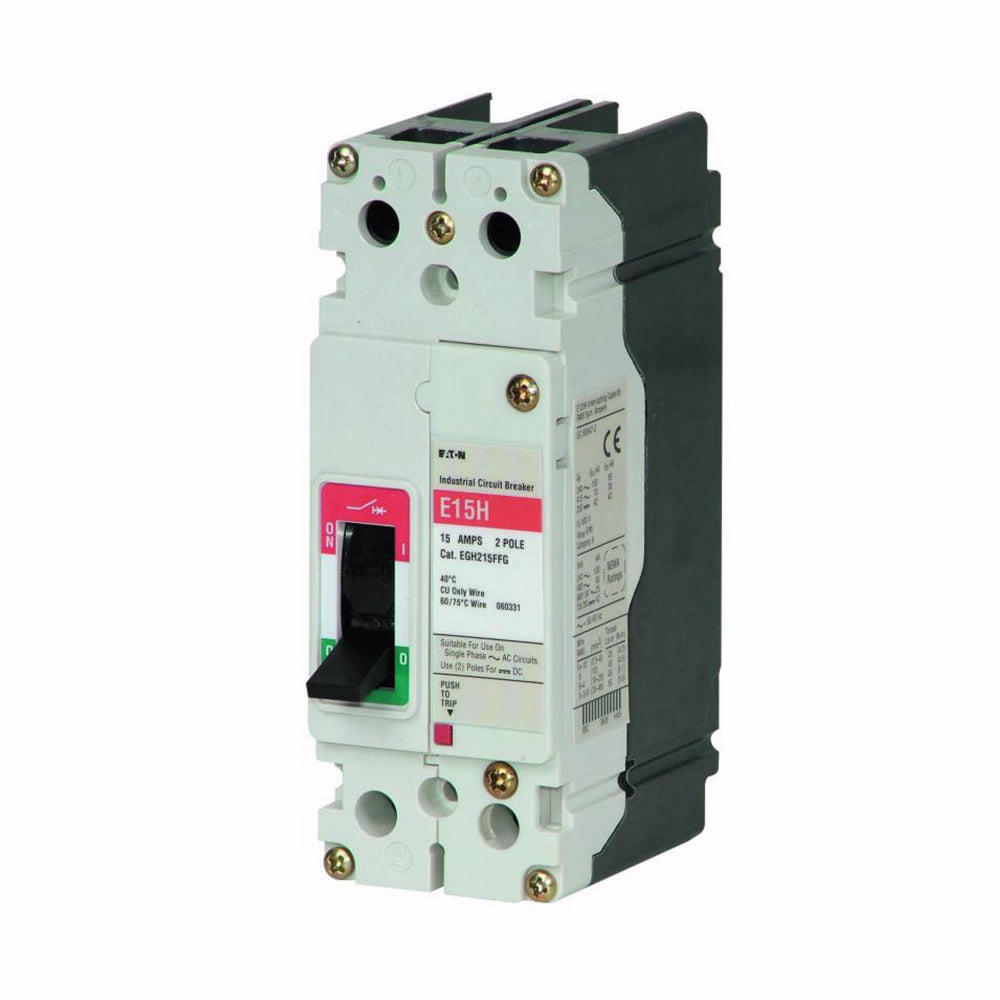

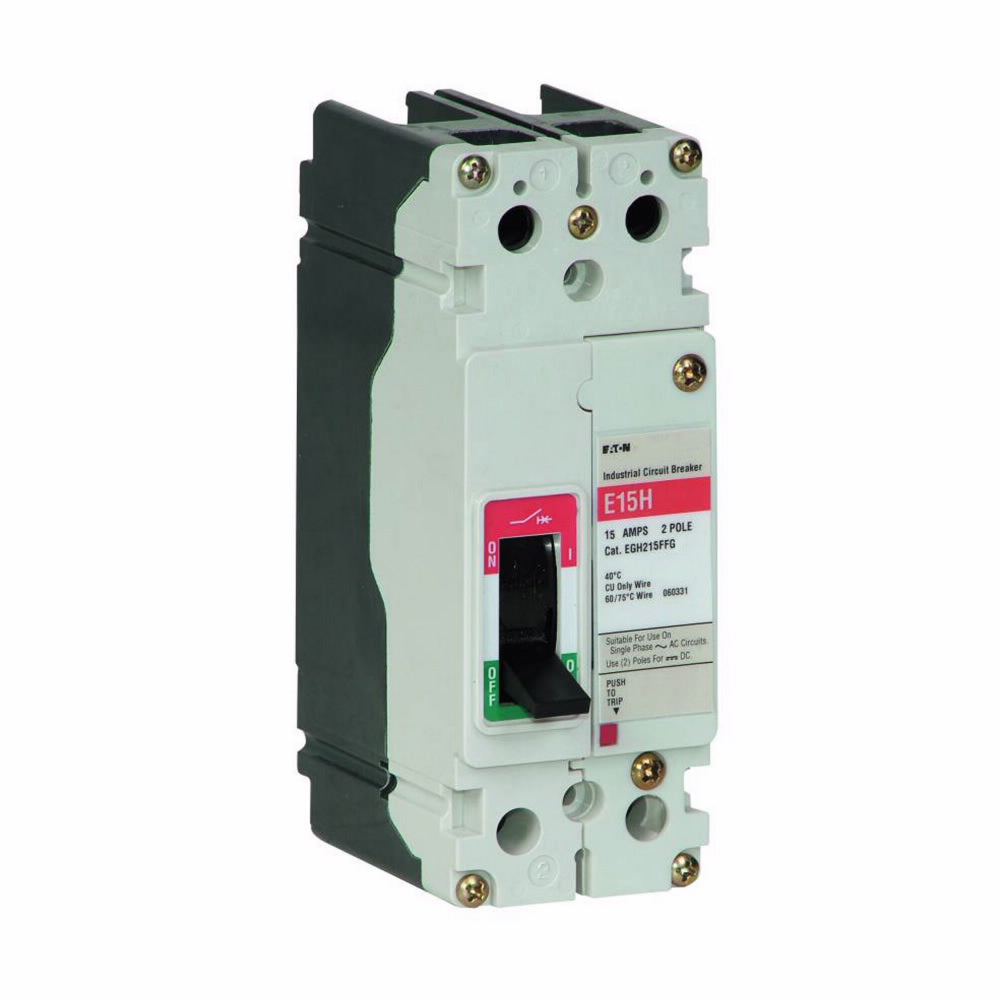

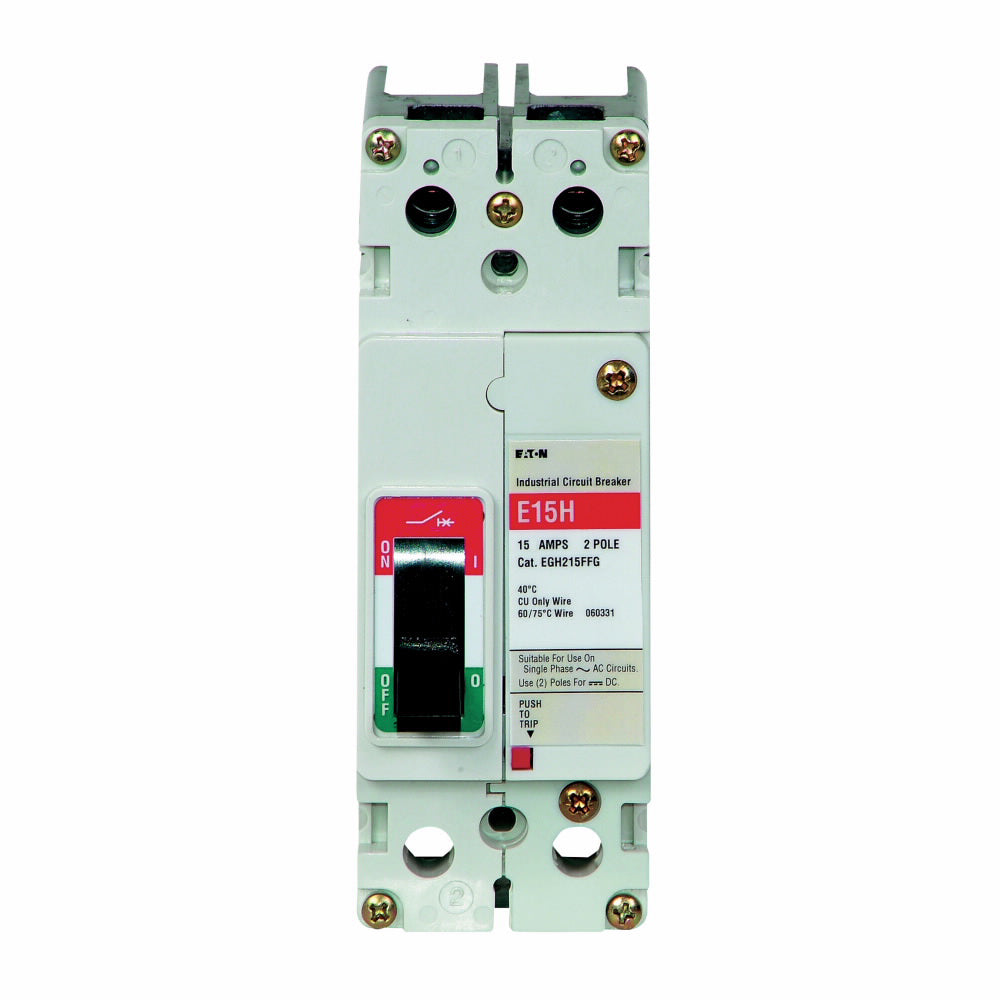

Cutler Hammer EGE2015FFG - 2-Pole Molded Case Breaker (15A, 600V)

Price
Regular price $400.62
Regular price $737.00 Sale price $400.62
Save $336.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer EGE2015FFG is a molded case circuit breaker designed for reliable overcurrent protection in industrial electrical systems. It provides 15A thermal-magnetic protection with a 600V AC voltage rating and a 25kA interrupting capacity at 480V AC. The compact two-pole unit features a feed-thru connection style and measures 2.99" x 5.5" x 2" (LxHxW) with a weight of 0.99 lb, operating within a temperature range of -25°C to 70°C (-13°F to 158°F). It is certified to major industry standards including UL, CSA, IEC, and CE, ensuring compliance for integration into panelboards, switchboards, and industrial control panels for motor and branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Series G, EGE Type, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 2 in (Width)
  • Standards: UL Listed, CSA Certified, IEC Rated, CE Marked
  • Applications: Industrial Panelboards, Switchboards, Motor & Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 25kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Frame Size: Series G
  • Weight: 0.99 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786685018584
  • GTIN: 00786685018584
