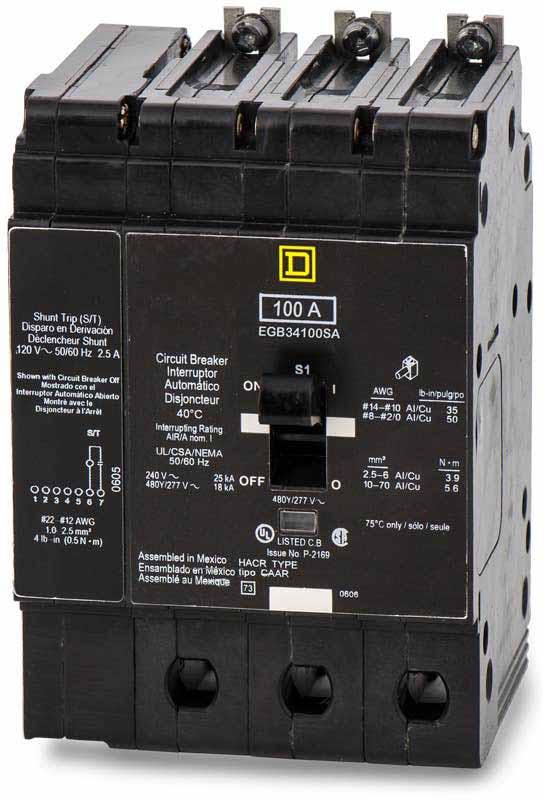

Square D EGB34100SA - Molded Case Circuit Breaker 100A 480V 3P
Square D EGB34100SA - Molded Case Circuit Breaker 100A 480V 3P

Square D EGB34100SA - Molded Case Circuit Breaker 100A 480V 3P

Square D
Price
Save $150.29
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D EGB34100SA is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A continuous current rating and a 480V AC voltage rating, with a robust thermal-magnetic trip unit offering both long-time and instantaneous protection functions. The breaker's compact, bolt-on construction measures 143.76 mm H x 99.57 mm W x 102.87 mm D and weighs 4.17 lb, built to UL standards with a 35kA interrupting capacity at 480V. It is compliant with industry safety certifications and is typically applied in panelboards, switchboards, and industrial control panels where a 120V shunt trip for remote disconnection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 5.66 in (143.76 mm) H x 3.92 in (99.57 mm) W x 4.05 in (102.87 mm) D
  • Standards: UL Certified
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Connection: Bolt-On
  • Wire Size: Accepts AWG 12 to 2/0 Copper, AWG 14 to 2/0 Aluminum
  • Additional Info: Includes 120V Shunt Trip
  • Weight: 4.17 lb


Product Identification
  • UPC: 785901159483
  • GTIN: 00785901159483
