Cutler Hammer EGB3125FFG - 3P Molded Case Breaker, 125A 480V

Price
Regular price $1,083.81
Regular price $1,893.00 Sale price $1,083.81
Save $809.19
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon

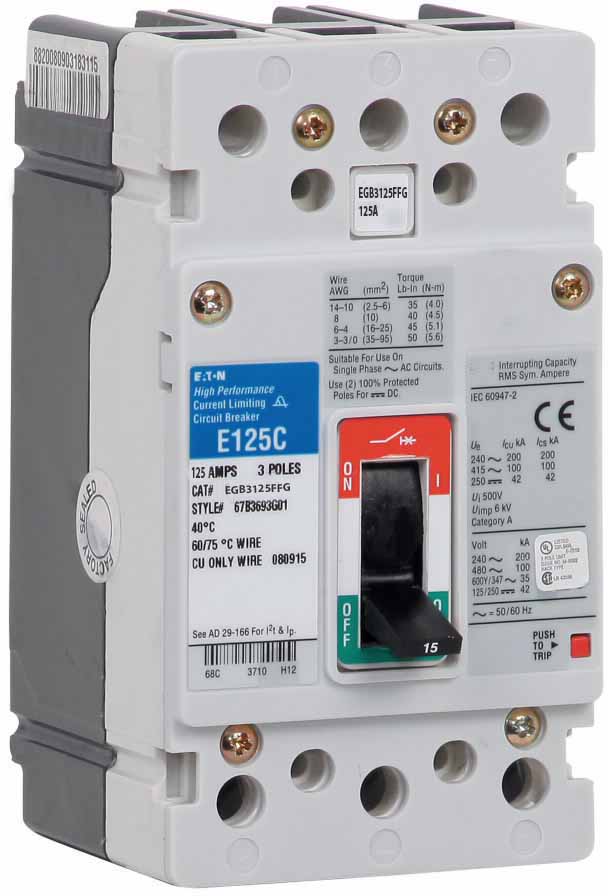

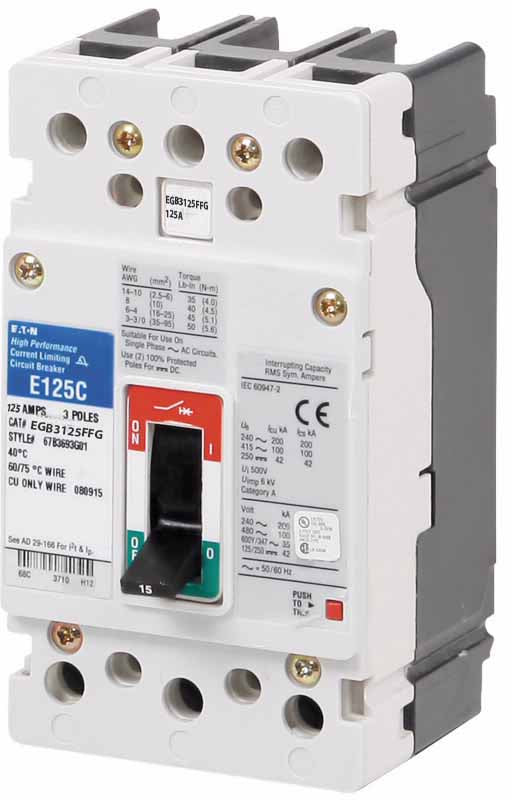

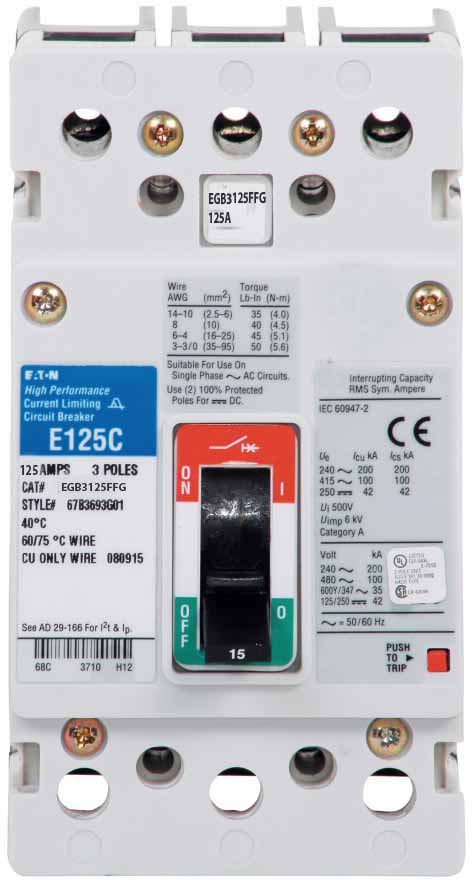

Cutler Hammer EGB3125FFG is a three-pole molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features a 125A continuous current rating and a 480V AC voltage rating, with a compact physical footprint of 2.99 in (D) x 5.5 in (H) x 3 in (W) and a weight of 2.93 lb. The breaker utilizes a thermal-magnetic trip mechanism for Long-Time and Instantaneous (LI) protection functions and is certified to IEC, CSA, UL, and CE standards for global compliance. Its 18kA interrupting capacity at 480V and feed-thru connection make it suitable for protecting feeders, motors, and other equipment in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 480V AC
  • Current Rating: 125A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 3 in (Width)
  • Standards: IEC Rated, CSA Certified, UL Listed, CE Marked
  • Applications: Industrial Power Distribution, Motor Protection, Panelboard Feeders
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • AIC rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Frame Size: Series G
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Weight: 2.93 lb
  • Country of Origin: United States


Product Identification
  • UPC: 782114876442
  • GTIN: 00782114876442
