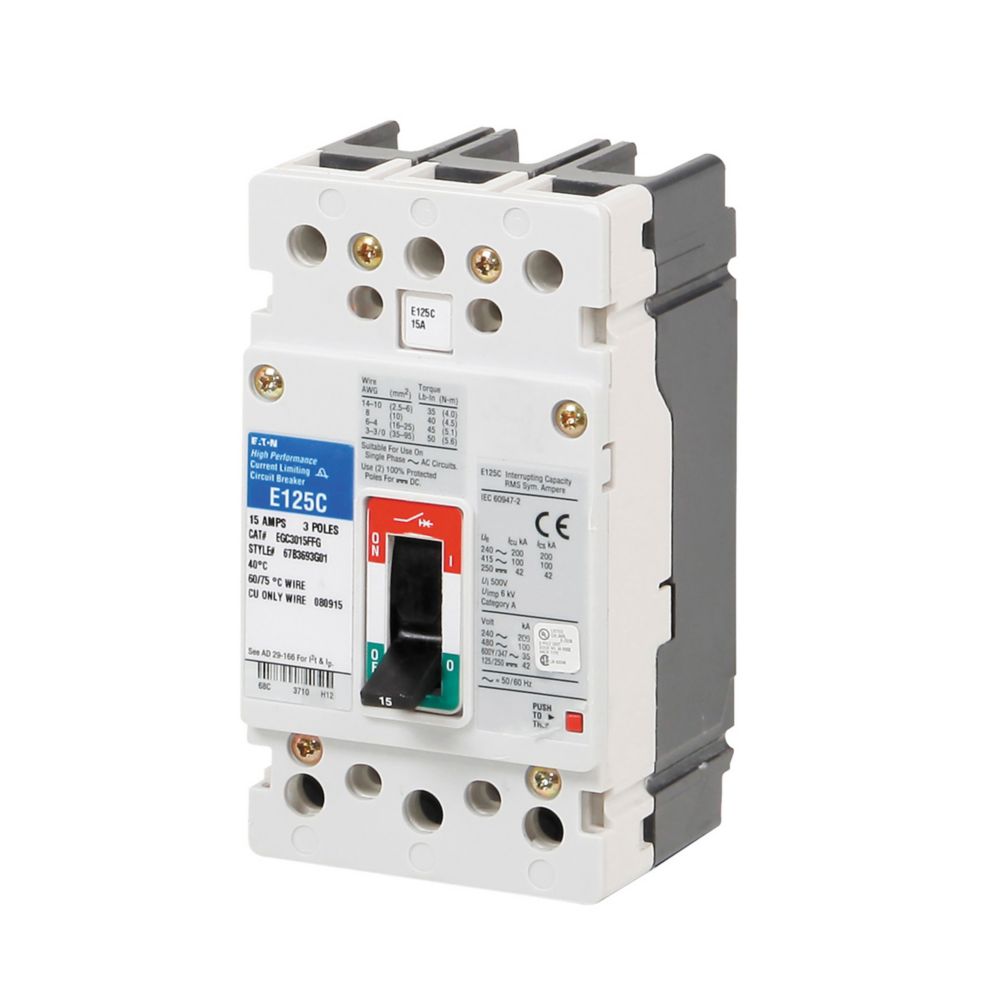

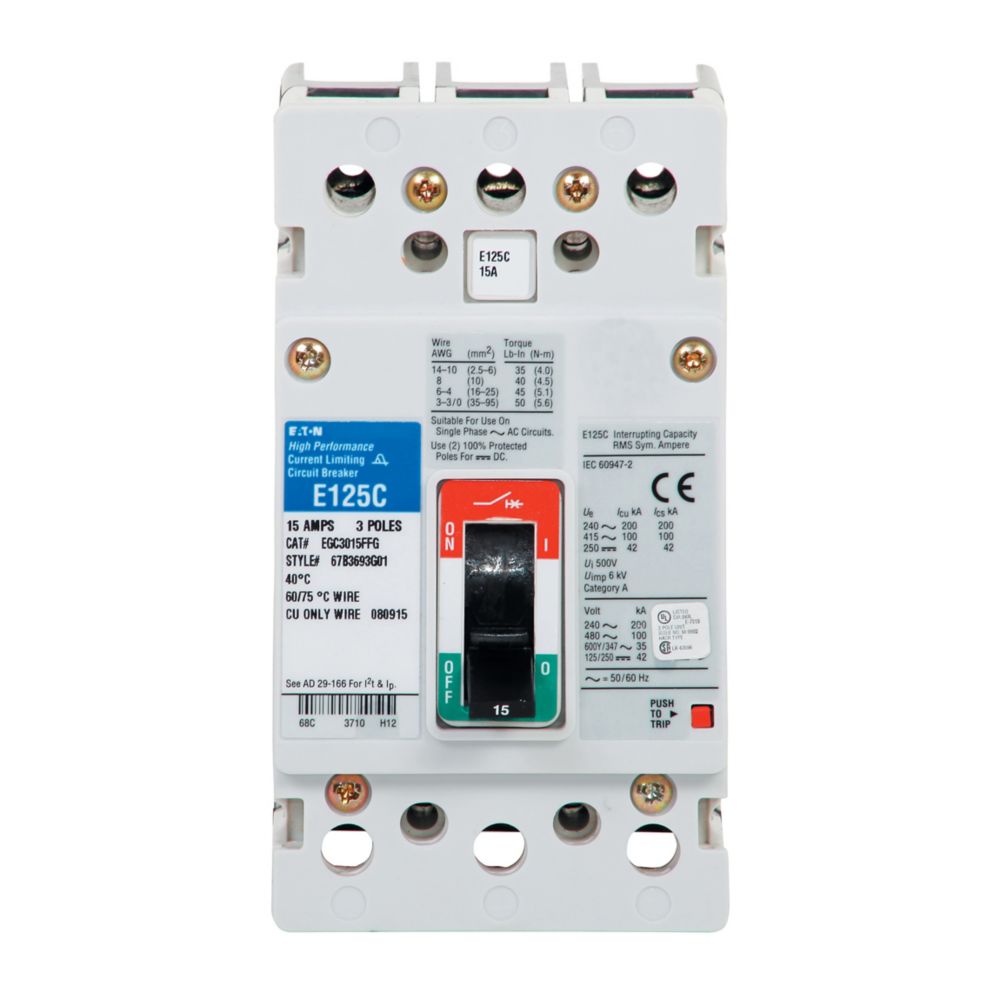

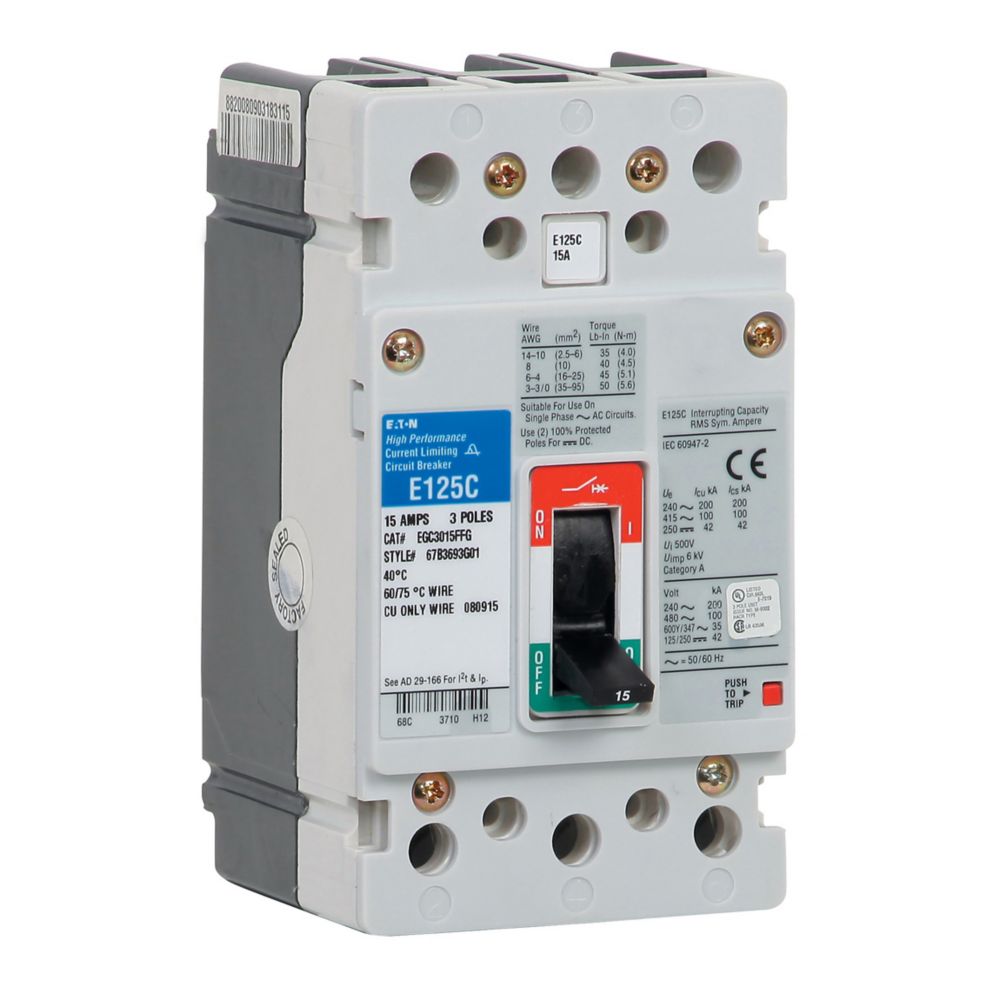

Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P

Cutler Hammer EGB3070FFG - Molded Case Circuit Breaker 70A 480V 3P

Cutler Hammer
Price
Save $693.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer EGB3070FFG is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 480V AC voltage rating, with a compact physical footprint of 2.99 in (D) x 5.5 in (H) x 3 in (W) and a weight of 2.84 lb. The breaker is constructed with a thermal-magnetic trip unit providing Long-time and Instantaneous (LI) protection functions and achieves an interrupting capacity of 18kA at 480V. It complies with major industry standards including UL, IEC, CSA, and CE, ensuring suitability for integration into a wide range of commercial and industrial panelboards and switchgear.

Key Features & Specifications
  • Type: EGB Series G, 3-Pole Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 3 in (Width)
  • Standards: UL Listed, IEC Rated, CSA Certified, CE Marked
  • Applications: Industrial Power Distribution, Panelboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 70A
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-time and Instantaneous)
  • Frame Size: Series G
  • Trip Type: Thermal-Magnetic
  • Certification: UL Listed, IEC Rated, CSA Certified, CE Marked
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Phase Connection: 3-Phase
  • Standards: UL 489, IEC 60947-2
  • Installation Type: Fixed
  • Breaker Frame: Series G
  • Country of Origin: Dominican Republic
  • Weight: 2.84 lb


Product Identification
  • UPC: 782114876398
  • GTIN: 00782114876398
