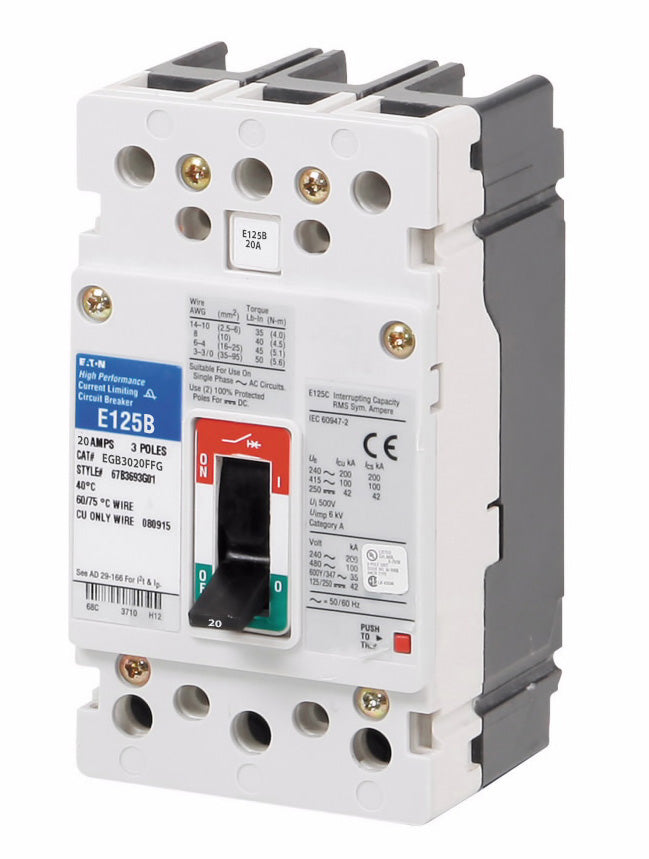

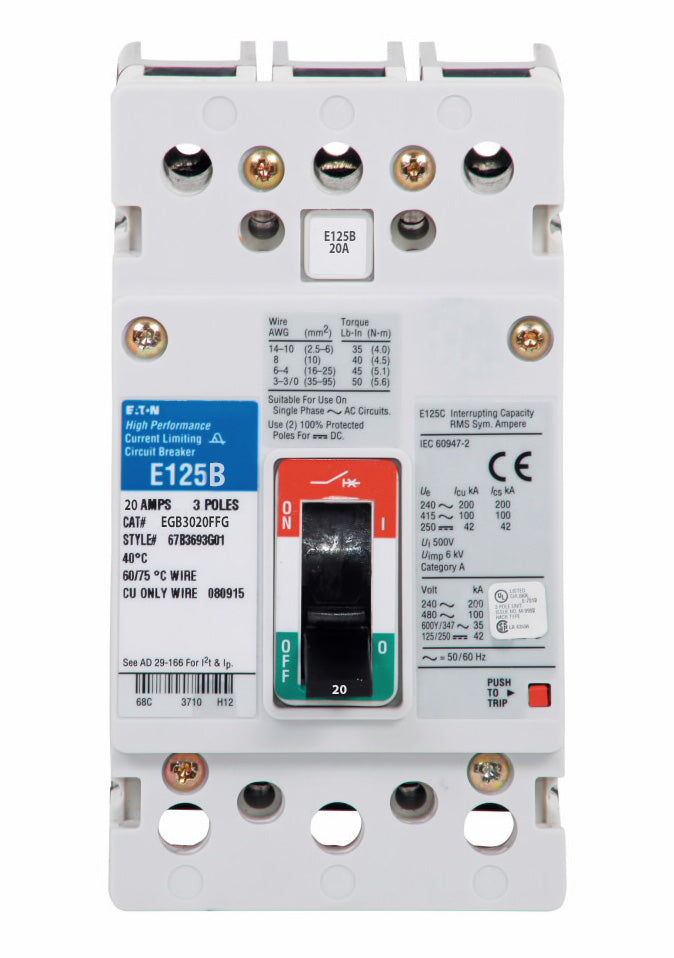

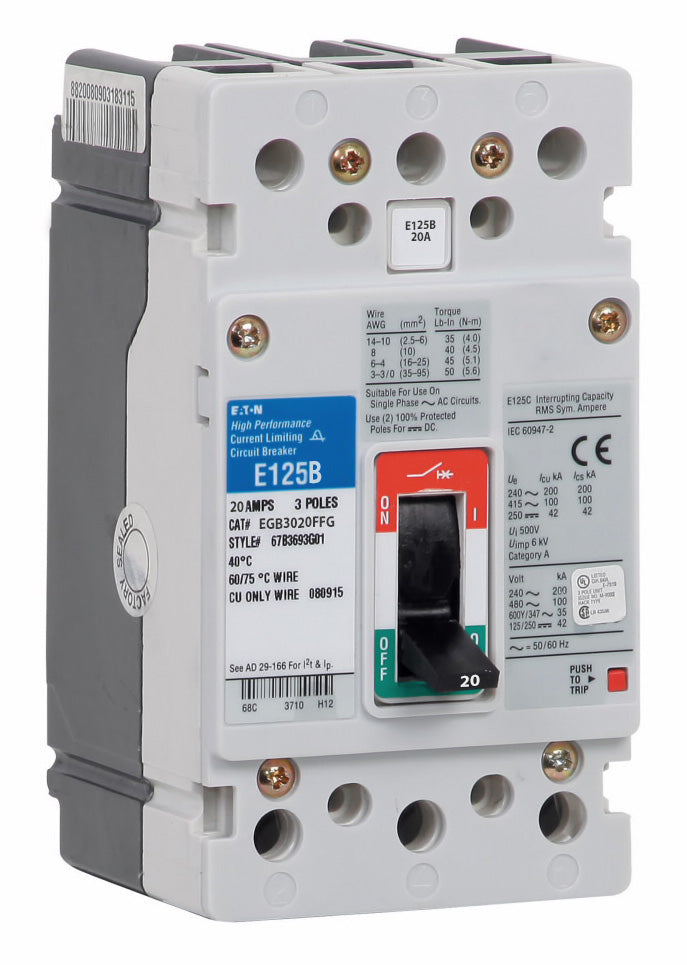

Cutler Hammer EGB3020FFG - Molded Case Circuit Breaker 20A 480V 3P

Price
Regular price $455.98
Regular price $1,126.28 Sale price $455.98
Save $670.30
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Cutler Hammer EGB3020FFG is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed in a compact, durable molded case measuring 2.99" x 5.5" x 3" (LxHxW) and weighing 3 lb. This thermal-magnetic protection device is certified to UL, CSA, IEC, and CE standards for global compliance and operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). Its 18kA interrupting rating at 480V and feed-thru connection make it suitable for protecting motors, feeders, and branch circuits in industrial control panels and distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 2.99 in (Depth) x 5.5 in (Height) x 3 in (Width)
  • Standards: UL Listed, CSA Certified, IEC Rated, CE Marked
  • Applications: Industrial Motor Protection, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: Series G
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782116131303
  • GTIN: 00782116131303
