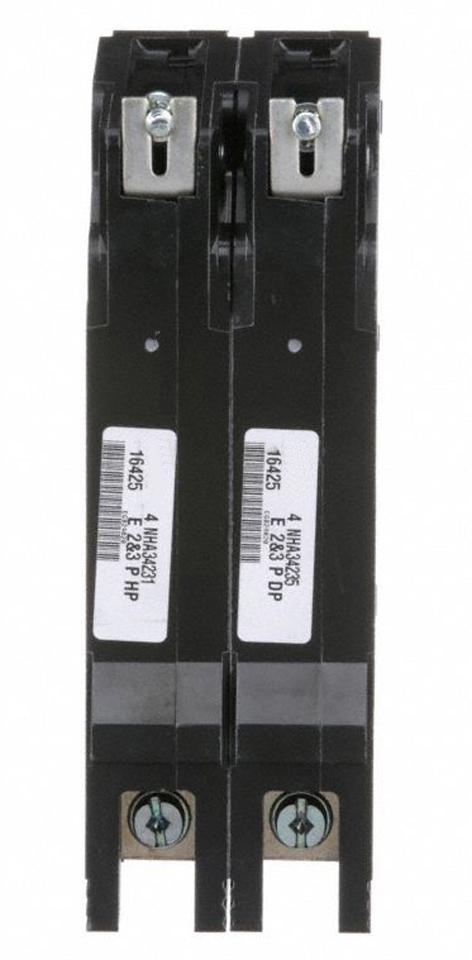

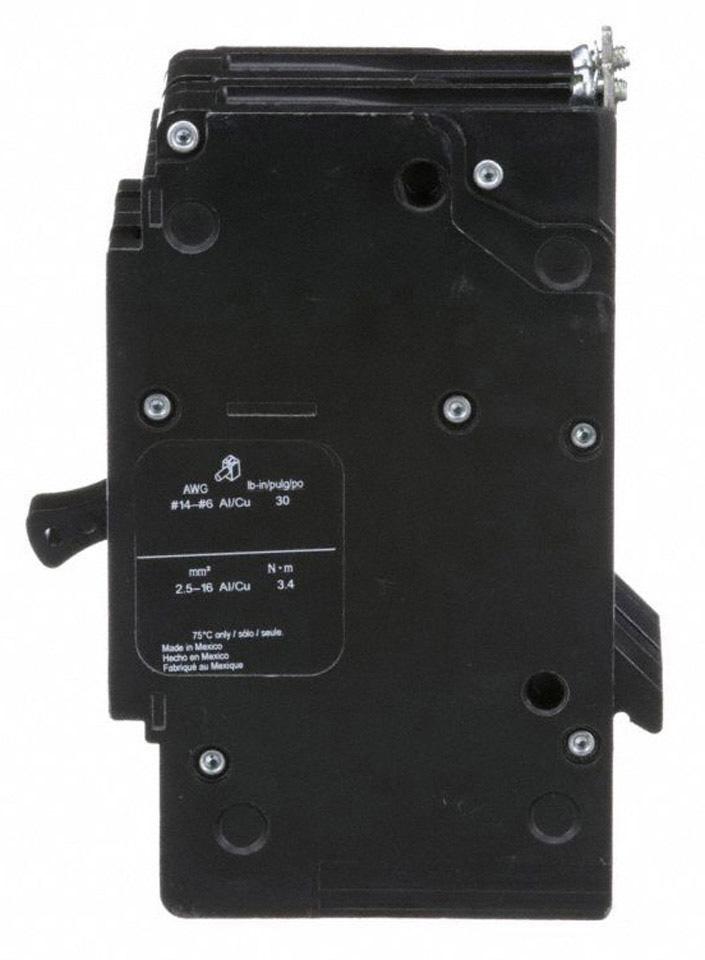

Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)
Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)

Square D EGB24020 - 2-Pole Circuit Breaker 20A 480V (35kA AIC)

Square D
Price
Save $380.28
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

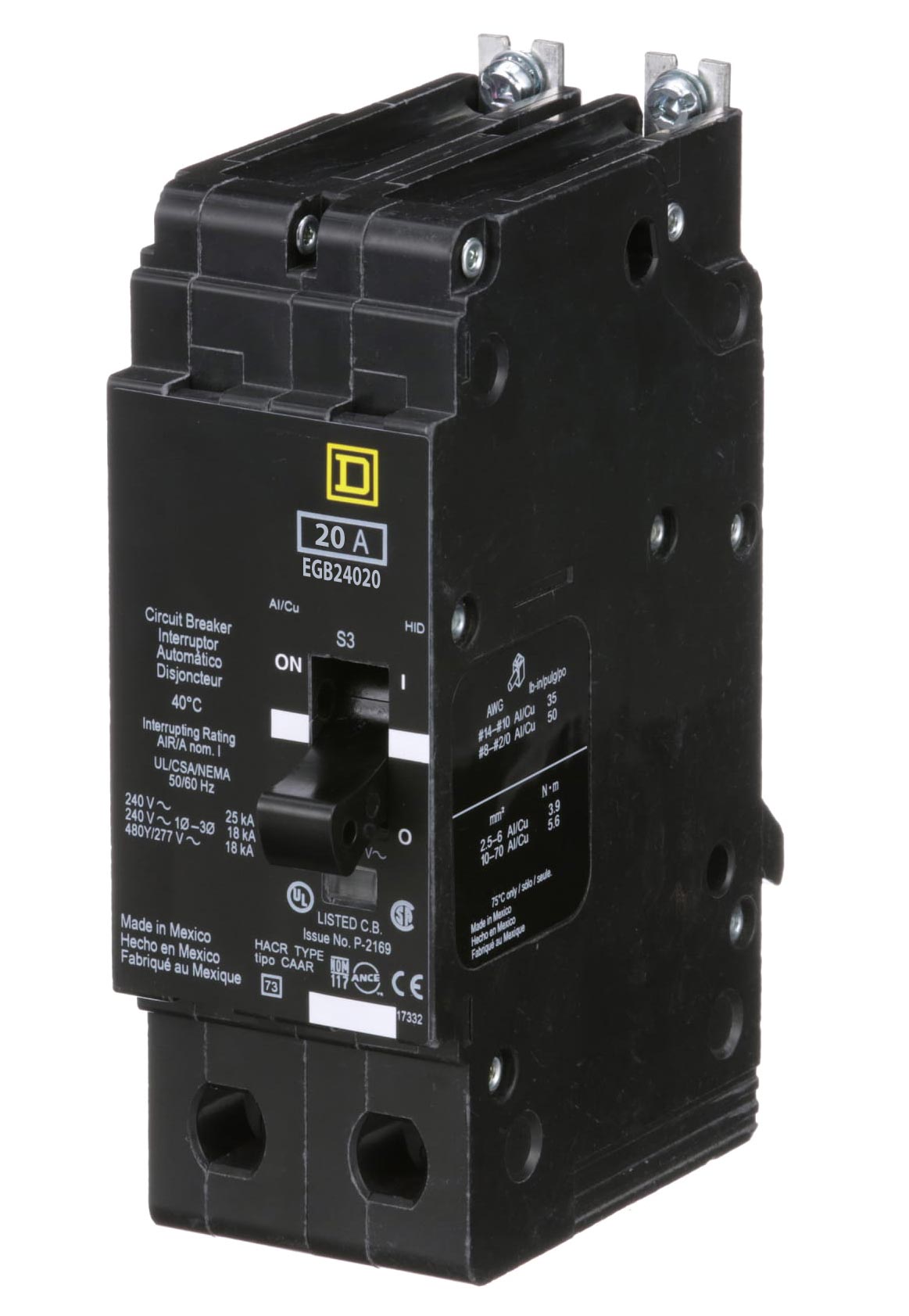

Square D EGB24020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact E-Frame design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.551 lb. This thermal-magnetic breaker is cULus listed and provides 35kA interrupting capacity at 480V, with an operational temperature range of -25 to 70 °C. Its two-pole, bolt-on configuration with lug terminals is engineered for installation in NF panelboards, accommodating copper wire from AWG 14 to 6 and aluminum wire from AWG 12 to 6.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Standards & Certification: cULus
  • Applications: Industrial panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Connection: Bolt-on, Lug Terminal
  • AIC Rating: 35kA @ 480V
  • Phase: 1
  • Frame Size: G; E-Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: NF Panelboard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 12 to 6 (Aluminum), AWG 14 to 6 (Copper)
  • Weight: 2.551 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901311119
  • GTIN: 00785901311119
