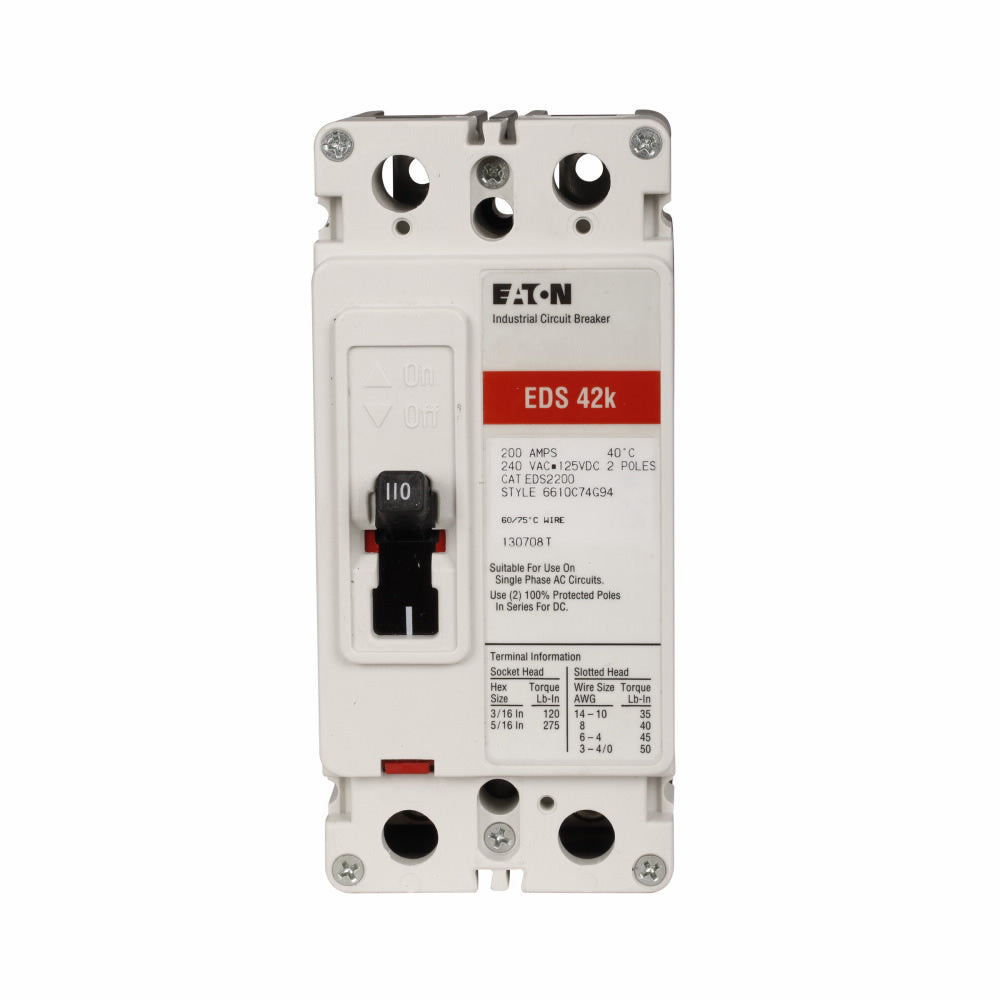

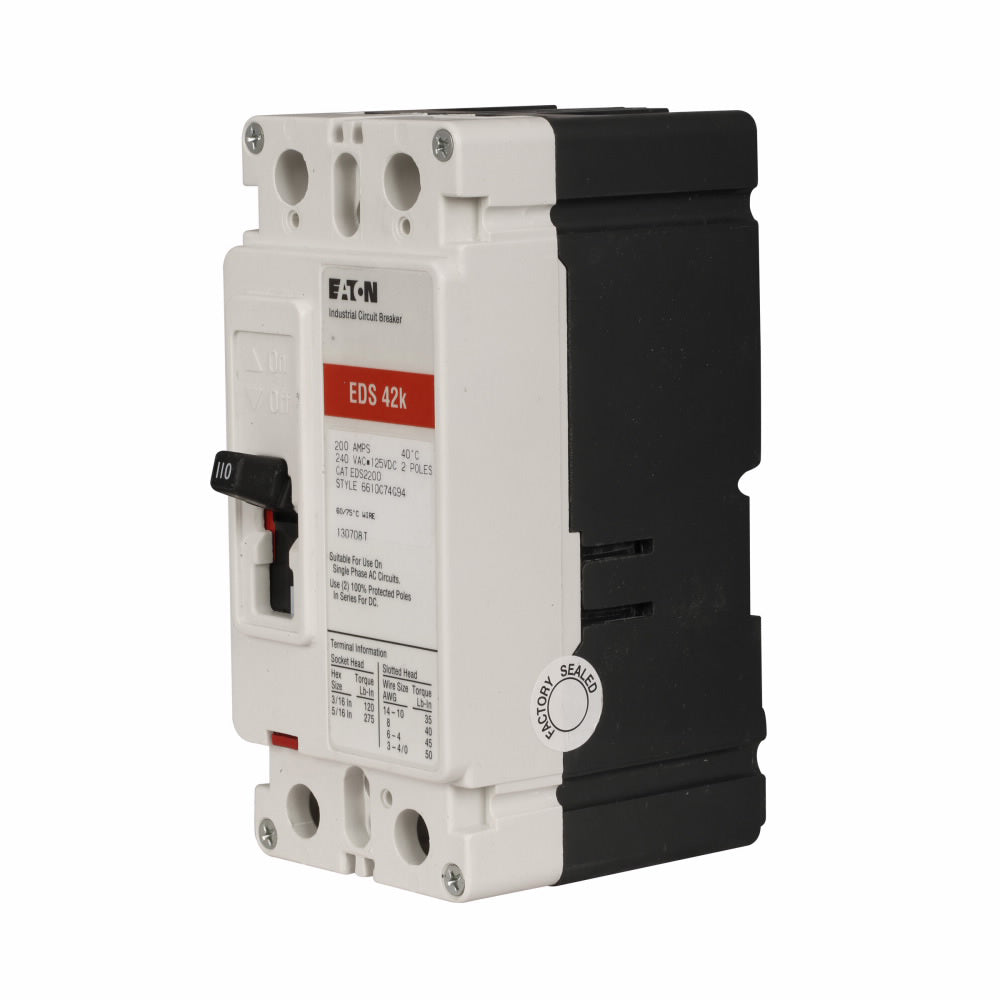

Cutler Hammer EDS2200 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 200A current rating and a 240V voltage rating, housed within a compact F-frame measuring 3.38 in x 6 in x 4.13 in (L/D x H x W) with a bolt-on connection. This UL Listed, thermal-magnetic protection device offers an interrupting capacity of 42kA at 240V and operates across a temperature range of -25 to 70 °C (-13 to 158 °F). Its long-time and instantaneous trip functions make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, EDS Series C
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
  • Standards: UL Listed
  • Applications: Industrial Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 2
  • AIC Rating: 42kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Mounting: Panel Mount
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Bolt-On
  • Standards: UL
  • Installation Type: Fixed
  • Weight: 3 lb


Product Identification
  • UPC: 782116152612
  • GTIN: 00782116152612
