Edison Fuses EDCC32 - Class CC Fuse 32A 600VAC
Edison Fuses EDCC32 - Class CC Fuse 32A 600VAC

Edison Fuses EDCC32 - Class CC Fuse 32A 600VAC

Edison Fuses
Price
Save $59.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

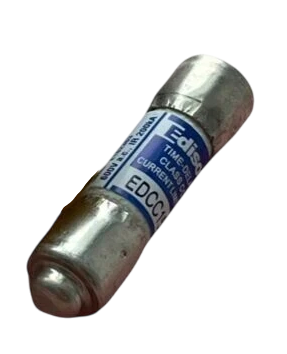

The Edison Fuses EDCC32 is a Class CC fuse designed for branch circuit protection of motor circuits, lighting, and control power transformers. It is rated for 600 Volts AC and carries a current rating of 32 Amperes, providing a high interrupting capacity of 200,000 Amperes RMS Symmetrical. This fuse features a compact, 13/32-inch diameter by 1-1/2-inch length body with ferrule end connections, constructed with a melamine tube and a silver-plated copper element for reliable performance. The EDCC32 complies with UL 248-4 and CSA C22.2 No. 248.4 standards, ensuring safe operation in demanding environments. Typical applications include industrial control panels, motor control centers, and equipment requiring rejection-style fuse protection against overcurrents.

Key Features & Specifications
  • Type: Class CC, rejection-style, current-limiting fuse with ferrule contacts
  • Voltage Rating: 600 VAC
  • Current Rating: 32 Amperes
  • Dimensions: 13/32 inch diameter x 1-1/2 inch length
  • Standards: UL 248-4, CSA C22.2 No. 248.4
  • Applications: Branch circuit protection for motors, transformers, lighting, and control circuits
  • AIC Rating: 200,000 Amps RMS Symmetrical
  • Connection: Ferrule
  • Fuse Class: CC
  • Diameter: 13/32 inch
  • Mounting: Clip
  • Hz: 50/60
  • Weight: 5.19 lb


Product Identification
  • UPC: 78263480813
  • GTIN: 00782634808138
