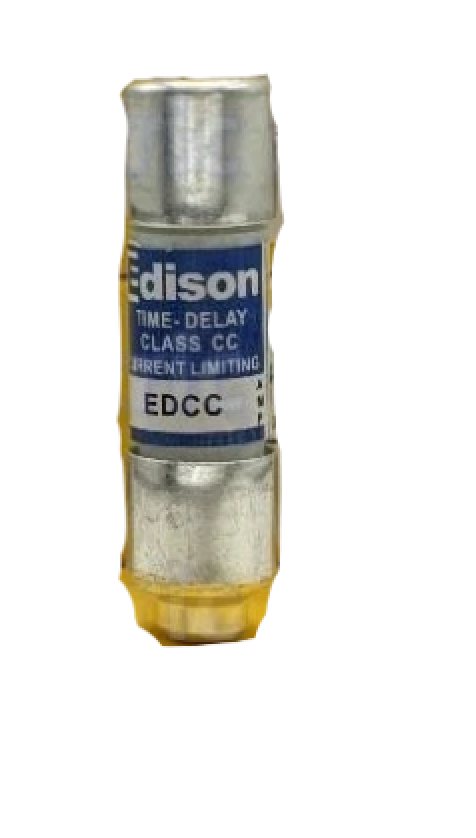

Bussmann EDCC0.5 - Class CC Fuse 0.5A 600V (200kA AIC)

Bussmann EDCC0.5 is a Class CC fuse designed for providing precise overcurrent protection in low voltage control circuits. It features a 0.5A current rating and a 600V AC voltage rating, ensuring reliable operation in demanding electrical environments. The fuse is constructed as a single-barrel device with a compact 0.41-inch diameter and a robust build, weighing 5.19 lb for secure mounting. It complies with industry standards for Class CC fuses and offers a high 200kA interrupting rating at 600V for superior fault current protection. Typical applications include the protection of control transformers, solenoids, and other sensitive industrial control components where accurate current limitation is critical.

Key Features & Specifications

• Type: Class CC, fast-acting, single-barrel fuse
• Voltage Rating: 600V AC
• Current Rating: 0.5A
• Dimensions: 0.41-inch diameter
• Standards: Class CC fuse standards
• Applications: Control transformers, solenoids, industrial control circuits
• AIC rating: 200kA@600V
• Family: EDCC Series
• Item Subcategory: Low Voltage
• Weight: 5.19 lb
• Barrels: 1
• Class Rating: CC
