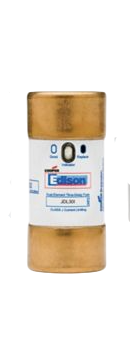

Edison Fuses EDCC.6 - Class CC 0.6A 600VAC Fuse
Edison Fuses EDCC.6 - Class CC 0.6A 600VAC Fuse

Edison Fuses EDCC.6 - Class CC 0.6A 600VAC Fuse

Edison Fuses
Price
Save $61.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Edison Fuses EDCC.6 is a 600VAC/250VDC, 0.6A Class CC cartridge fuse designed for branch circuit protection of control power transformers, motors, and lighting systems. This current-limiting fuse provides a 200,000A interrupting rating to safely clear high fault currents while offering superior protection for sensitive equipment. The compact 1.5-inch long by 0.41-inch diameter ferrule-style body is constructed with a glass tube and nickel-plated brass end caps, weighing 0.19 lb. It complies with UL 248-4 and CSA C22.2 No. 248.4 standards for Class CC fuses. Typical applications include control panels, motor control centers, and industrial machinery requiring reliable overcurrent protection in a space-saving form factor.

Key Features & Specifications
  • Type: Class CC, current-limiting, time-delay fuse with glass tube and nickel-plated brass end caps
  • Voltage Rating: 600VAC / 250VDC
  • Current Rating: 0.6A
  • Dimensions: 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
  • Standards: UL 248-4, CSA C22.2 No. 248.4
  • Applications: Branch circuit protection for control power transformers, motors, lighting, and industrial machinery
  • AIC Rating: 200,000A RMS Symmetrical
  • Fuse Class: CC
  • Diameter: 0.41 in
  • Mounting: Ferrule
  • Weight: 0.19 lb


Product Identification
  • UPC: 78263480799
  • GTIN: 00782634807995
