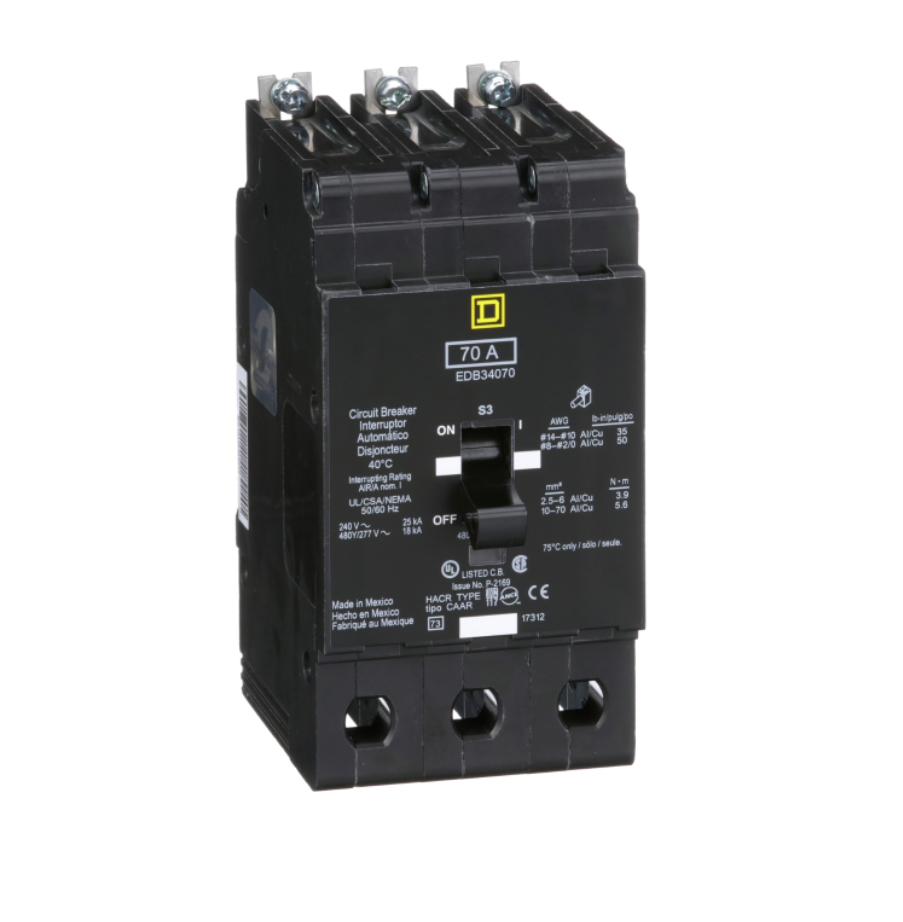

Square D EDB34070 - 70A 3-Pole Molded Case Circuit Breaker

Price
Regular price $320.07
Regular price $911.00 Sale price $320.07
Save $590.93
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D EDB34070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 480Y/277V AC voltage rating, housed within a compact, bolt-on configuration measuring 143.76 mm H x 74.68 mm W x 102.87 mm D and weighing 3.45 lb. The breaker is constructed with thermal-magnetic trip protection offering long-time and instantaneous (LI) functions, is certified to cULus and IEC standards, and provides an interrupting capacity of 18kA at 480V. Its design is suitable for installation in NF-style panelboards, accommodating wire sizes from AWG 12 to 2/0 for aluminum and AWG 14 to 2/0 for copper via lug terminals, and is rated for operation in ambient temperatures up to 40°C (104°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 70 Amps
  • Frame Size: 125A/EDB
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Phase: 3
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Panel Type: NF Panelboard
  • Standards & Certification: cULus, IEC
  • Dimensions: 5.66 in (143.76 mm) H x 2.94 in (74.68 mm) W x 4.05 in (102.87 mm) D
  • Weight: 3.45 lb
  • Temp Rating: 104°F (40°C)
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901875352
  • GTIN: 00785901875352
