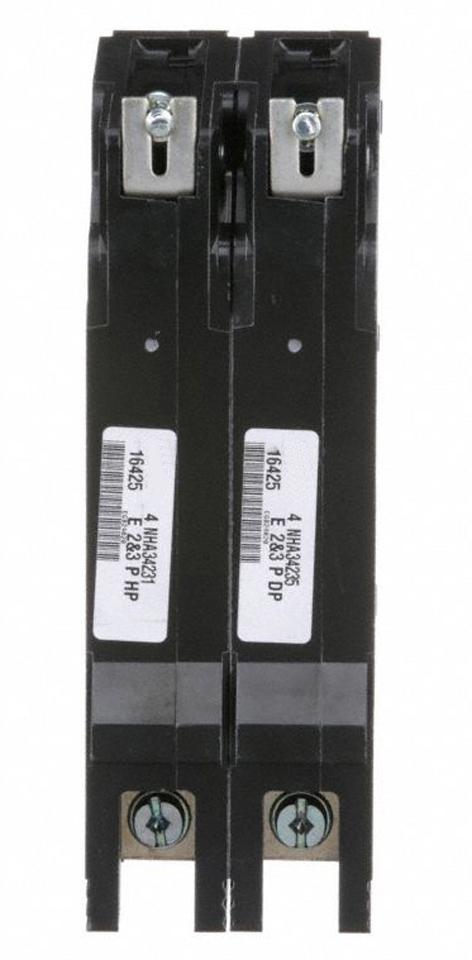

Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D EDB26015 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $199.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EDB26015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact D/E-Frame with dimensions of 143.76 mm H x 49.78 mm W x 102.87 mm D and a weight of 2.619 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, utilizes a bolt-on connection with lug terminals, and is certified to cULus and IEC standards for safety and interoperability. Its typical application is within 1-phase NF panelboards, where it provides an interrupting capacity of 18kA at 480V and accommodates wire sizes from 6 to 12 AWG for aluminum or 6 to 14 AWG for copper, operating in ambient temperatures up to 40°C (104°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time and Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Weight: 2.619 lb
  • Standards & Certification: cULus, IEC
  • Applications: 1-Phase NF Panelboards, Industrial Electrical Distribution
  • Frame Size: D; E-Frame
  • Poles: 2
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • AIC Rating: 18kA @ 480V
  • Phase: 1
  • Temp Rating: 40 °C (104 °F)
  • Wire Size: 12-6 AWG (Al), 14-6 AWG (Cu)
  • Panel Type: NF panelboard
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Country of Origin: Mexico
  • Family: EDB Series


Product Identification
  • UPC: 785901234500
  • GTIN: 00785901234500
