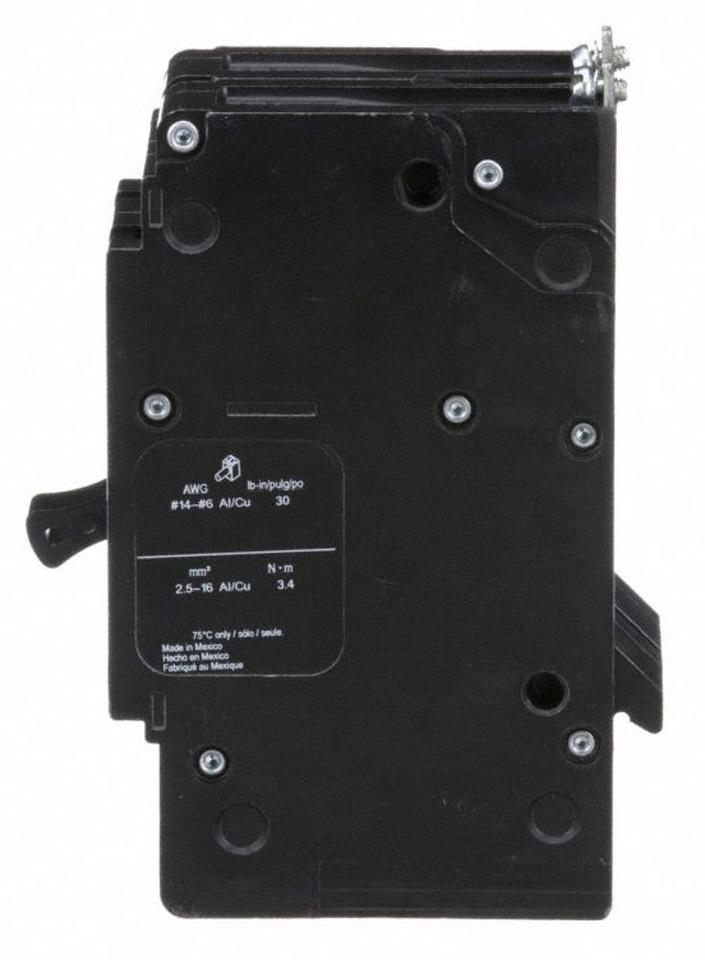

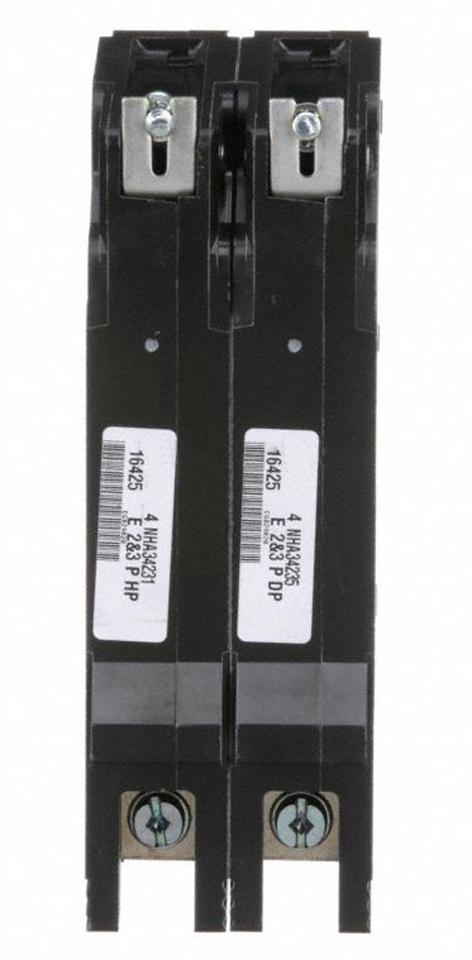

Square D EDB24020 - Molded Case Circuit Breaker 20A 480V 2-Pole

Price
Regular price $180.83
Regular price $536.00 Sale price $180.83
Save $355.17
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

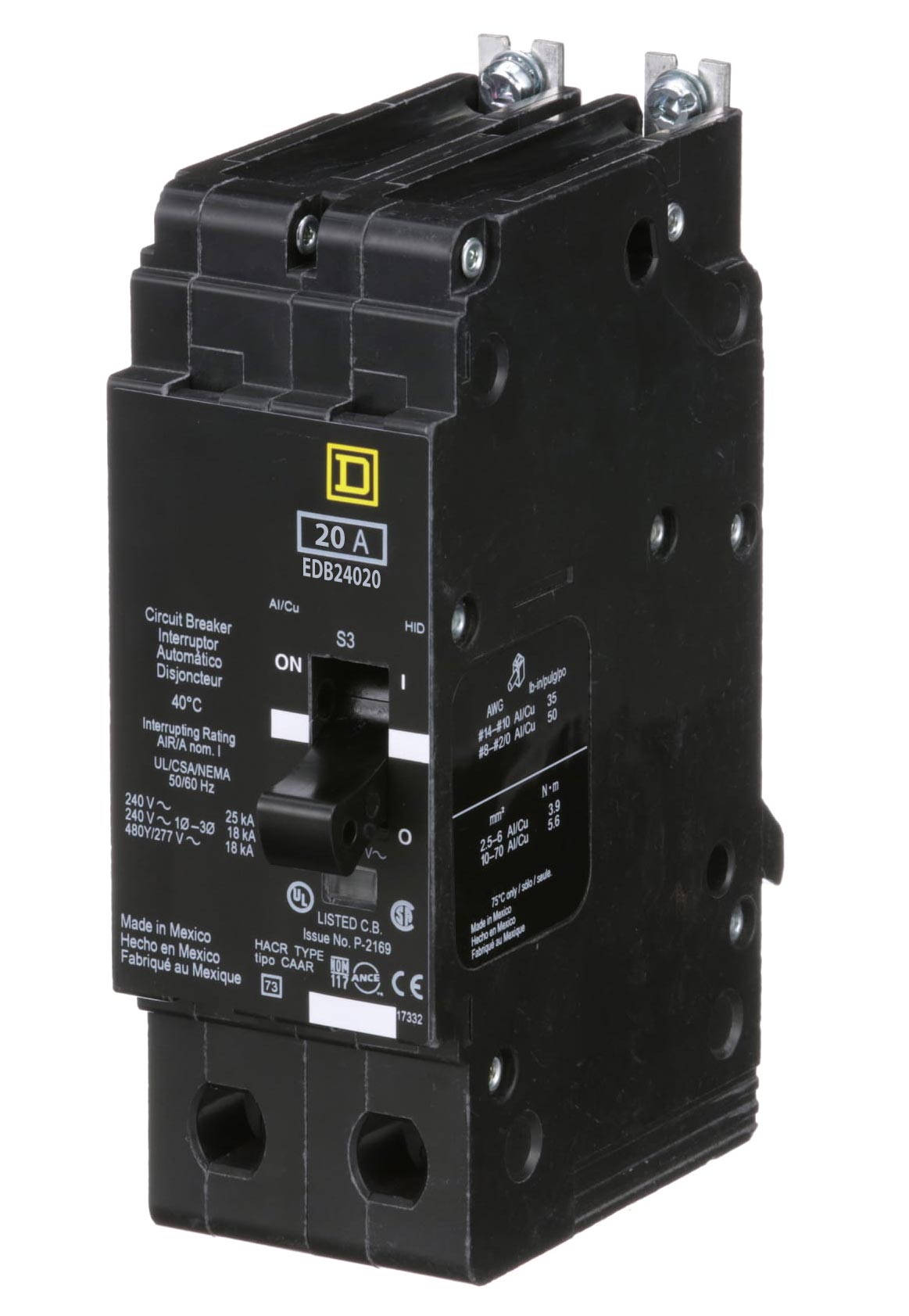

Square D EDB24020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 480Y/277V AC voltage rating, housed within a compact, durable frame measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.65 lb. This thermal magnetic breaker is constructed with a bolt-on connection and lug terminals, complying with cULus and IEC standards for safety and interoperability. Its 18kA interrupting rating at 480V and compatibility with NF panelboards make it suitable for protecting branch circuits in a wide range of single-phase applications.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 20A
  • Frame Size: 125A/EDB
  • Poles: 2
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Protection: LI (Long-Time & Instantaneous Trip)
  • Phase: 1
  • Panel Type: NF Panelboard
  • Wire Size: 12-6 AWG (Aluminum), 14-6 AWG (Copper)
  • Standards & Certification: cULus, IEC
  • Temp Rating: 40°C (104°F)
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Weight: 2.65 lb
  • Family: EDB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901879015
  • GTIN: 00785901879015
