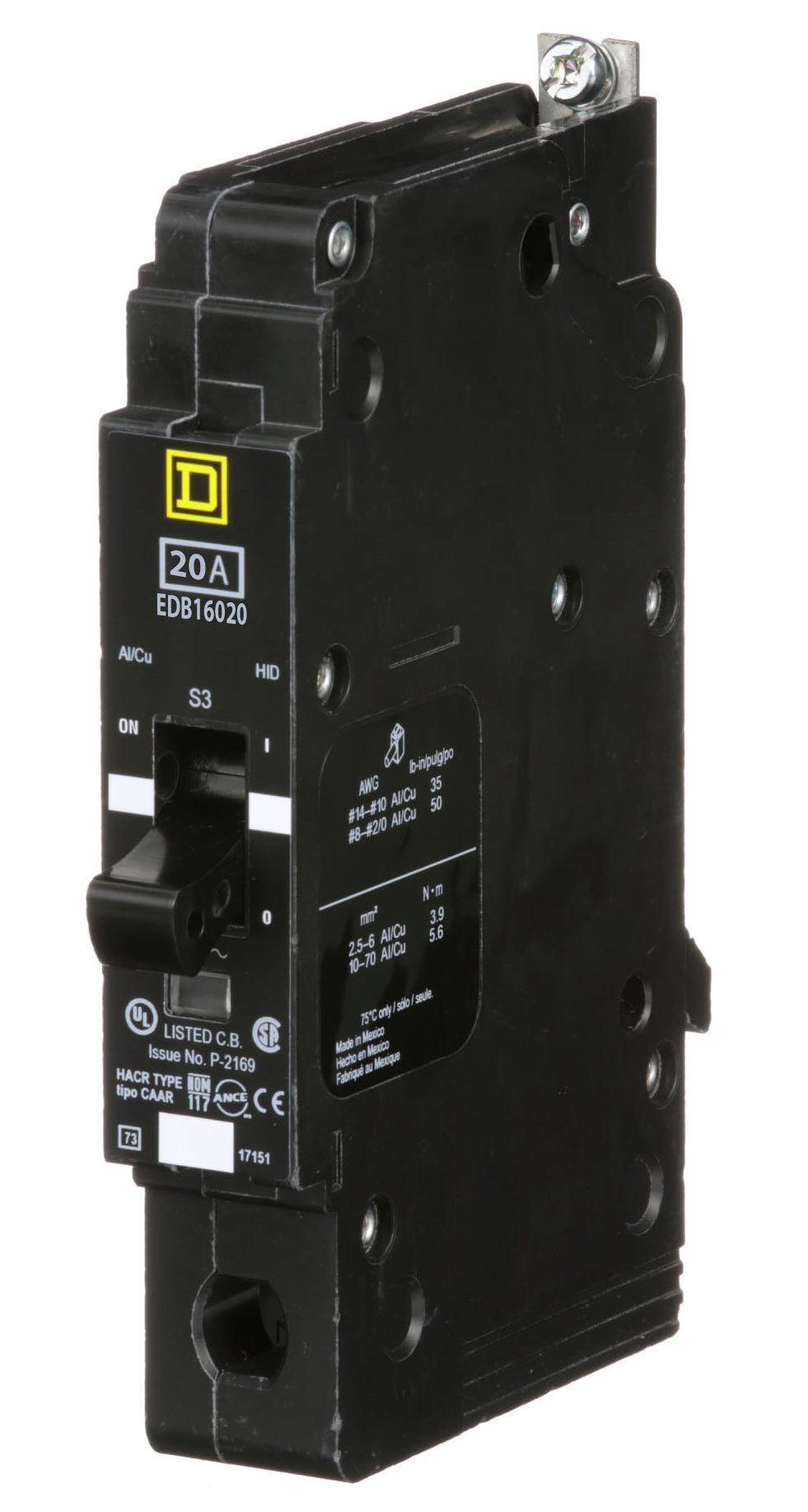

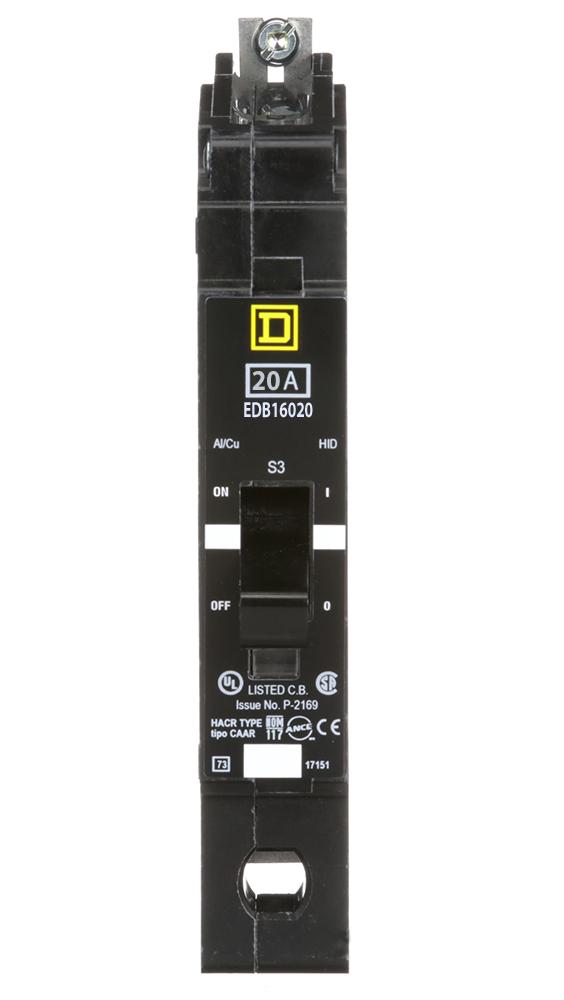

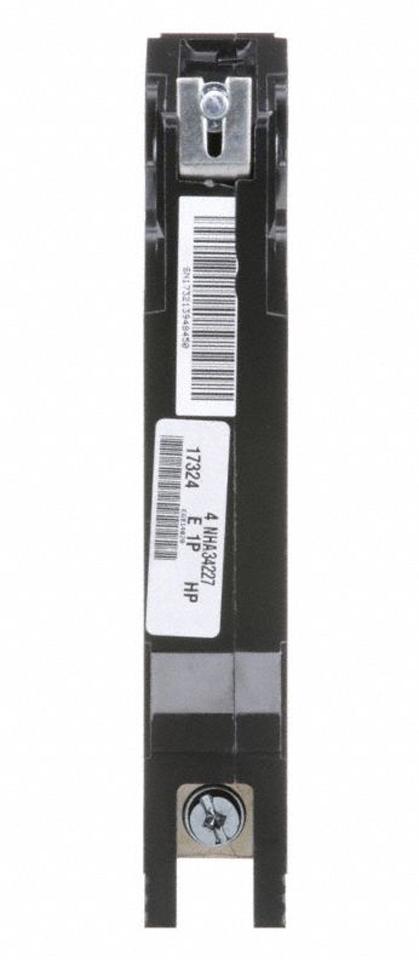

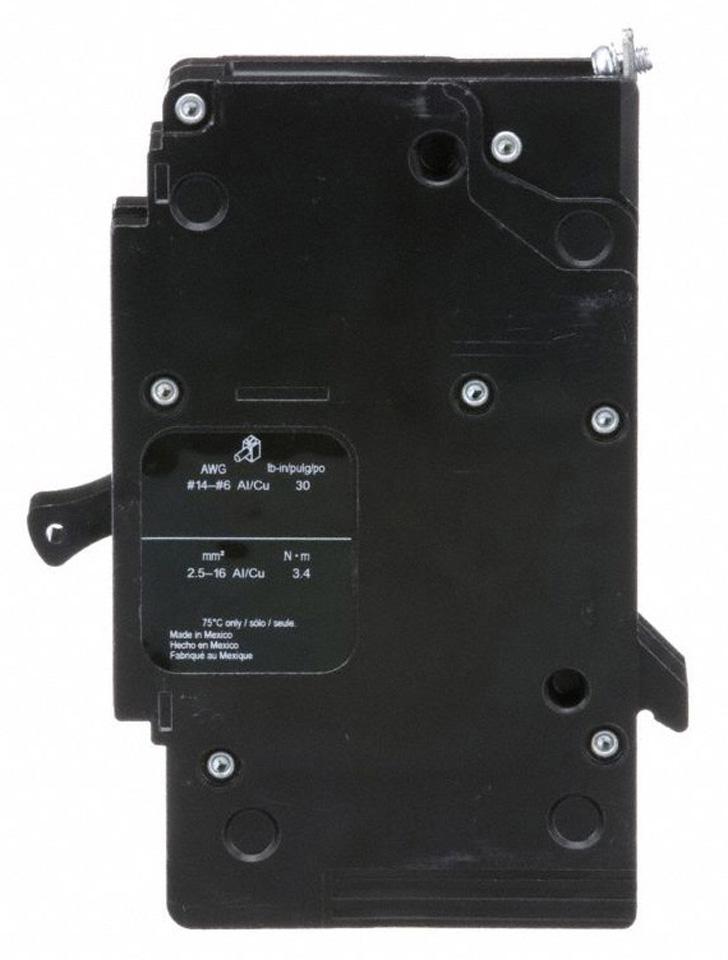

Square D EDB16020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 20A current rating and a 600V voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.35 lb. This thermal magnetic breaker is certified to cULus and IEC standards, ensuring compliance for safety and performance. It is engineered for use in NF panelboards, offering protection for single-phase circuits with an interrupting capacity of 18kA at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, LI (Long-Time and Instantaneous) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Standards: cULus, IEC
  • Applications: Industrial panelboard protection for lighting, appliance, and branch circuits
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: D; E-Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: NF Panelboard
  • Breaker Type: Molded Case
  • Temp Rating: 40 °C (104 °F)
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Wire Size: AWG 12 to AWG 6 aluminum; AWG 14 to AWG 6 copper
  • Certification: cULus, IEC
  • Mounting: Bolt-On
  • Enclosure: Molded Case
  • Terminal Connection: Lug
  • Standards: cULus, IEC
  • Compatible Frames: NF Panelboard
  • Installation Type: Panel Mount
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901238249
  • GTIN: 00785901238249
