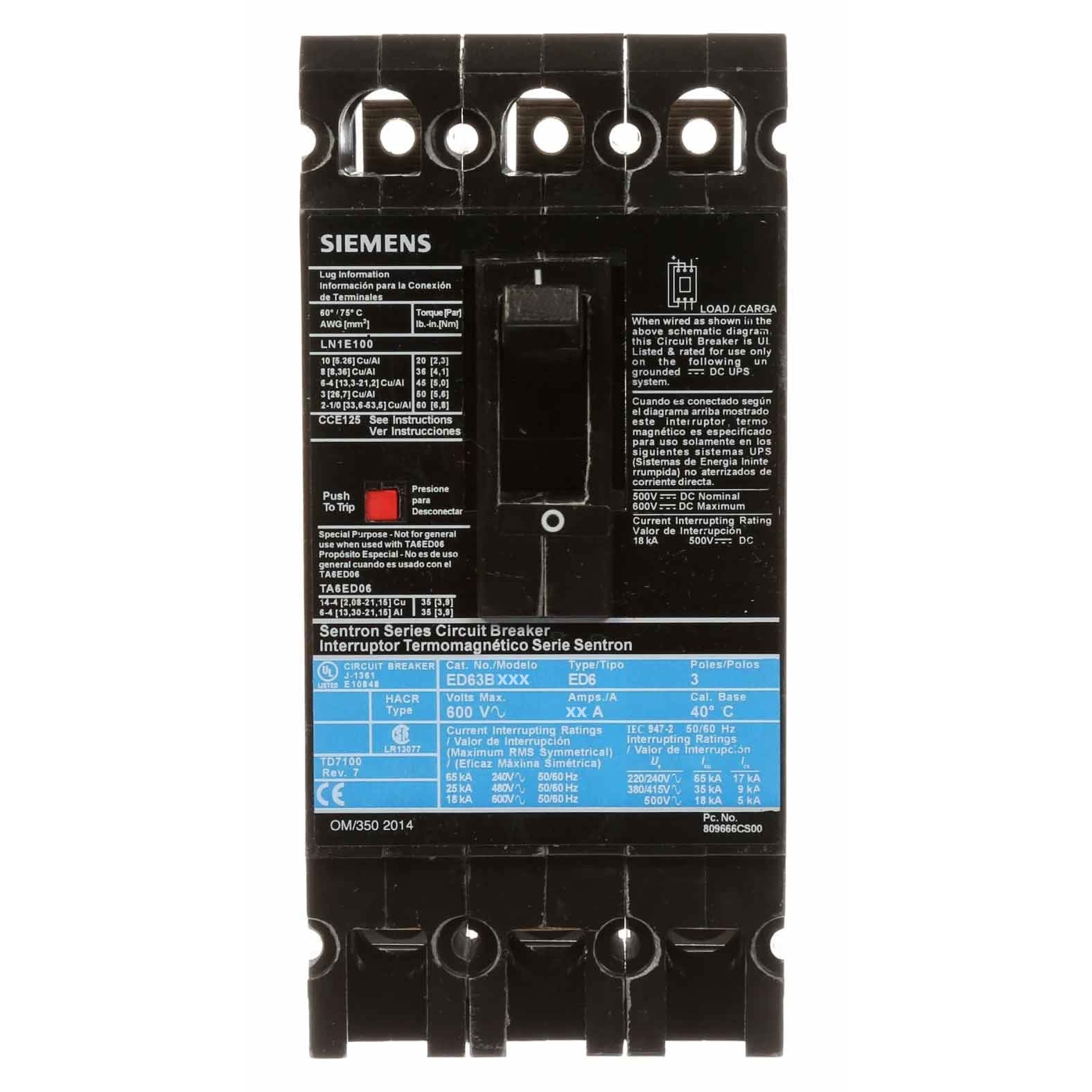

Siemens ED63B110 - Molded Case Circuit Breaker, 110A, 600V AC
Siemens ED63B110 - Molded Case Circuit Breaker, 110A, 600V AC

Siemens ED63B110 - Molded Case Circuit Breaker, 110A, 600V AC

Siemens
Price
Save $6,911.02
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens ED63B110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 110A continuous current rating and a 600V AC voltage rating, housed within a compact ED frame with bolt-on connections and dimensions of 6.693" x 5.906" x 3.1016". The breaker is IEC certified and UL listed, ensuring compliance with international and North American safety standards, making it suitable for industrial power distribution, panelboards, and motor control applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Dimensions: 6.693" H x 5.906" W x 3.1016" D (170mm x 150mm x 78.8mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial Power Distribution, Panelboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • AIC rating: 25kA @ 480V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 3 to 3/0 (Copper), AWG 1 to 2/0 (Aluminum)
  • Weight: 3.75 lb (1.7 kg)
  • Mounting: Panel Mount
  • Certification: IEC, UL
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209794
  • GTIN: 00783643209794
